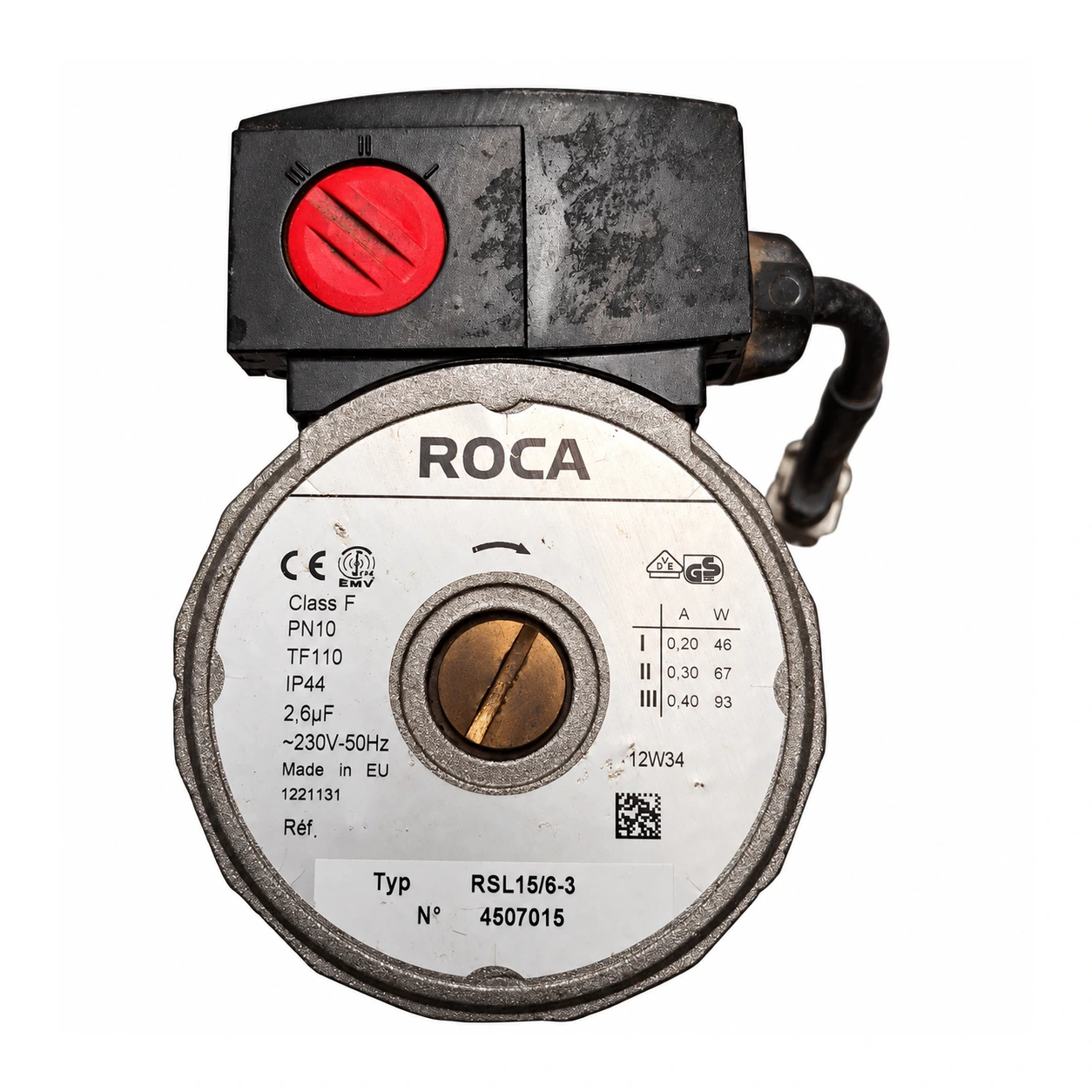

Circulating Pump Baxi Roca RSL15/6-3 · 4507015 For R 30-30 F
It pumps water through the hydraulic circuit of the boiler. This unit is a three-speed circulator (46, 67, and 93 W) at 230 V · 50 Hz.
- Type of part
- Baxi Roca
- Status
- Refurbished
- Catalogue reference
- 4507015
- Warranty
- 1 year
VAT included OUT OF STOCK
Boilers compatible with reference 4507015
Roca with reference 4507015. A confirmed compatibility: Baxi Roca R 30-30 F. There are 3 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Roca R 30-30 F | Baxi Roca | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Roca R-30/30 (GN and GP) | Baxi Roca | Unconfirmed |
|---|---|---|
| Roca R-30/30 P (GN and GP) | Baxi Roca | Unconfirmed |
| Baxi Roca R-30/30 FP (GN and GP) | Baxi Roca | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 4507015 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Look for the pump type RSL15/6-3 and the number 4507015; this unit also marks 1221131 and 12W34.
- Compare the three marked speeds: 0.20 A · 46 W, 0.30 A · 67 W, and 0.40 A · 93 W, at 230 V · 50 Hz.
- To confirm: Measure the distance between the outlets: Wilo and 130 mm for the type RSL15/6-3.
- Do not confuse it with the 7803038, as that one is a substitute for the 122070270: compare measurements before replacing it. The Wilo PICO-STG 15/1-7 (4215540) is a different type: 38 W according to the Wilo table.
- If they match, call us at 911 17 77 77 with the model of your boiler.
Roca 4507015
- Catalogue reference
- 4507015
- Uniclima internal SKU
- BOM007
- Brand
- Baxi Roca
- Type of part
- Baxi Roca
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Insulation class
- F
- Nominal pressure
- PN10
- Indicated temperature
- TF110
- Degree of protection
- IP44
- Condenser
- 2.6 µF
- Power supply
- 230 V~; frequency: 50 Hz
- Level I
- 0.20 A; 46 W
- Level II
- 0.30 A; 67 W
- Level III
- 0.40 A; 93 W
- Marked type
- RSL15/6-3
- Marked number
- 4507015
- Additional code marked
- 1221131
- Additional marking
- 12W34
- Hydraulic body marking
- 3/8
- Marked origin
- Made in EU
- Conformity markings
- CE; VDE-EMV; GS
- Additional data — Reference 122070270 (R-30/30)
- Bomba de 2 vías y 3 velocidades ·
- Additional data — Wilo technical sheet for type RSL15/6-3 Ku CRF 12
- 130 mm between connections · G 1 · PN 10 · 1 phase · Wilo
- Additional data — Distance between outlets
- 130 mm
- Additional data — Speeds
- 3 · 46 W / 67 W / 93 W ·
- Additional data — Pressure · temperature
- PN10 · TF110 ·
- Additional data — Protection · class
- IP44 · F ·
- Identification — Marked designation
- RSL15/6-3
- Identification — Marked code
- 4507015
- Identification — Marked code
- 1221131
- Technical sheet: Insulation class
- F
- Nominal pressure
- PN10
- Technical sheet: Indicated temperature
- TF110
- Technical sheet: Degree of protection
- IP44
- Technical sheet: Condenser
- 2.6 µF
- Technical sheet: Power supply
- 230 V~; frequency: 50 Hz
- Technical sheet: Level I
- 0.20 A; 46 W
- Technical sheet: Level II
- 0.30 A; 67 W
- Technical sheet: Level III
- 0.40 A; 93 W
- Technical sheet: Marked type
- RSL15/6-3
- Technical sheet: marked number
- 4507015
- Technical sheet: Additional marked code
- 1221131
- Technical sheet: Additional marking
- 12W34
- Technical sheet: Marking of the hydraulic body
- 3/8
- Technical sheet: Marked origin
- Made in EU
- Marking of conformity
- CE; VDE-EMV; GS
Before purchasing
- To be confirmed: Roca R-30/30 (GN y GP), y dan la 122070270 para R30/30 o R30; cita además RSL15/6-3; ninguna cita 4507015
- To confirm: Baxi Roca R-30/30 P (GN and GP) — 1 origin for 122070270; does not mention 4507015.
- To confirm: Baxi Roca R-30/30 FP (GN and GP) — 1 origin by 122070270; does not mention 4507015.
- Do not confuse: 7803038 — Baxi Roca 3-speed pump that serves as a substitute for 122070270 and is ready for R30/30 and RS20/20F — It is another code; without additional confirmation, it is not linked to 4507015 or RSL15/6-3. Compare measurements before replacing it.
- Do not confuse: 4215540 — Wilo PICO-STG 15/1-7, the substitute that Wilo indicates for its RSL15/6-3 Ku CRF 12 ("Fits without modification") — It is another type: 1~230 V and 38 W according to the Wilo table; without additional confirmation, it is not linked to 4507015 or to the R 30-30 F.
- Ninguna web abierta cita 4507015. Solo, con vendedor identificado, une la RSL15/6-3 con la 122070270 y con las mismas cifras; de sin vendedor identificado también la une. La ficha de Wilo no cita Roca. Compara el tipo y las potencias.
- To be confirmed: Taller: R 30-30 F. externo une la RSL15/6-3 con Roca; Wilo documenta un tipo homónimo (4530527) sin citar Roca ni 4507015. italiana da 42/63/86 W al 4530527. No hemos encontrado despiece oficial de Roca (catálogo Baxi bloqueado; buscador de Roca no usable).
Frequently asked questions: Baxi Roca 4507015
Where is the code for this pump and what should I compare?
In the pump, the type RSL15/6-3 and the number 4507015 are listed; this unit also shows 1221131 and 12W34. Compare the complete type and the three power ratings (0.20 A · 46 W, 0.30 A · 67 W, and 0.40 A · 93 W, at 230 V), not just the number.
Is it compatible with my Baxi Roca R 30-30 F?
Yes. Confirmation registered: this pump for the Baxi Roca R 30-30 F. Additionally, the Baxi Roca 122070270 pump is for the R-30/30F (GN and GP). No open website mentions the 4507015, and the manual for the R-30/30 that we have opened does not include the pump code.
What is reference 122070270 and is it the same as 4507015?
Es la referencia Roca que dan para la bomba de las R30/30. Solo, con vendedor identificado, la une a la RSL15/6-3, con las mismas cifras que esta bomba (46, 67 y 93 W, PN10, TF110, IP44, clase F); de de vendedor sin identificar también la une en su título y puede copiar el mismo texto. Ninguna cita 4507015: queda por confirmar.
Is there a technical sheet published for the type RSL15/6-3?
Wilo publishes the RSL15/6-3 Ku CRF 12 (article 4530527): 130 mm between connections, G 1, PN 10 and single phase. It does not mention Baxi Roca or 4507015, so we do not claim that this is the same pump. The Italian version provides different power ratings (42, 63, and 86 W) for the same article 4530527; this unit shows 46, 67, and 93 W. The hydraulic body of the unit is marked "3/8": compare the connections before ordering it.
Is it compatible with other Roca R-30/30 (without F, P, or FP)?
solo ha confirmado la R 30-30 F. da la 122070270 también para R-30/30, R-30/30 P y R-30/30 FP (GN y GP); y Designación registrada: R30/30, R30 o R30.30 sin distinguir variantes. Ninguna cita 4507015. Envíanos desde Contacto una foto de la etiqueta de tu bomba y de la placa de la caldera, o llama al 911 17 77 77.
Can I replace it with another pump, such as 7803038?
We have not verified it. It lists 7803038 as a substitute for 122070270 and the list for R30/30 and RS20/20F; Wilo lists PICO-STG 15/1-7 (4215540) as a substitute for its RSL15/6-3 Ku CRF 12 ("Fits without modification"). These are other codes and none mention 4507015: compare dimensions, spacing, and electrical connection.
Who should install it?
A qualified technician: the pump operates at 230 V and is part of the water circuit of the boiler. Before installing it, check the distance between the flanges (130 mm according to Wilo) and the electrical connection.
What is the reference for this pump?
4507015 · RSL15/6-3
What power supply does it need?
230 V at 50 Hz.
