Saunier Duval SDZ-2/DC E-V Circulating Pump – Ref. 0020047180

boilers Saunier Duval compatible with reference 0020047180

Saunier Duval with reference 0020047180. Four confirmed compatibilities: Isomax F35 H-MOD and Isotwin F30 H-MOD 35. There are another 7 models that we are still verifying.

Proven compatibility

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if reference 0020047180 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

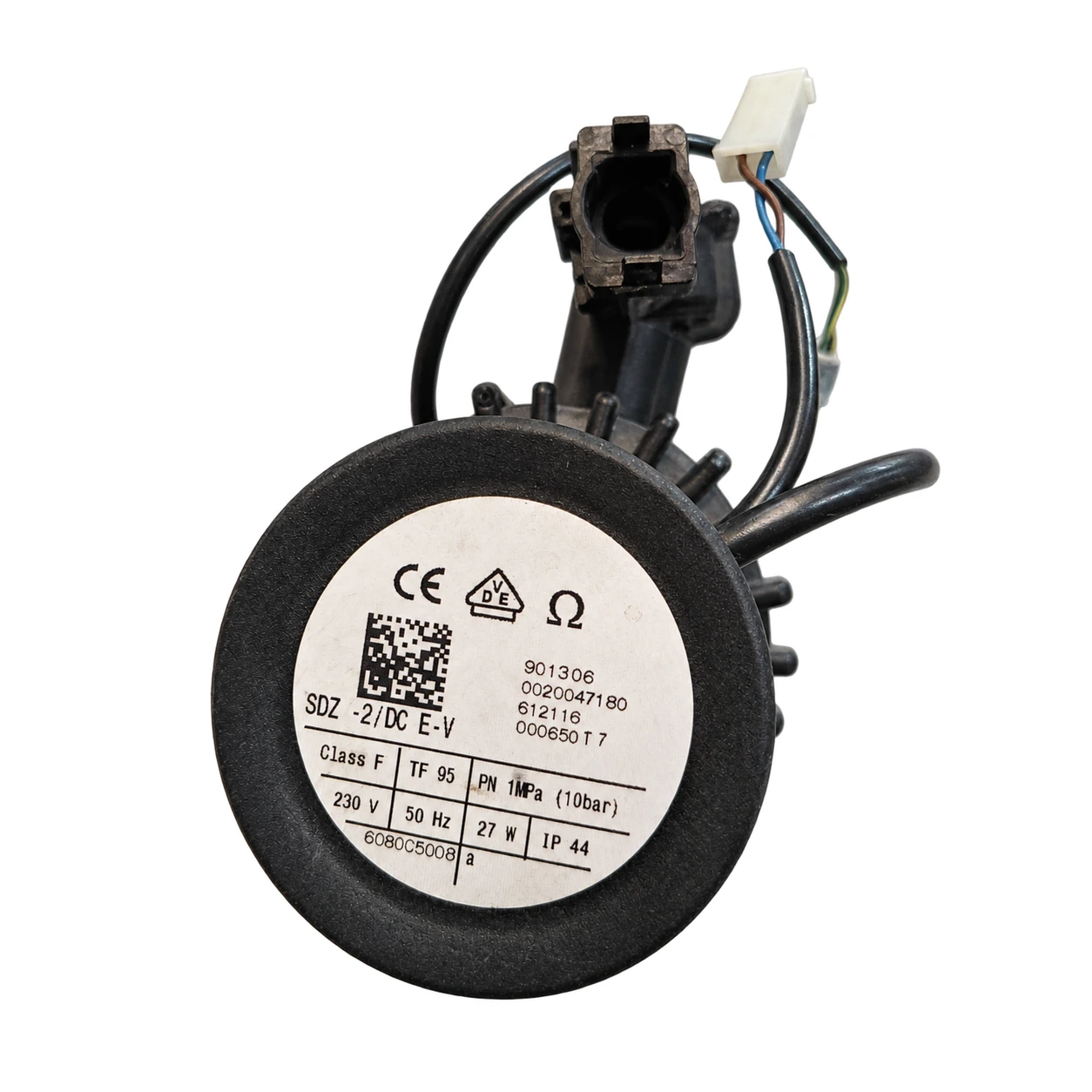

1. Look for the model SDZ-2/DC E-V and the code 0020047180 on your pump's label.
2. If your pump has 0020075439, 0020111412, 0020247049, or 0020016182, also compare the model SDZ-2/DC E-V and the 612116: these are codes to be confirmed.
3. Check that its label indicates 230 V, 50 Hz, and 27 W.
4. If your boiler is an Isomax F35 H-MOD, Isotwin F30 H-MOD 35, or Isofast 21 Condens F30-B/1 or F35-B/1, this pump has already been confirmed. For another model, call 911 17 77 77 or send us a photo of the label and the PCB.

Symptoms that require diagnosis in the Saunier Duval 0020047180

Common symptoms and faults

• 01

  The hot water comes out lukewarm or takes a long time to arrive.

  Cause: If the heating is working well, a technician should check if the pump starts when a hot water tap is opened.

• 02

  The hot water runs out quickly.

  Cause: Check if the pump is rotating and receiving power while requesting hot water.

• 03

  The radiators are heating, but the tap water is not.

  Cause: Compare the marking on your pump before checking it: its use (DHW or heating) is to be confirmed.

• 04

  Noise or vibration when requesting hot water.

  Cause: It could be air or wear in the pump. Have a technician check it before replacing it.

• 05

  Water under the pump or at the base of the boiler.

  Cause: Dry the area and check if it starts to leak again from the pump body.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical sheet: Saunier Duval 0020047180

Catalogue reference

0020047180

Uniclima internal SKU

MBSIF35HMOD

Brand

Saunier Duval

Type of part

Saunier Duval

Units in stock

0 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Marked supply

230 V, 50 Hz

Rated power

27 W

Marked class

F

Set temperature

TF95

Marked pressure

PN 1 MPa (10 bar)

Marked protection

IP44

Inventory — Type of spare part

Pumps

Inventory — Application indicated in inventory

ISOTWIN F30 H-MOD 35 ISOFAST 21 CONDENS F35-B/1 ISOMAX F35 H-MOD ISOFAST 21 CONDENS F30-B/1

Inventory — Indicated brand

Saunier Duval

Inventory — Marked code

612116; 6080C5008 a

Verified data — Model

SDZ-2/DC E-V

Verified data — Code on the label

0020047180

Verified data — Power supply

230 V · 50 Hz

Verified data — Power

27 W

Verified data — Protection

IP44 · class F

Verified data — Water temperature

Up to 95 °C (TF95)

Verified data — Nominal pressure

PN 1 MPa (10 bar)

Verified data — Marked

CE

Identification — Marked designation

SDZ-2/DC E-V

Identification — Marked code

0020047180

Identification — Marked code

612116

Identification — Marked code

6080C5008 a

Technical sheet: Marked power supply

230 V, 50 Hz

Technical sheet: Rated power

27 W

Technical sheet: Marked class

F

Technical sheet: Marked temperature

TF95

Technical sheet: Marked pressure

PN 1 MPa (10 bar)

Technical sheet: Marked protection

IP44

Inventory data — Type of spare part

Pumps

Inventory data — Application indicated in inventory

ISOTWIN F30 H-MOD 35

Inventory data — Application indicated in inventory

ISOFAST 21 CONDENS F35-B/1

Inventory data — Application indicated in inventory

ISOMAX F35 H-MOD

Inventory data — Application indicated in inventory

ISOFAST 21 CONDENS F30-B/1

Inventory data — Indicated brand

Saunier Duval

Inventory data — Marked code

612116; 6080C5008 a

Pending applications to verify

• Isomax F 35 H-MOD (almacén). la liga a 0020111412 (título y artículo); al motor SDZ-2/DC E-V con otro código (0020016182). solo extracto. • Isotwin F 30 H-MOD (almacén: «F30 H-MOD 35»): ( como «Isotwin F 30 E H MOD»). El «35» no aparece en sin confirmación adicional. • Isofast 21 Condens F30-B/1 (almacén): («Isofast 21 Condens F 30-B», para 0020016182). Uniclima le asigna otra bomba (0020084525), sin confirmar. • Isofast 21 Condens F35-B/1 (almacén). • Isomax Condens 35-B (H-P): . • Isotwin C 30 (C 30 E ): . • Isomax C 30: . • Isotwin C 25 E, Isotwin F 25 E H-MOD e Isofast 21 Condens F 25: . avisa de que Isomax e Isofast son calderas distintas: lo que vale para una no vale para la otra.

Registered equivalents and substitutions

Saunier Duval Isotwin F30E H-MOD breakdown, p.14/34: 0020048256 (domestic water pump motor + nut) replaced by 0020111412 (domestic water pump). Distinguish casing + non-return valve 0020048257. Documented substitution confirmed between those references. The open technical sheet links the motor marking 0020047180 / 612116 with the assembly 0020111412 / 0020048256. It is a commercial bridge, not a manufacturer confirmation of each revision. 0020016182 and 0010030644 of 50W are not considered equivalent.

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval Duval Isomax C 30 Manual (PDF) Document © Saunier Duval, provided as a technical reference.
