Wilo HB 15/7-3 Saunier Duval – Ref. 0020016474 · 4516723
Refurbished Saunier Duval Saunier Duval Wilo

Wilo HB 15/7-3 Saunier Duval – Ref. 0020016474 · 4516723

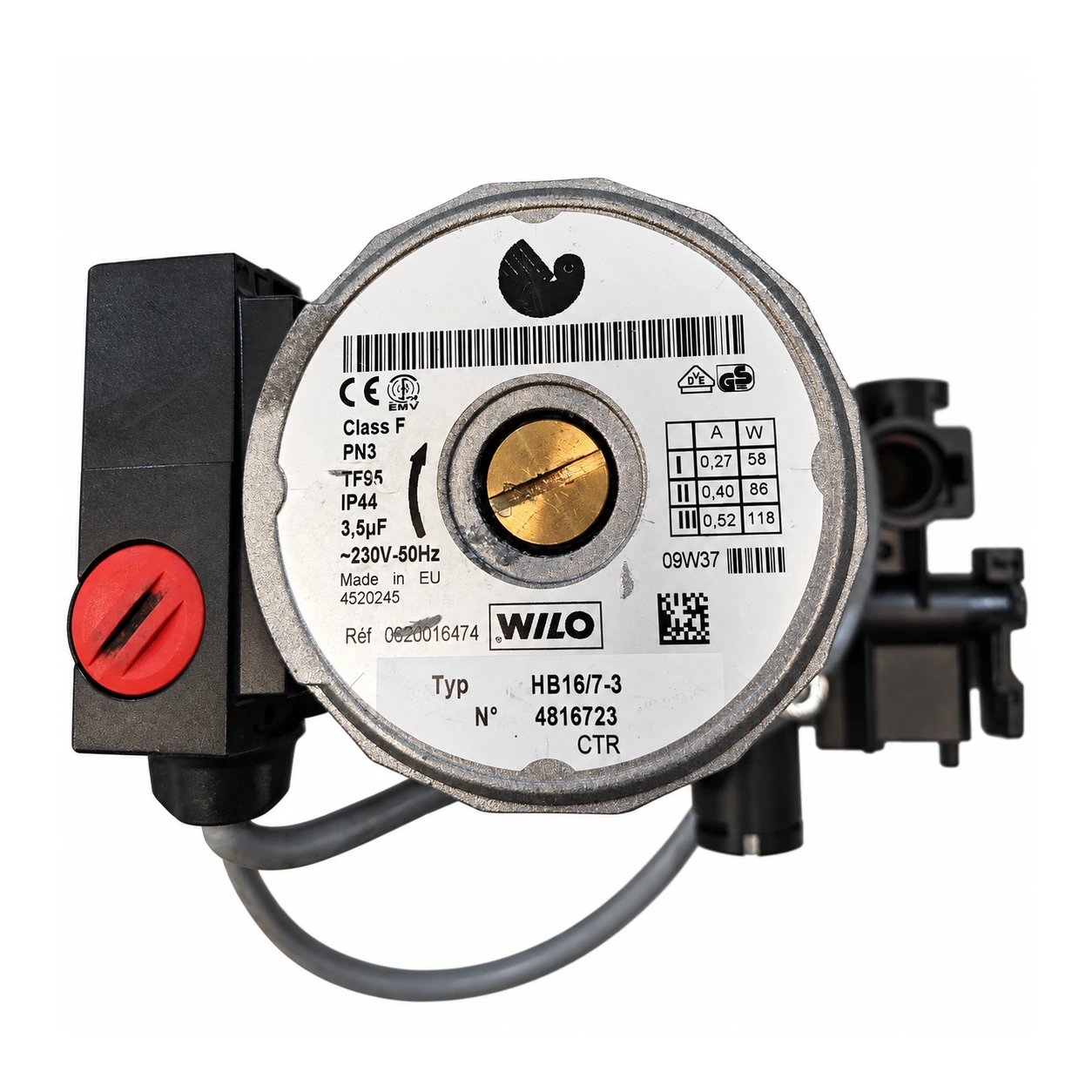

Bomba Wilo HB 15/7-3 que mueve el agua del circuito de calefacción. Se utiliza en varias calderas Saunier Duval como motor de bomba; la referencia depende del modelo concreto.

Type of part
Saunier Duval
Status
Refurbished
Catalogue reference
4516723
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

Boilers Saunier Duval compatible with reference 4516723

Saunier Duval with reference 4516723. Four confirmed compatibilities: Isofast F30 E H-MOD and Isofast Condens F35 E. There are another 6 models that we are still verifying.

Proven compatibility

Boiler modelFamilyVerification
Saunier Duval Isofast F30 E H-MODSaunier DuvalContrasted
Saunier Duval Isofast Condens F35 ESaunier DuvalContrasted
Saunier Duval Isomax F35 H-MODSaunier DuvalContrasted
Saunier Duval Isomax Condens F35ESaunier DuvalContrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Saunier Duval Isofast F 35 E H-MODSaunier DuvalUnconfirmed
Saunier Duval Isosplit F 35 E H-MODSaunier DuvalUnconfirmed
Saunier Duval Isosplit Condens F 30 E, Isosplit C 35 E and Isotwin Condens F 30 ESaunier DuvalUnconfirmed
Saunier Duval Isosplit F 35 E and Isosplit Condens F 35 ESaunier DuvalUnconfirmed
Saunier Duval Isofast Condens F 30 E and Isofast C 35 E-ASaunier DuvalUnconfirmed
Saunier Duval Isomax F 35 E and IsocondensSaunier DuvalUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if reference 4516723 is the part for your boiler?

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Look at the motor label: it should say Wilo HB 15/7-3 and the number 4516723.
  2. Check the 3 speeds (0.27 A / 58 W, 0.40 A / 86 W, and 0.52 A / 118 W) and the 3.5 µF capacitor.
  3. Look for the Saunier Duval code engraved on your pump (0020016474 or, if it doesn't match, S10240, to be confirmed) and the exact model on your boiler's PCB.
  4. If your boiler is one of the four listed in the technical sheet, this pump has already been confirmed. If it is another one, please call us at 911 17 77 77 or write to us from Contact with photos of the pump and PCB.

More circulation pumps · Saunier Duval boiler repair

Diagnosis and fault codes

Symptoms that require diagnosis in the Saunier Duval 4516723

Common symptoms and faults

  • 01

    The heating takes time to warm up or some radiator remains cold.

    Cause: Check the speed of the selector: I is the slowest. Also, make sure that the valves are open.

  • 02

    The pump does not start, especially after the summer.

    Cause: The rotor may be stuck after a long shutdown. A technician should check, with the boiler turned off, if the shaft rotates freely.

  • 03

    Moisture or dripping under the pump.

    Cause: Dry the area and check when cold if water comes out again from the joint of the motor or a fitting.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Saunier Duval 4516723

Catalogue reference
4516723
Uniclima internal SKU
MCIF35EHMOD
Brand
Saunier Duval
Type of part
Saunier Duval
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Marked supply
230 V, 50 Hz
Marked capacitor
3.5 uF
Current / power I
0.27 A / 58 W
Current / power II
0.40 A / 86 W
Current / power III
0.52 A / 118 W
Marked pressure
PN3
Marked protection
IP44
Marked class
F
Date/batch marking without interpretation
09W37
Inventory — Indicated model
HB16/7-3
Inventory — Indicated reference
0022016474
Inventory — Type of spare part
Pumps
Inventory — Insulation class
Class F
Inventory — Condenser
3.5 μF
Inventory — Food
230 V~; frequency: 50 Hz
Inventory — Application indicated in inventory
ISOFAST F30 E H-MOD ISOFAST CONDENS F35 E ISOMAX F35 H-MOD ISOMAX CONDENS F35E
Inventory — Marked code
4516723; 4520245
Verified data — Pump
Wilo HB 15/7-3
Verified data — Speed I
58 W · 0.27 A
Verified data — Speed II
86 W · 0.40 A
Verified data — Speed III
118 W · 0.52 A
Verified data — Power supply
230 V · 50 Hz
Verified data — Condenser
3.5 µF
Verified data — Protection
IP44 · insulation class F
Verified data — Nominal pressure
PN3 (3 bar)
Verified data — Manufacturing
EU
Verified data — Other marked
4520245 · CTR · 09W37
Identification — Marked designation
HB15/7-3
Identification — Marked code
4516723
Identification — Marked code
4520245
Technical sheet: Marked power supply
230 V, 50 Hz
Technical sheet: Marked capacitor
3.5 uF
Technical sheet: Current / power I
0.27 A / 58 W
Technical sheet: Current / power II
0.40 A / 86 W
Technical sheet: Current / power III
0.52 A / 118 W
Technical sheet: Marked pressure
PN3
Technical sheet: Marked protection
IP44
Technical sheet: Marked class
F
Technical sheet: Date/batch marking without interpretation
09W37
Inventory data — Indicated model
HB16/7-3
Inventory data — Indicated reference
0022016474
Inventory data — Type of spare part
Pumps
Inventory data — Insulation class
Class F
Inventory data — Condenser
3.5 μF
Inventory data — Power supply
230 V~; frequency: 50 Hz
Inventory data — Application indicated in inventory
ISOFAST F30 E H-MOD
Inventory data — Application indicated in inventory
ISOFAST CONDENS F35 E
Inventory data — Application indicated in inventory
ISOMAX F35 H-MOD
Inventory data — Application indicated in inventory
ISOMAX CONDENS F35E
Inventory data — Marked code
4516723; 4520245
Pending applications to verify
• Isofast F 30 E H-MOD (almacén): . Sus instrucciones oficiales citan un circulador de 3 velocidades, sin nombrarlo. • Isofast F 35 E H-MOD (no anotada por el almacén): . No es la Isofast Condens F 35 E. • Isomax Condens F 35 E (almacén): (despiece oficial «avant 2010» ), los dos con S10240, no con 0020016474. • Isofast Condens F 35 E (almacén): (S10240). • Isofast Condens F 30 E e Isofast C 35 E-A: (S10240). • Isomax F 35 H-MOD (almacén). Sus instrucciones oficiales no nombran las bombas. Uniclima le asigna otra bomba (0020036839), sin confirmar. Revisar con el despiece. • Isosplit C 35 E, F 35 E, F 35 E H-MOD, Condens F 30 E y Condens F 35 E · Isotwin Condens F 30 E: (solo extractos de búsqueda, con S1024000 o S10240). • NO CONFUNDIR: la Isofast F 35 E (sin H-MOD ni Condens) lleva en su despiece oficial otra bomba (57325 «Pompe»). La Isomax F28 E lleva otra variante HB 15/7-3 (S1049900).
Registered equivalents and substitutions
No confirmed equivalents for 0020016474. Other Saunier Duval codes for HB 15/7-3 motors, not linked to this part: • S10240: official breakdown Isomax Condens F 35 E "before 2010" ("Pump motor HB15/7-3"). • S1049900: for Isomax F28 E and Isotwin. • S1024100: only Uniclima. • S1024000 and 0010030644 + 0010032778: only search extracts without opening. Wilo lists 4533636 as a substitute for the HB15/7-3 FSL 9 SDPR (4512904), another P/N; not verified for this part.
Before purchasing
  • To confirm: Isofast F 35 E H-MOD: and (S10240) · the list (4516723), without proof of being another source.
  • To confirm: Isosplit F 35 E H-MOD: official catalog (S10240) and (S1024000)
  • To confirm: Isosplit Condens F 30 E, Isosplit C 35 E, and Isotwin Condens F 30 E: and (motor HB15/7-3)
  • To confirm: Isosplit F 35 E and Isosplit Condens F 35 E: (S1024000)
  • To confirm: Isofast Condens F 30 E and Isofast C 35 E-A: with the code S10240
  • To confirm: Isomax F 35 E and Isocondens: (HB15/7-3 S10240)
  • Not compatible or excluded: Isofast F 35 E (without H-MOD or Condens) — It uses another one: 05732500 (57325 in its official parts list); for S10240, but send the parts list.
  • Do not confuse: Wilo 4512904 — HB15/7-3 FSL 9 SDPR, according to Wilo — Another Wilo number: not verified as equivalent
  • Registered confirmation: model HB15/7-3, numbers 4516723 and 4520245, reference 0020016474, and the 4 boilers. Outside the workshop, connect 4516723 with the HB 15/7-3 and the official breakdowns list S10240 as the pump motor, to be confirmed in this unit.
Frequently Asked Questions

Frequently asked questions: saunier duval 4516723

Is it suitable for my boiler?
Yes, if it is an Isofast F30 E H-MOD, Isofast Condens F35 E, Isomax F35 H-MOD, or Isomax Condens F35E: Confirmed: for those four. If it is another one, call us at 911 17 77 77 or write to us from Contact with photos of your PCB and pump.
What reference does Saunier Duval have?
Registered reference 0020016474, previous 0022016474, Wilo number 4516723 and marked 4520245. 0020048255 appears for another application and is not automatically interchangeable. S10240 is associated with the motor HB15/7-3 or "Motor pump 50 W" in other versions; its exact correspondence with this unit must be confirmed.
How many speeds does it have?
Three, according to its label: 58 W (0.27 A), 86 W (0.40 A), and 118 W (0.52 A). The instructions for the Isofast H-MOD provide 3 speeds, factory set to II. The catalog for the Isofast Condens F 35 E lists the S10240 as "Motor pump 50 W."
Is it the motor or the complete pump?
In the official breakdown from Saunier Duval, the HB15/7-3 is listed as "pump motor"; in the catalog for the Isosplit F 35 E H-MOD, apart from the plastic pump block (0020037988), it is sold as "motor only." What does it include?
What other boilers use this motor?
In addition to the four from the workshop, with 1 or (to be confirmed): the Isofast F 35 E H-MOD, several Isosplit, the Isotwin Condens F 30 E, the Isofast Condens F 30 E and C 35 E-A, and the Isomax F 35 E. The Isofast F 35 E without H-MOD or Condens has a different pump, the 57325, according to its official parts list.
Is there a reference that replaces S10240?
There is no data from the manufacturer. (and another) they provide 0010030644, high-efficiency pump, as a substitute for the old S102400 / S1024000. Compare it with your code.
What readable identification does it have?
Wilo HB15/7-3 and PCB number 4516723.
What power ratings does it offer?
58, 86 and 118 W at speeds I, II and III.
