Grundfos UP 15-60/SD pump Saunier Duval Isofast F 35 E / F 35 E1 – Ref. 05732500

Bomba de calefacción para Saunier Duval Isofast F 35 E y F 35 E1, con designación 57325 y referencia completa 05732500.

Type of part: Saunier Duval
Status: Refurbished
internal SKU: BCIF35E1
Warranty: 1 year

VAT included OUT OF STOCK

Compatibility

Compatible Saunier Duval boilers

Saunier Duval. Four confirmed compatibilities: Isofast F 35 E and Isofast F 35 E1. There are another 5 models that we are still verifying.

Proven compatibility

Boiler model	Family	Verification
Saunier Duval Isofast F 35 E	Saunier Duval	Contrasted
Saunier Duval Isofast F 35 E1	Saunier Duval	Contrasted
Saunier Duval Isotwin F 28 EA	Saunier Duval	Contrasted
Saunier Duval Isomax F28 E2	Saunier Duval	Contrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Saunier Duval Isofast C 35 E and C 35 E1	Saunier Duval	Unconfirmed
Saunier Duval Isotwin C 28 EA	Saunier Duval	Unconfirmed
Saunier Duval Isomax F28 E205 and C28 E205	Saunier Duval	Unconfirmed
Saunier Duval Isofast C 31 E, C 31 E1, F 31 E and F 31 E1	Saunier Duval	Unconfirmed
Saunier Duval Isotwin F 24 EA	Saunier Duval	Unconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

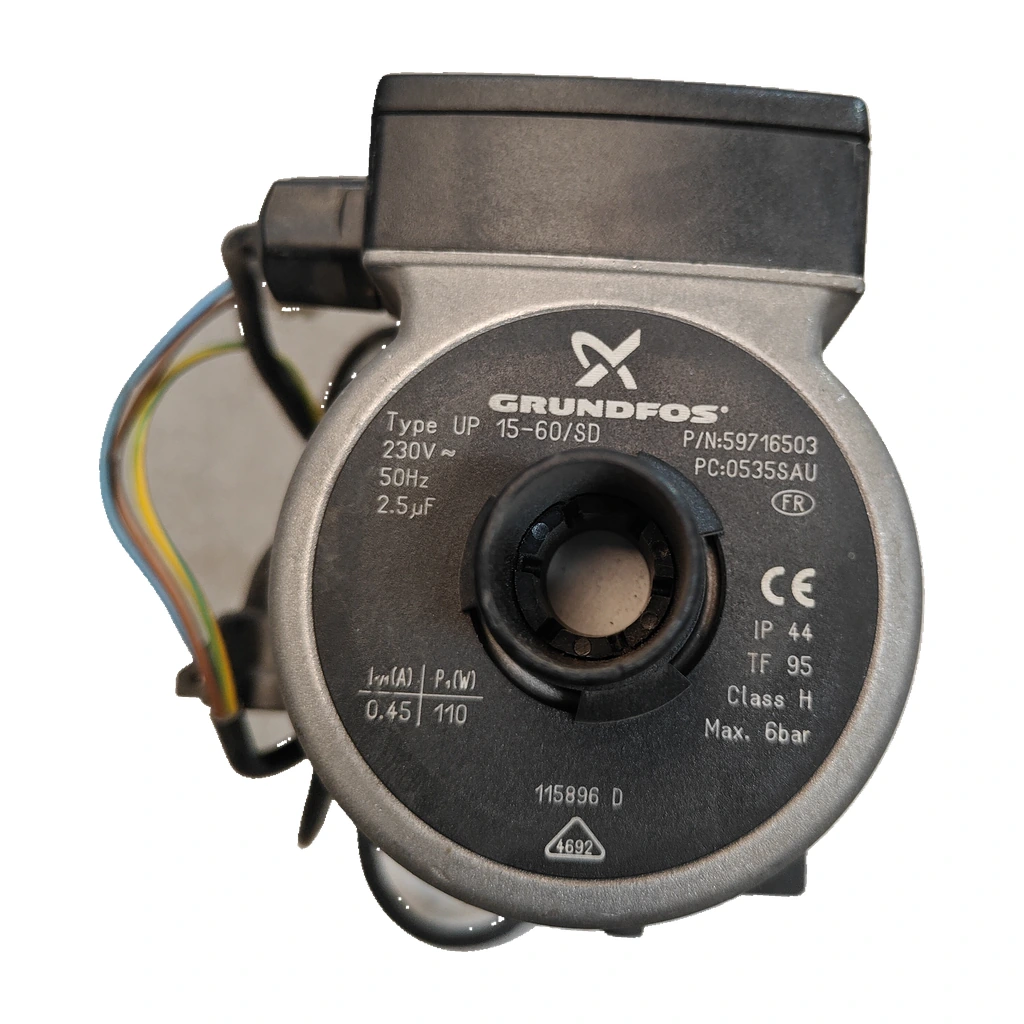

The motor label says "Grundfos UP 15-60/SD" (P/N 59716503).
Plate data: 230 V, 0.45 A, 110 W, capacitor 2.5 µF.
It is not the UP 15-40/SD (P/N 59714528), which is another pump.
Any questions? Send us a photo of the label and the PCB of your boiler from Contact.

Diagnosis and fault codes

Symptoms that require diagnosis in the Saunier Duval.

Common symptoms and faults

01
The boiler works, but the heating does not heat properly.
Cause: Check that the valves are open and, if the pump has a selector, that it is not set to minimum.
02
Noise or vibration in the pump body.
Cause: There may be air in the circuit: bleed the system until water comes out.
03
Air keeps entering even after you bleed the radiators.
Cause: Check the pump connections and the circuit pressure.
04
Water under the pump.
Cause: Locate whether it comes out of the axis or from the joints.
05
The pump does not start after the summer or only hums.
Cause: The rotor may be stuck.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Saunier Duval

Uniclima internal SKU: BCIF35E1
Brand: Saunier Duval
Type of part: Saunier Duval
Units in stock: 0 units
Status: Refurbished
Warranty: 1 year
Shipping: Delivery time shown at checkout
Return: 14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Commercial reference: 59716503
PC code: 0535SAU
Additional marked code: 115896 D
Supply voltage: 230 V~
Frequency: 50 Hz
Condenser: 2.5 μF
Current I1: 0.45 A
Absorbed power P1: 110 W
Degree of protection: IP44
Thermal class: TF95
Insulation class: H
Maximum pressure: 6 bar
Marked on PCB: CE; FR
Triangular marking: 4692
Source of additional data: Información declarada; referencias auxiliares y aplicaciones sin equivalencia del fabricante acreditada.
Inventory — Marked code: 0535SAU; 115896 D
Inventory — Additional printed markings on PCB: CE; FR; marked triangle 4692
Verified data — Pump: Grundfos UP 15-60/SD
Verified data — Power: 110 W · 0.45 A
Verified data — Power supply: 230 V · 50 Hz
Verified data — Condenser: 2.5 µF
Verified data — Protection: IP44 · class H
Verified data — Water temperature: Up to 95 °C (TF95)
Verified data — Maximum pressure: 6 bar
Verified data — Bleed valve: Not verified
Verified data — Speeds: No verified data; check it on your pump.
Aplicaciones pendientes de comprobar: • Isofast C 35 E y C 35 E1: (lista de ); no hay despiece oficial localizado. • Isotwin F 28 EA y C 28 EA: 1 origen (lista ). • Isomax F28 E205 y C28 E205: 1 origen. • CONFLICTO Isomax F 28 E2: la lista oficial de Saunier Duval le asigna otra bomba (05720700). Revisar la placa. Consulta 24/10/2026 · 1 proveedor; pendiente de confirmar: Isofast F 35 E1; Themis 23 E (CE). Declaración comercial para su ficha «Bomba Circuladora Grundfos (UP 15-60/SD) P/N:59716503», no certificación de la unidad. Confirmar referencia OEM, revisión, configuración y variante de equipo antes de usarla.: Catálogo oficial Vaillant, p.41:05732500 corresponde a IsofastC35E/C35E1 yF35E/F35E1; también IsotwinC28EA/F28EA. Para IsomaxC28E2/F28E2 indica DESPUÉS del número0500612151; no universalizar E2. La foto muestraP/N59716503, no05732500; conservar el vínculo documental previo y verificar variante/serie.
Equivalencias y sustituciones registradas: Saunier Duval 05732500 = 57325 («57325 Pompe» en el despiece oficial; misma convención que el resto de códigos de esa lista). No confundir con la Grundfos UP 15-40/SD (P/N 59714528, 95 W, 0,41 A, 2 µF), que es la 05720700. Sin sustituciones documentadas.

Before purchasing

To be confirmed: Isofast C 35 E y C 35 E1 — C 35 E: (posterior a 1993); C 35 E1:; sin despiece oficial
Por confirmar: Isotwin C 28 EA; sin despiece oficial
To be confirmed: Isomax F28 E205 y C28 E205 — con este nombre. lista «Isomax F 28 E2 de05» e «Isomax C 28 E2 de05» con el 57325; no afirmamos que sean las mismas calderas
To be confirmed: Isofast C 31 E, C 31 E1, F 31 E y F 31 E1: (05732500 / 057325); sin despiece oficial
Por confirmar: Isotwin F 24 EA: (05732500 / 057325); sin despiece oficial
Do not confuse: 59714528 — Grundfos UP 15-40/SD — It is another pump; the one for this part is the UP 15-60/SD, P/N 59716503.
To be confirmed: da el 05732500 a una bomba de la Glowworm Xtrafast 120 (obsoleta, fabricante Glowworm) y otra a una Saunier Duval XTRAFAST 120 COMBI NG; no las contamos como compatibilidad. Para Saunier Duval, el despiece oficial lo da a las Isofast F 35 E y F 35 E1. Identifica la tuya por la etiqueta: UP 15-60/SD, P/N 59716503.
Confirmación registrada: el modelo UP 15-60/SD, el P/N 59716503 y las calderas Isofast F 35 E1, Isotwin F 28 EA e Isomax F28 E2. El código 05732500 / 57325 está contrastado en (despiece oficial, ); en cambio, da el 05732500 a una bomba Glowworm Xtrafast 120 y a una Saunier Duval XTRAFAST 120 COMBI NG (ver aviso de referencias); no las contamos como compatibilidad.

Frequently Asked Questions

Frequently asked questions: Saunier Duval

What pump does the Saunier Duval Isofast F 35 E1 use?

La Grundfos UP 15-60/SD, referencia 05732500 («57325 Pompe» en el despiece oficial). Confirmada: para esa caldera, y y la listan igual.

Is it the same as the UP 15-40/SD (59714528)?

No. The UP 15-40/SD (59714528) is a different pump. The one for this part is the UP 15-60/SD, P/N 59716503, which is the one that has the label.

Is it compatible with the Isofast C 35 E?

Todavía no está confirmada. para la C 35 E (para la posterior a 1993), pero no hemos encontrado su despiece oficial. Envíanos desde Contacto una foto de la etiqueta de tu bomba y de la placa de tu caldera, o llámanos al 911 17 77 77.

Is it compatible with the Isomax F 28 E2?

Sí. Confirmada: para la Isomax F 28 E2. Esta bomba lleva en la etiqueta UP 15-60/SD, P/N 59716503, y 110 W.

Is it compatible with the Isotwin F 28 EA?

Sí. Confirmada: para la Isotwin F 28 EA. Además la listan: (57325, con el nombre genérico «Circulador Saunier isofast isotwin isomax»), (57325) y (05732500). No hemos encontrado despiece oficial de esa caldera con este código.

What code does the boiler give if the pump fails?

In the official table for the Isofast F 35 E and E1, code 05 (overheating: blocked pump or faulty condenser) and code 14 may indicate a pump fault.

What do 05732500, 57325, and 057325 mean?

05732500 es la referencia Saunier Duval de la bomba. 57325 es la forma corta del despiece oficial («57325 Pompe»), y 057325 la que usa junto al 05732500. El 59716503 es el P/N de Grundfos de la etiqueta del motor.

What is the exact reference?

The original label shows Grundfos UP 15-60/SD and P/N 59716503.

What electrical values are verified?

230 V at 50 Hz, 2.5 µF capacitor, Imax 0.45 A and P1 110 W; the label indicates IP44, TF95, class H and maximum 6 bar.
