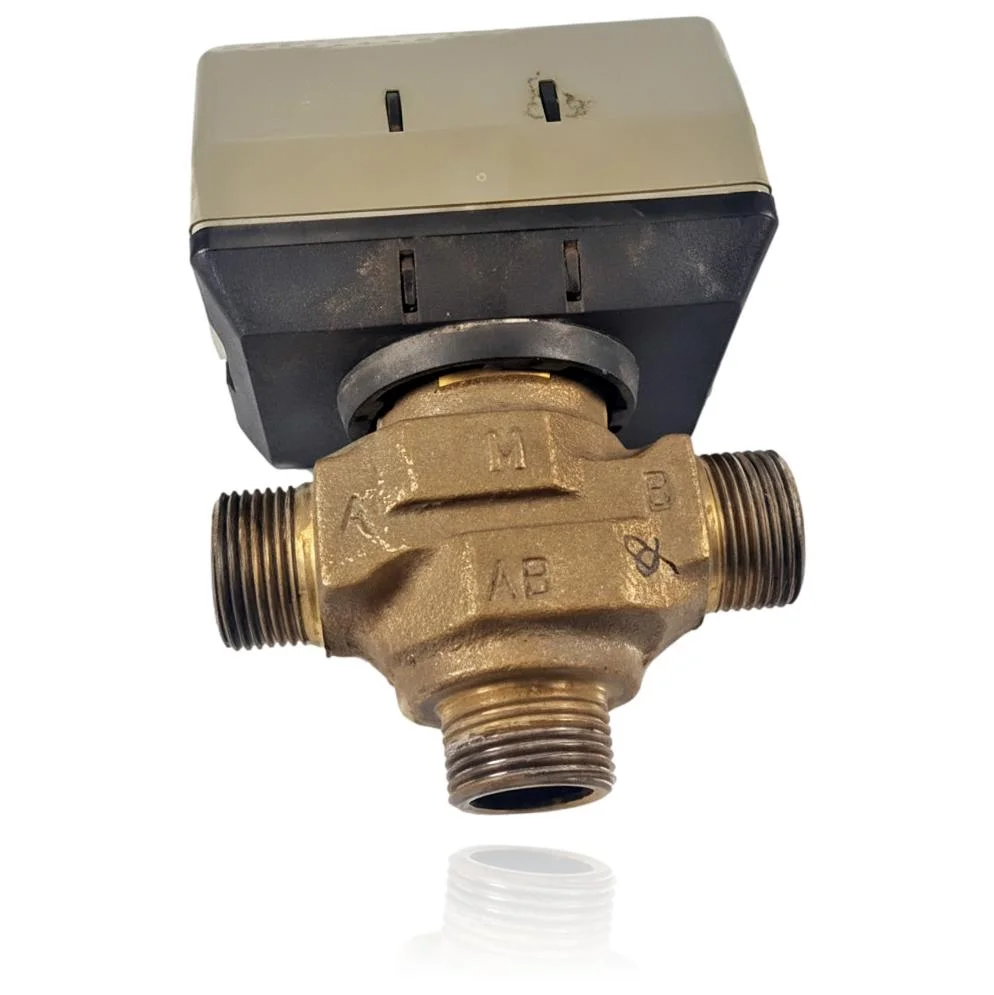

Three-Way Motorised Valve Saunier Duval Thelia Twin 28 E Ref. 05133500
The 3-way valve switches the water between the heating circuit and the domestic hot water circuit in the Saunier Duval Thelia Twin 28 E boiler. If it fails, you will notice that you have hot water but no heating, or vice versa, or even that both circuits are mixing. This motor is installed in boilers from the Thelia Twin range, such as the Thelia Twin 28 and Thelia Twin 28 E models, as well as in the Themis Twin range. It is advisable to replace it when you experience these operational issues.
VAT included
Consult via WhatsAppSaunier Duval boilers compatible with reference 05133500
3-way valve with reference 05133500. Four confirmed compatibilities: Thelia Twin 28 and Thelia Twin 28 E.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Saunier Duval Thelia Twin 28 | Thelia Twin | Contrasted |
| Saunier Duval Thelia Twin 28 E | Thelia Twin | Contrasted |
| Saunier Duval Themis Twin 28 | Themis Twin | Contrasted |
| Saunier Duval Themis Twin 28 E | Themis Twin | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 05133500 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 05133500. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the 3-way valve 05133500 resolves.
The 3-way valve diverts water between heating and domestic hot water. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
When requesting hot water from the tap, the radiators also heat up, or vice versa: when requesting heating, hot water comes out of the tap.
Cause: The valve actuator does not reach the correct position and leaves both paths partially open at the same time.
Check if there is a clear movement or sound in the gas valve when switching modes; if there is no movement, point to the motor.
- 02
The domestic hot water takes time to come out or loses pressure when a tap is opened in front of the heating.
Cause: The valve must switch immediately to DHW upon detecting demand, and if it gets stuck halfway, it distributes the flow between the two circuits.
Close the radiators manually for a few minutes and check if the hot water output improves; if it does, the valve is not fully switching.
- 03
You can notice or hear the boiler trying to move something inside every time it changes mode, but it doesn't actually do anything.
Cause: The actuator motor is spinning freely or has lost power to move the valve body.
With the boiler turned off and cold, check if the actuator shaft turns by hand normally or if it is stuck.
- 04
There is a ring or water droplets in the area where the three-way valve is installed, without leaking from any other place.
Cause: The seals of the valve body lose tightness with use and circuit pressure.
Dry the area and check after one heating cycle and one domestic hot water cycle to see in which mode the humidity appears.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Saunier Duval 05133500 three-way valve.
- Catalogue reference
- 05133500
- Brand
- Saunier Duval
- Type of part
- 3-way valves
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Ports engraved on the body
- A, M, B, AB
- Body material
- Brass
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Saunier Duval THELIA TWIN 28 E Manual (PDF)Document © Saunier Duval, provided as a technical reference.
Frequently asked questions about the 3-way valve 05133500
What type of valve is the EV3VTT28E part from the Saunier Duval Thelia Twin 28 E?
For which models is the 3-way valve EV3VTT28E compatible?
When should the 3-way valve of the Thelia Twin 28 E be replaced?
What material is the body of the 3-way valve EV3VTT28E made of?
What fault codes are documented for the valve EV3VTT28E?
