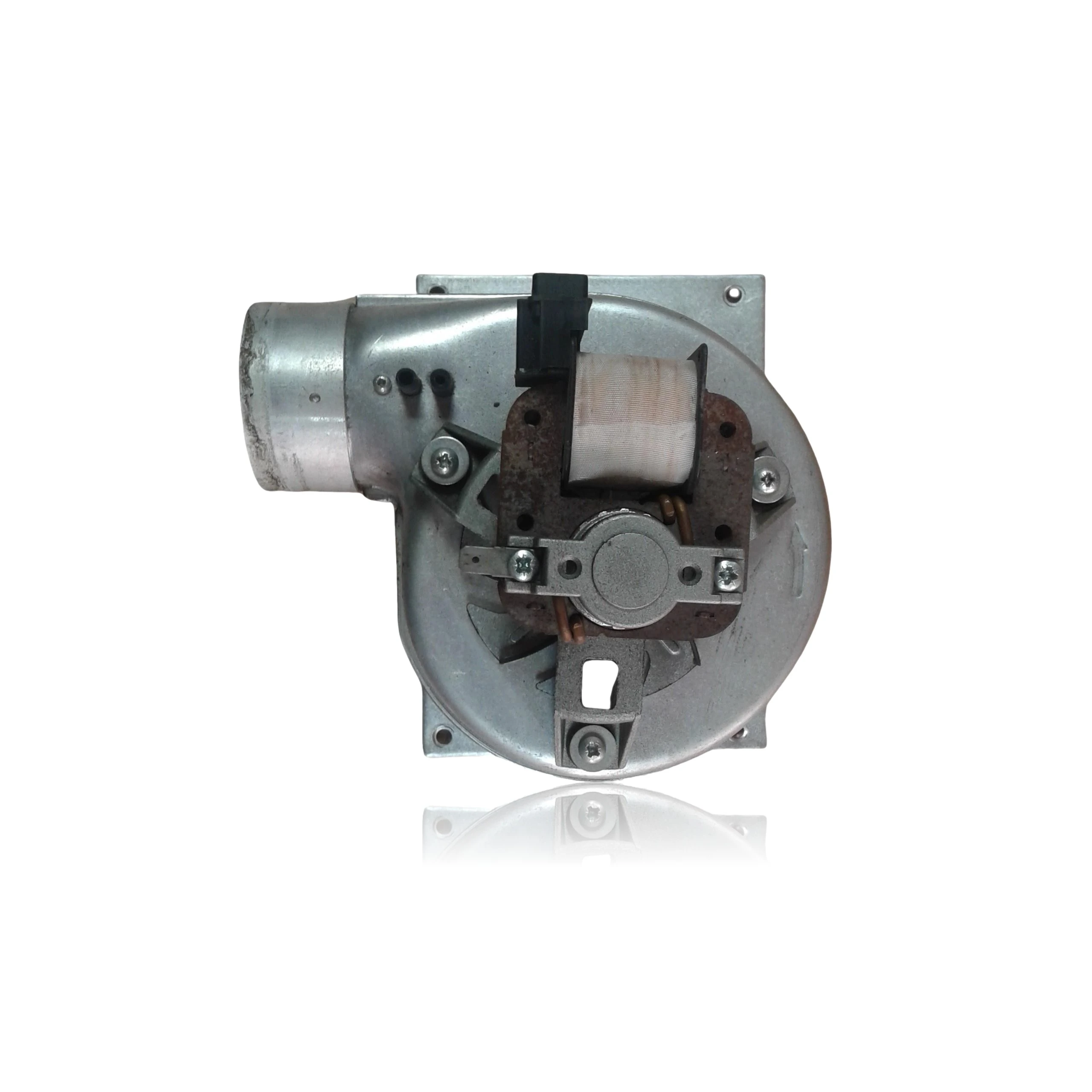

Smoke Extractor Motor Baxi Roca Victoria 20 20F Ref. 122022080
The Roca Victoria 20 20F smoke extractor motor, Ref. 122022080, is the component responsible for evacuating combustion gases and generating the necessary draft for the boiler to start. When it fails, the boiler does not ignite or gets locked due to issues with smoke evacuation, which can be reflected in fault codes such as 60-80-90: Insufficient pressure in the pressure switch or smoke thermostat. This motor is compatible with the models Victoria 20/20 F, Victoria 20/20 F G.C, Victoria 20/20F GN, Victoria 20/20F GP, Victoria 20/20T GP, and Victoria 20/20 C.O., among others. A technician must confirm through diagnosis whether it needs to be replaced when the mentioned symptoms occur or if the motor shows visible signs of wear.
- Type of part
- Extractor fans
- Status
- Refurbished
- Catalogue reference
- 122022080
- Warranty
- 1 year
Baxi Roca boilers compatible with reference 122022080
Extractor with reference 122022080. Six confirmed compatibilities: Victoria 20/20 F and Victoria 20/20 F G.C.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Roca Victoria 20/20 F | Roca Victoria 20/20 | Verified |
| Baxi Roca Victoria 20/20 F G.C | Roca Victoria 20/20 | Verified |
| Baxi Roca Victoria 20/20F GN | Roca Victoria 20/20 | Verified |
| Baxi Roca Victoria 20/20F GP | Roca Victoria 20/20 | Verified |
| Baxi Roca Victoria 20/20T GP | Roca Victoria 20/20 | Verified |
| Baxi Roca Victoria 20/20 C.O. | Roca Victoria 20/20 | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 122022080 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 122022080. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis in the extractor 122022080
The extractor evacuates the combustion gases with forced draft. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The extractor stops as soon as it is turned on, as if something is suddenly blocking it.
Cause: This usually happens due to a damaged internal winding that causes the motor to lose power right after the initial push.
Check if the fan starts with a gentle push by hand and then stops on its own; if so, the motor is failing internally.
- 02
Vibration or rattling that can be felt even by touching the boiler casing.
Cause: This is common when the turbine has become misaligned with the shaft or the bearings have play.
With the boiler turned off, slowly turn the turbine by hand and check if it visibly rubs against the casing before replacing the entire motor.
- 03
The boiler locks with a flue error or lack of draft as soon as it is turned on.
Cause: The control board does not detect the rotation or speed of the fan within the specified time and interrupts the cycle.
Check that the extractor connector is properly fitted and free of corrosion before replacing the part.
- 04
The ignition is intermittent: sometimes it lights and other times it gets locked.
Cause: A fan that starts with difficulty in an irregular manner causes the boiler to sometimes ignite on time and other times not.
Note if the fault occurs more when cold, with the first ignition of the day; if so, check the accumulated condensation in the extractor beforehand.
Fault codes Roca that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 60-80-90 | Insufficient pressure in the pressure switch or flue thermostat. | The flue fan motor does not rotate or does not deliver sufficient flow (fault, seized bearings, or dirty turbine/venturi), so the pressure switch does not close; check for the presence of 230 V at the fan during demand, ensure it starts and creates a vacuum in the pressure switch, and inspect the venturi/pressure tubes. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Baxi Roca extractor 122022080
- Catalogue reference
- 122022080
- Uniclima internal SKU
- EXTRV2020
- Brand
- Roca
- Type of part
- Extractor fans
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the extractor 122022080
Is this part the motor of the extractor or the complete extractor of the Victoria 20/20?
Does this motor fit my Baxi Roca Victoria 20/20F GN?
When should this extractor motor of the Victoria 20/20 be replaced?
