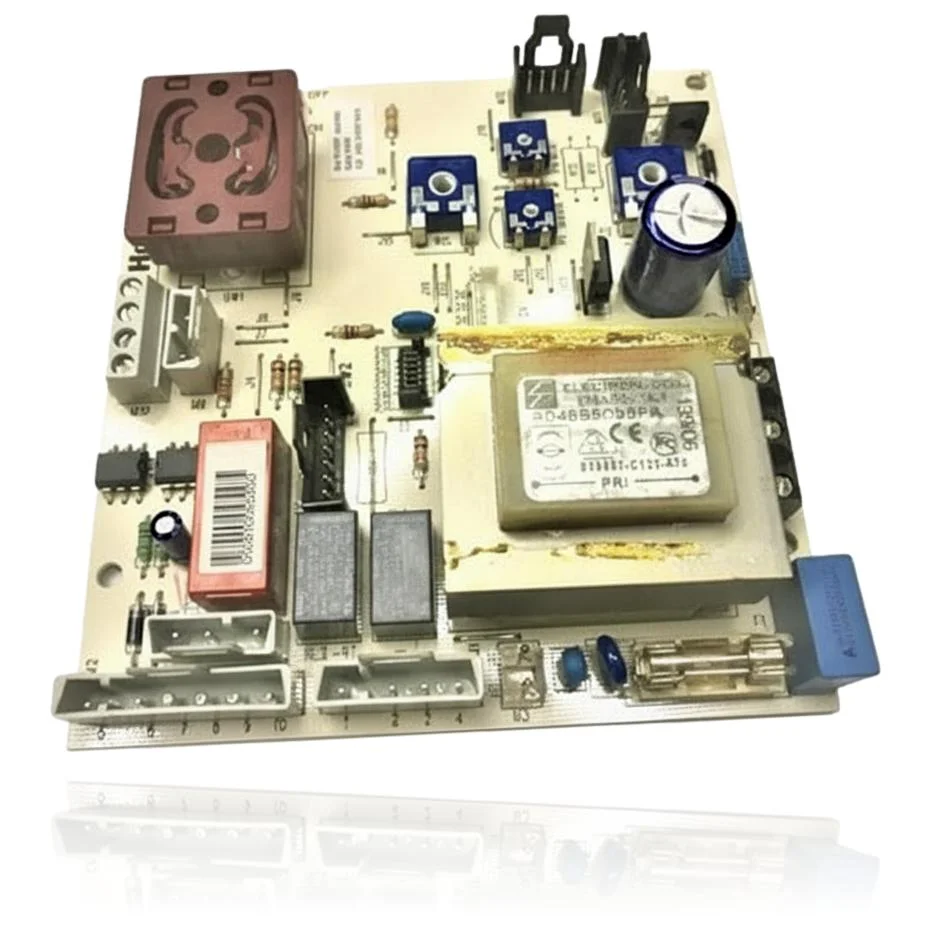

Hermann Supermaster S SE PCB Ref. 0020076179
Refurbished Hermann PCBs (control boards) ELECTRON-COIL (brand of the transformer mounted on the PCB, NOT the PCB manufacturer)

Hermann Supermaster S SE PCB Ref. 0020076179

If your boiler does not start, locks up, or exhibits erratic behavior, a technical diagnosis must confirm if you need the Hermann Supermaster S SE PCB, Ref. 0020076179. This control board manages the ignition, burner modulation, pump, and safety features of the boiler. When it fails, you may observe fault codes such as 13, which indicates a fault in the printed circuit, or 11, which signals a lack of reception by the main board. It is compatible with models from the MASTER, SUPERMASTER, SUPERMICRA, and THEMA ranges, such as the INOX 24 SE, 24 SE ECOPLUS, and 28 E, among others. Replacement requires first confirming the fault of the part through technical diagnosis, even when it shows operational failures or errors in the system.

Type of part
PCBs (control boards)
Status
Refurbished
Catalogue reference
0020076179
Warranty
1 year
VAT included Stock · 5 units
Compatibility

Hermann boilers compatible with reference 0020076179

PCB with reference 0020076179. 14 verified compatibilities: INOX 24 SE and INOX 30 SE.

Verified compatibility

Boiler modelFamilyVerification
Hermann INOX 24 SEMASTERVerified
Hermann INOX 30 SEMASTERVerified
Hermann 23 ESUPERMASTERVerified
Hermann 24 SESUPERMASTERVerified
Hermann 24 SE ECOPLUSSUPERMASTERVerified
Hermann 28 ESUPERMASTERVerified
Hermann 30 SESUPERMASTERVerified
Hermann INOX 23 ESUPERMASTERVerified
Hermann INOX 24 SESUPERMASTERVerified
Hermann INOX 28 ESUPERMASTERVerified
Hermann INOX 30 SESUPERMASTERVerified
Hermann 24 SE ECOPLUSSUPERMICRAVerified
Hermann CONDENSING SESUPERMICRAVerified
Hermann F24 NOxTHEMAVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if ref. 0020076179 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference 0020076179. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB 0020076179

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler won't start and no indicator lights are on.

    Cause: The PCB is not receiving power, so no component can operate.

    Check that the boiler has mains voltage and inspect the fuse before replacing the PCB.

  • 02

    The boiler intermittently loses power, turns off, and then comes back on by itself.

    Cause: A fault in the power supply to the PCB causes an unstable supply.

    Check that the input cables are properly tightened in the terminal block before replacing the PCB.

  • 03

    The burner does not start even though you can hear that the pump and the fan are working.

    Cause: The PCB does not send the ignition signal to the ignition system, although the rest of the circuit is functioning.

    Check the ignition electrode and its wiring before declaring the PCB faulty.

  • 04

    A fault code appears that repeats every time a reset is attempted.

    Cause: The PCB detects the same anomaly in the circuit it monitors and locks the boiler.

    Write down the exact code and check the component it points to before replacing the PCB.

Hermann fault codes that require diagnosis

CodeFaultTechnical checks
13Main PCB fault.The main PCB is faulty or has defective internal/external connections; check the fuse and voltages of the PCB (230/5 V supplies) and connectors. If the issue persists with correct wiring and peripherals, replace the PCB.
11No reception from the main PCB (MMI line).Communication fault towards the PCB (receiver/MMI input of the PCB) or the cable between interface and PCB; check continuity of the MMI lead and 5 V on the interface. If the fault persists with a good cable/panel, the PCB is the cause.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the PCB Hermann 0020076179

Catalogue reference
0020076179
Uniclima internal SKU
PLACHSUP
Brand
Hermann
Type of part
PCBs (control boards)
Units in stock
5 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Brand of the mounted transformer
ELECTRON-COIL
Frequently asked questions

Frequently asked questions about the PCB 0020076179

Is this PCB suitable for a Hermann Supermaster 24 SE?
Yes, it is on the list of compatible boilers, along with Master Inox 24/30 SE, other models of Supermaster and Supermaster Inox from 23 to 30 E/SE, Supermicra 24 SE Ecoplus, Supermicra Condensing SE, and Thema F24 NOx.
Is the brand ELECTRON-COIL that appears on the PCB the one that manufactures the Hermann Supermaster?
No: ELECTRON-COIL identifies only the transformer mounted on the PCB, not the manufacturer of the assembly.
Is this PCB Ref. 0020076179 suitable for a Hermann Thema F24 NOx?
Yes, the Thema F24 NOx is on the list of boilers compatible with this PCB.

Spare parts related to Hermann SUPERMASTER

Delivery calculated by destination Delivery time shown at checkout
1-year warranty inspected and tested
14-day return uninstalled parts
Technical support we verify your model
Hermann Supermaster S SE PCB Ref. 0020076179
