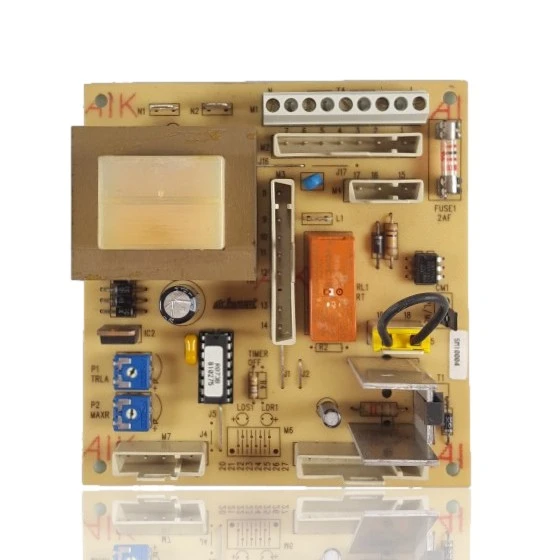

PCB Display Tifell Eurofell Ref. MLC15
Refurbished Tifell PCBs (control boards)

PCB Display Tifell Eurofell Ref. MLC15

If your boiler does not start, gets blocked, or shows erratic behavior, a technical diagnosis must confirm if you need the PCB (control board) Tifell Eurofell Ref. MLC15. This component controls the ignition, burner modulation, pump, and safety features of the boiler. When it fails, you will notice that the boiler does not operate correctly. It is compatible with models such as EUROFELL MLC15 and TFV-5, among others. A technician must confirm through diagnosis if it needs to be replaced if you experience these symptoms or if the part shows visible damage.

Type of part
PCBs (control boards)
Status
Refurbished
Catalogue reference
MLC15
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

Tifell boilers compatible with reference MLC15

PCB with reference MLC15. Two confirmed compatibilities: EUROFELL MLC15 and TFV-5.

Verified compatibility

Boiler modelFamilyVerification
Tifell EUROFELL MLC15Tifell EurofellVerified
Tifell TFV-5Tifell EurofellVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if the part MLC15 is the one for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference MLC15. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the MLC15 PCB.

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler does not ignite and there is no pilot light on the PCB.

    Cause: The protection fuse of the PCB has blown and cuts off the power to the entire circuit.

    Visually check the F1 fuse on the PCB (it is easy to see if it is blown) before replacing the entire board.

  • 02

    The flame ignites but fluctuates without stabilizing.

    Cause: The modulation adjustment of the PCB, controlled by its adjustment trimmers, is out of calibration or the component that manages it is failing.

    Measure the inlet gas pressure before touching anything on the PCB, to avoid confusing a supply issue with an electronic fault.

  • 03

    The boiler stops by itself after running well for a while.

    Cause: The PCB interprets an out-of-range safety signal and shuts off the burner to protect the boiler.

    Note how long it takes to stop and check the sensor or the corresponding pressure switch before replacing the PCB.

  • 04

    No command or button responds, the boiler does nothing.

    Cause: The stage of the PCB that receives the ignition and temperature commands is faulty.

    Check that the room thermostat and its wiring are correct before assuming that the PCB is the culprit.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Tifell MLC15 PCB.

Catalogue reference
MLC15
Uniclima internal SKU
PEST1101
Brand
Tifell
Type of part
PCBs (control boards)
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Fuse F1
2AF (2A fast)
Before purchasing
  • The current catalog associates it with 'Ref. MLC15', but MLC15 appears in the list of compatible boilers as a model (Eurofell MLC15); there is no confirmation that this is the reference for this PCB.
Frequently asked questions

Frequently asked questions about the MLC15 PCB.

For which models is the Tifell Eurofell PCB Display Ref. MLC15 compatible?
It is compatible with the EUROFELL MLC15 and TFV-5 models.
What fuse does the Tifell Eurofell Display PCB Ref. MLC15 use?
The PCB has a fast 2A fuse F1, according to the visible silkscreen on the board.
What trimmers does the PCB Tifell Eurofell Ref. MLC15 have?
It has the trimmers P1 (TRLA) and P2 (MAXR), visible on the silk screen of the PCB.
What is the reference for the Tifell Eurofell Control Board?
PEST1101 is Uniclima’s internal SKU for locating this listing. To confirm compatibility, check the manufacturer’s reference and the exact appliance model.
How many models are compatible with the PCB Tifell Eurofell Ref. MLC15?
There are a total of 2 confirmed models.
What fault codes does the PCB Tifell Eurofell Ref. MLC15 have?
There are no documented fault codes.
