Vaillant PCB PM-01 · 0020146496 · 712164 for VMI 282/7 R3 and Micraplus NOx 24 B/2
Refurbished Vaillant Group Vaillant Vaillant

Vaillant PCB PM-01 · 0020146496 · 712164 for VMI 282/7 R3 and Micraplus NOx 24 B/2

It is the control board of the boiler: it manages the signals and activates the outputs through its relays. It is suspected when the boiler does not respond or behaves erratically; before replacing it, it is advisable to check the fuse and the connections.

Type of part
Vaillant
Status
Refurbished
internal SKU
PLC165
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

Vaillant Group compatible boilers

Vaillant. A proven compatibility: Hermann Micraplus NOX 24 B/2. There are 2 other models that we are still verifying.

Proven compatibility

Boiler modelFamilyVerification
Vaillant Group Hermann Micraplus NOx 24 B/2Vaillant GroupContrasted

Models pending verification

These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.

Vaillant Group Vaillant VMI ES 32/362-7 R3Vaillant GroupUnconfirmed
Vaillant Group Vaillant VMI 282/7 R3Vaillant GroupUnconfirmed

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if it is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Look for the designation PM-01 on your PCB and the label with the code: 712164 (with "6283 0101 S" below) or 0020146496 (with "2455 0004 G" marked).
  2. Compare the silkscreen: unit 712164 has TM-AB, TC-AB, and TL-AB/77; unit 0020146496 has TL-AE, TM-AE1, and PW-01.
  3. Do not rely solely on PM-01 or TL-AE/TM-AE1: there are Vaillant PCBs with PM-01 and another code (734678) and one with those markings and PM-03 (0020035427). Compare the complete code and the model on the rating plate of your boiler.
  4. If they match, call us at 911 17 77 77 with your boiler model and we will reserve it for you.
Diagnosis and fault codes

Symptoms that require diagnosis in the Vaillant.

Common symptoms and faults

  • 01

    It doesn't turn on, it restarts by itself, or it shows meaningless errors.

    Cause: To confirm: attribute these symptoms to the PCB 712164 (commercial text, not manufacturer's table). First, rule out the fuse and the connections.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Vaillant Group

Uniclima internal SKU
PLC165
Brand
Vaillant Group
Type of part
Vaillant
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Type
control PCB
Adhesive label
712164----
Secondary line of attached label
6283 0101 S

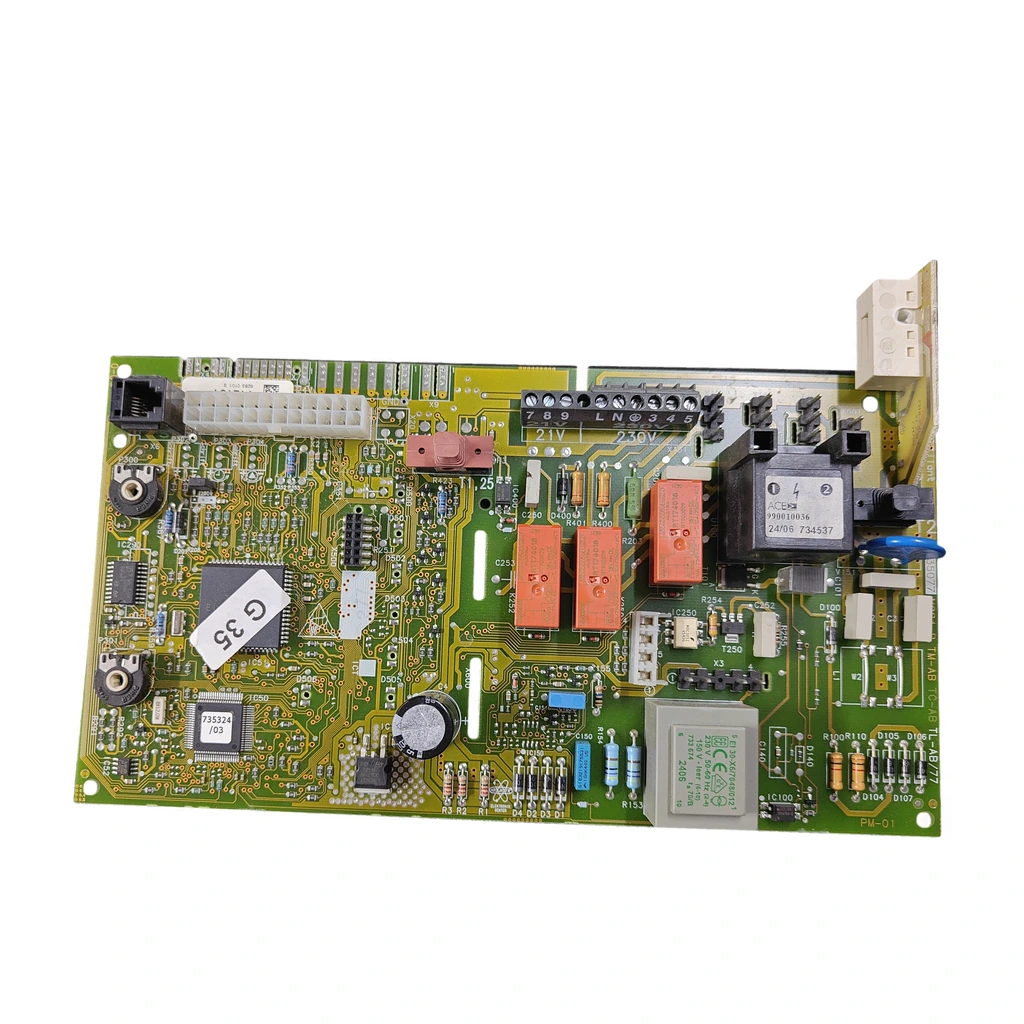

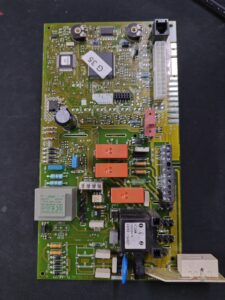

PCB silkscreen
PM-01; TM-AB; TC-AB; TL-AB/77; BM-AB; BC-AB
Silkscreened terminals
21 V: 7, 8, 9; 230 V: L, N, earth, 3, 4, 5
Screen-printed fuse
T1,25
Transformer/subcomponent
EI 30-X6/7048/0121; 230 V 50-60 Hz (2-4); 150 V - read (6-10); 733 674; ta 70/B; 2406; numerals 6 and 10
Subcomponent label
990010036; 24/06; 734537
SCHRACK relays/subcomponents
RT174018; RT900029; 18 V DC; 10 A/250 VAC; 10 A/250 V~/AC1
Optocoupler/subcomponent
MOC3052; V3540
Integrated circuit label
735324 /03
Sticker on integrated circuit
G35
Identification — Marked designation
PM-01
Identification — Marked code
712164----
Identification — Marked code
6283 0101 S
Identification — Marked code
TM-AB TC-AB TL-AB/77
Identification — Marked code
735324 /03
Identification — Marked code
G35
Technical sheet: Type
control PCB
Technical sheet: Adhesive label
712164----
Technical sheet: Secondary line of attached label
6283 0101 S
Technical sheet: PCB silkscreen
PM-01; TM-AB; TC-AB; TL-AB/77; BM-AB; BC-AB
Technical sheet: Screen-printed terminals
21 V: 7, 8, 9; 230 V: L, N, earth, 3, 4, 5
Technical sheet: Screen-printed fuse
T1,25
Transformator/subcomponent
EI 30-X6/7048/0121; 230 V 50-60 Hz (2-4); 150 V - read (6-10); 733 674; ta 70/B; 2406; numerals 6 and 10
Etiqueta de subcomponente
990010036; 24/06; 734537
Relays/subcomponents SCHRACK
RT174018; RT900029; 18 V DC; 10 A/250 VAC; 10 A/250 V~/AC1
Optocoupler/subcomponent
MOC3052; V3540
Integrated circuit label
735324 /03
Sticker on integrated circuit
G35
Pending applications to verify
Vaillant VMI 282/7 R3 — compatibility cited; pending confirmation by variant. Declarations (documentation 23/10/2026; revision 24/10/2026), pending confirmation by manufacturer. Check reference, revision, and serial number before use: VMI ES 32/362-7 R3 · VMI ES 32/362-7 · VMI 282-7 R2
Before purchasing
  • A forum user reports that they burned the PCB of their Micraplus NOx 24 B/2 by accidentally sending current to the boiler circuit while changing the room thermostat. Before installing a new PCB, check the wiring of the thermostat to ensure that no current reaches the boiler circuit.
  • To confirm: Vaillant VMI ES 32/362-7 R3 — 1 origin:, with the 712164
  • Not compatible or excluded: Hermann Micraplus NOX 25 — A list gives you another PCB: 0020141440
  • Not compatible or excluded: Hermann Micraplus 24 (with display) — A list gives you another PCB: 0020097980
  • Not compatible or excluded: Hermann Micraplus 24 SE-A/1 and 30 SE-A/1 — A list of them gives another PCB: 0020097962
  • Do not confuse: 734678 — Vaillant control board "V053_M TM-AM PM-01" which is listed as "Control board" in German — It is a different code and a different silkscreen (TM-AM); it does not appear in our units (TM-AB and TM-AE1).
  • Do not confuse: 0020184123 — PCB for the Hermann Micraplus Nox 24 and the Themafast Nox F 25 and F 30 — It is a different reference, distinct from 0020146496 and 712164.
  • Do not confuse: 0020034604 — Vaillant PCB (ref. 288.60.0001) which is listed for the VMI 282-7 R3 and the VM 282/2-5 R3 — It is a different code and does not appear in our units; Confirmation recorded: 712164 for the VMI 282/7 R3
  • Do not confuse: 0020035427 — Main PCB Vaillant AtmoTec pro with TM-AE1 V132_E1, TL-AE and PM-03 (page from a Russian forum) — Shares TL-AE and TM-AE1 with 0020146496, but its designation is PM-03, not PM-01.
  • Both units have PM-01 with different codes and markings (AB versus AE): compare the complete code of your PCB, not just PM-01.
  • The boilers and the codes are confirmed. An external source cites 712164 as a Vaillant PCB for another boiler; no parts list, manual, or reviewed documents mention 0020146496.
  • Pending registered applications to confirm by model, variant, or programming: Vaillant VMI 282/7 R3.
Frequently Asked Questions

Frequently asked questions: Vaillant

How do I recognize the Vaillant PM-01 PCB?
Look for the PM-01 designation printed and the label with the code. Our units have 712164 (with "6283 0101 S" on the second line) or 0020146496 (with "2455 0004 G" marked). PM-01 alone is not enough: compare the complete code.
Is it compatible with my Vaillant VMI 282/7 R3?
Check the status of each model in the compatibility sections; the pending variants are not validated. Registered application: for the Vaillant VMI 282/7 R3, the PCB with label 712164 and silkscreen TM-AB, TC-AB, and TL-AB/77. Note: another PCB for the VMI 282-7 R3 is listed, the 0020034604 (ref. 288.60.0001). Compare the markings on your PCB with ours before ordering it.
Is it compatible with my Hermann Micraplus NOX 24 B/2?
Check the status of each model in the compatibility sections; the pending variants are not validated. Registered application: for the Hermann Micraplus NOX 24 B/2 the PCB with label 0020146496 and silkscreen TL-AE and TM-AE1. Note: for the Micraplus Nox 24 another PCB, 0020184123, which is none of our codes; compare it with your PCB.
Is the 712164 compatible with the Vaillant VMI ES 32/362-7 R3?
Check the status of each model in the compatibility sections; the pending variants are not validated. A single source links it to that boiler: it sells the 712164 refurbished for the VMI ES 32/362-7 R3 (also in its ). It is not among the boilers that Registered application: for this PCB and it does not mention PM-01. Compare the label and the silkscreen, or send us a photo from Contact.
Is the 712164 the same as the 0020146496 and what do their markings mean?
We do not take it for granted. Both have PM-01, but with different labels and printing: TM-AB, TC-AB, and TL-AB/77 on the 712164; TL-AE, TM-AE1, and PW-01 on the 0020146496. Each one is confirmed for its boiler. We have not found a manufacturer's table that explains the letters AB and AE. 735324/03 is the label of the integrated circuit of the 712164. The marked codes do not necessarily correspond to the reference of a kit.
What other PCBs are confused with the PM-01?
Always compare the complete code. The German list 734678 (V053_M, TM-AM) as "Control board" PM-01. The 0020184123 for the Micraplus Nox 24 and the Themafast Nox F 25 and F 30. The 0020034604 is listed for the VMI 282-7 R3. A Russian page shows an AtmoTec pro board (0020035427) with TM-AE1 and TL-AE, but with PM-03.
Can I install it myself?
It is not recommended. The PCB operates with mains voltage (the 712164 indicates terminals of 230 V: L, N, ground, 3, 4, and 5) and controls a gas boiler, so it should be installed by a qualified technician, with the boiler disconnected from the power supply.
