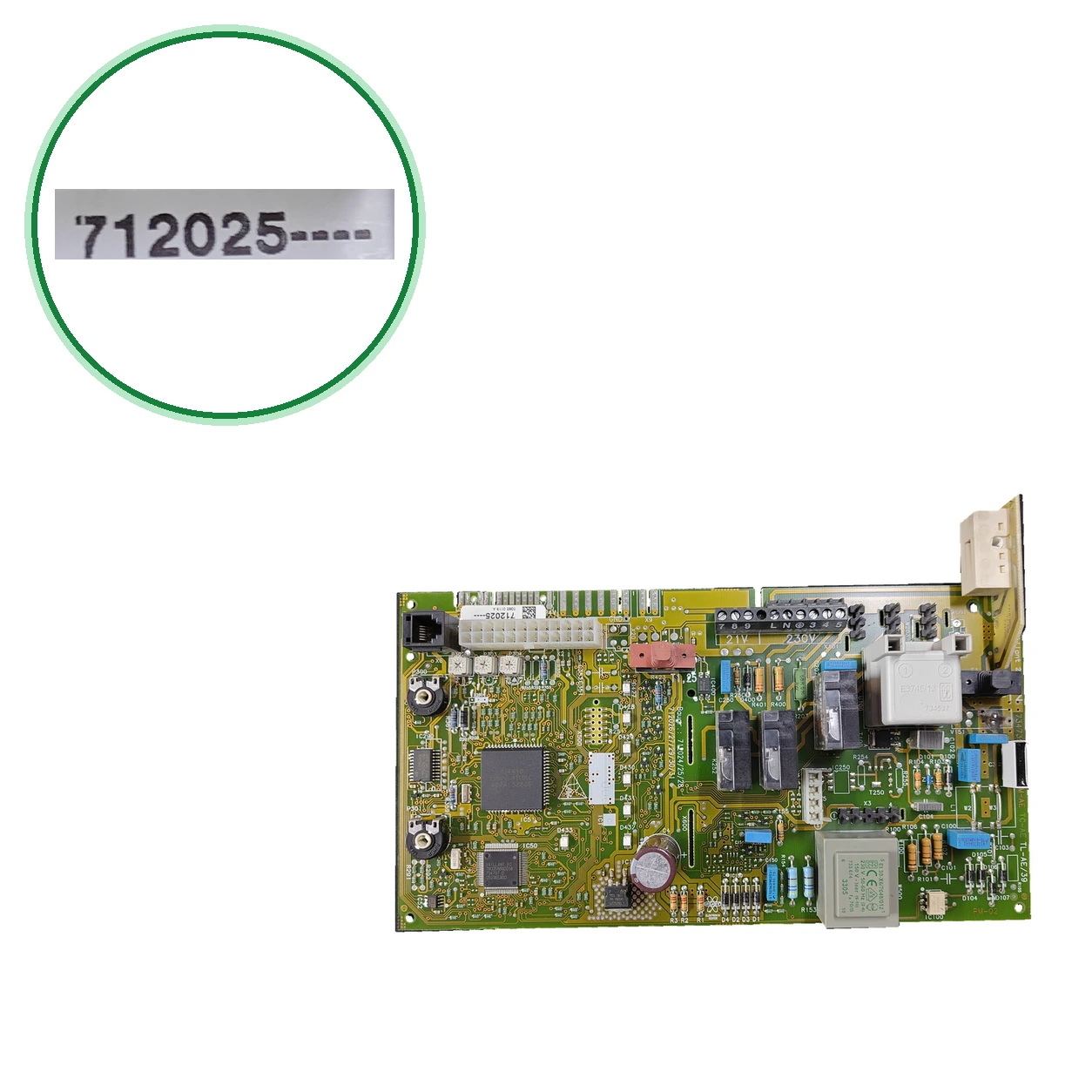

Vaillant Control Board 712025 · PCB 734739 V064 E for VMW 282-5 R2
Aplicación a la variante exacta pendiente de confirmar. Es la placa de control, situada tras el frontal, en la caja de control. Se sospecha de ella cuando la caldera no arranca, se reinicia sola o no completa el ciclo de calefacción o de agua caliente.
- Type of part
- Vaillant
- Status
- Refurbished
- internal SKU
- PLC185
- Warranty
- 1 year
Compatible Vaillant boilers
Vaillant. 0 compatibilidades contrastadas. Hay otros 6 modelos que todavía estamos comprobando.
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Vaillant VMW 242/2-3 R1 | Vaillant | Unconfirmed |
|---|---|---|
| Vaillant VMW 282/2-3 R3 | Vaillant | Unconfirmed |
| Vaillant 242/2-3-B | Vaillant | Unconfirmed |
| Vaillant VUW INT 240/2-3 R1 | Vaillant | Unconfirmed |
| Vaillant VMW ES 240/2-3 | Vaillant | Unconfirmed |
| Vaillant VMW 282-5 R2 | Vaillant | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

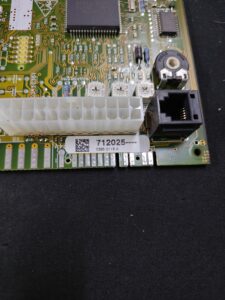

- Open the front panel: the PCB is in the control box and usually has the code printed on it.
- Look for 734739 V064 E, 712025, PM-02 and the brands TM-AE TC-AE TL-AE/39. They must match, including the final letter E.
- Comprueba el conector de 3 pines blancos y el transformador de 230 V · 50–60 Hz · 7,3 VA (datos ).
- Do not confuse it with the 130806 / 0020034604 or with the V064 D or V064 F versions.
- coinciden, llámanos al 911 17 77 77 con el modelo de tu caldera.
Symptoms that require diagnosis in the Vaillant.
Common symptoms and faults
- 01
The boiler does not start and the fault is attributed to the control board.
Cause: An Italian forum attributes it to the PCB 712025 of a 242/2-3-B and considers it repairable. A technician must confirm this.
- 02
The boiler restarts by itself or does not complete the heating or domestic hot water cycle.
Cause: To be confirmed: entre los motivos para sustituir la placa 00712025, con relés pegados, pistas quemadas u oxidación en el circuito.
- 03
Burnt SMD resistors or capacitors.
Cause: A forum reports it on a 734739 V064 E with TM-AE: SMD resistors and capacitors burned; another user suggests that the processors might have burned out. The author cannot find the schematic and requests the values of the components.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Vaillant
- Uniclima internal SKU
- PLC185
- Brand
- Vaillant
- Type of part
- Vaillant
- Units in stock
- 6 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Inventory — Mounted transformer
- 230 V; 50–60 Hz; 7.3 VA
- Inventory — Connector
- 3 white pins
- Inventory — Application indicated in inventory
- VMW 282-5 R2
- Identification — Marked designation
- PM-02
- Identification — Marked code
- PM-02
- Identification — Marked code
- 734739 V064
- Identification — Marked code
- TM-AE TC-AE TL-AE/39
- Identification — Marked code
- 712025---
- Inventory data — Mounted transformer
- 230 V; 50–60 Hz; 7.3 VA
- Inventory data — Connector
- 3 white pins
- Inventory data — Application indicated in inventory
- VMW 282-5 R2
- Pending applications to verify
- VMW 282-5 R2 — compatibilidad anotada; pendiente de confirmar por variante. Aplicación registrada: para su producto 15743 («Placa Electrónica Vaillant (712025)»): VMW ES 242/2-3 R2. Pendiente de contraste con documentación del fabricante para la referencia y variante física; esta declaración comercial no certifica compatibilidad ni intercambiabilidad.
- Son relatos de usuarios y descripciones, no una tabla oficial de averías de Vaillant.
- To be confirmed: Vaillant VMW 242/2-3 R1: PCB 00712025; otra ficha suya da 0020034604
- Por confirmar: Vaillant VMW 282/2-3 R3: PCB 00712025
- Por confirmar: Vaillant 242/2-3-B — (foro): scheda 712025
- Por confirmar: Vaillant VUW INT 240/2-3 R1 — (foro): PCB 734739 V064 E · TM-AE
- Por confirmar: Vaillant VMW ES 240/2-3: PCB 712024---- con 734739 V064_E
- Not compatible or excluded from origin: Vaillant TURBOmax VUW 242/1 E and VUW 282/1 E — They have a different PCB: 13 0438 (Vaillant manual)
- No compatible o excluidos: Vaillant VUW 242/2-5, 282/2-5 y 362/2-5 — Llevan otra placa: 130806, hoy 0020034604 (la 362: 130827); catálogo Vaillant
- No confundir: 130806 · 0020034604 — Placa de mandos de la VMW 282/2-5 en catálogos (130806; hoy 0020034604) — Otra referencia: sin confirmación adicional la une a la 712025
- No confundir: 734739 V064 F — Misma familia, letra F, en una VUW INT 242/2-3 R2 (foro) — Otra versión: Sin confirmar: por intercambiable con la E
- No confundir: 734739 V064_D — Versión D de la electrónica, ficha de — Otra versión: la letra final no es la E
- No confundir: 712024---- — Placa de la VMW ES 240/2-3 con 734739 V064_E como otro identificador — Otro código: sin confirmación adicional lo da como 712025
- Los catálogos de recambios Vaillant de la serie...-5 listan la placa de mandos como 130806; un despiece de la VMW 282/2-5, 0020034604. Confirmación registrada: esta 712025 para la VMW 282-5 R2.
- La VMW 282-5 R2 y los códigos los confirma. Fuera: 734739 V064 E en y 712025 en 2 (como 00712025 ). Sin confirmar: esa caldera con 712025 ni 734739 V064 E; la serie -5 lleva 130806 (hoy 0020034604).
- Aplicaciones registradas pendientes de confirmar por modelo, variante o programación: Vaillant VMW 282-5 R2.
