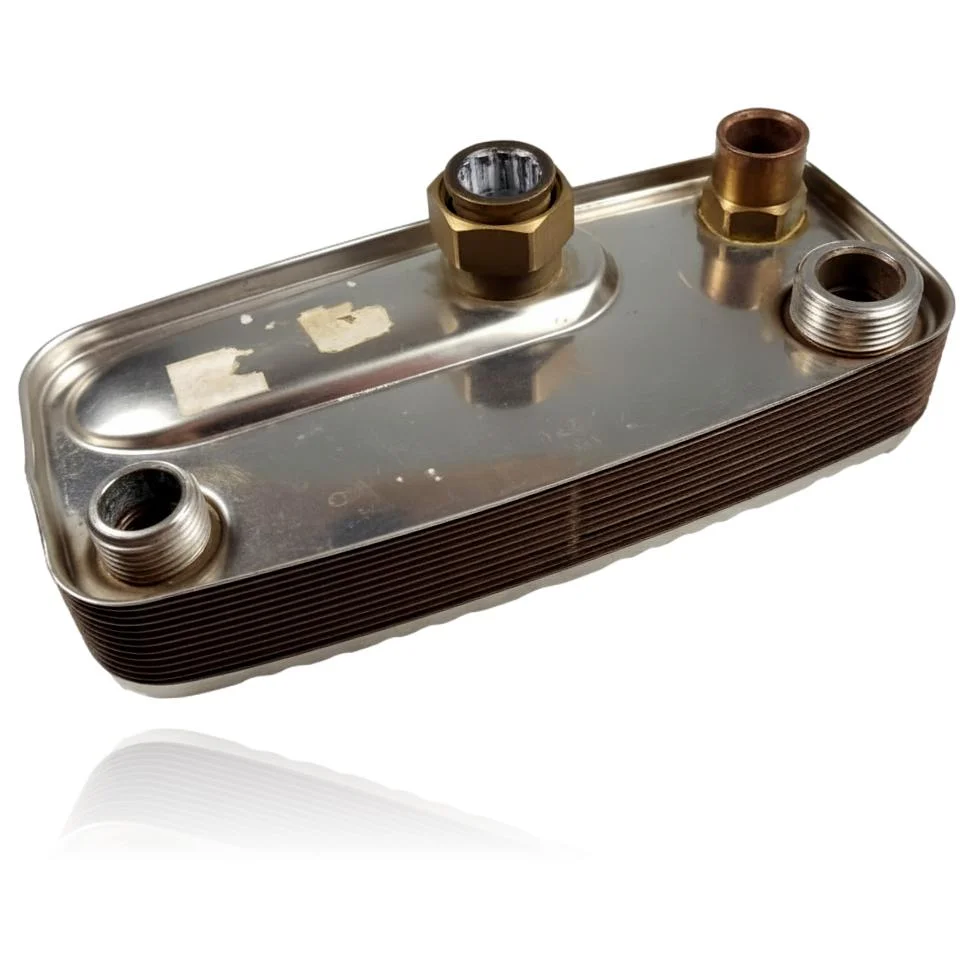

Fagor Eco Compact FE 20E 2N Plate Heat Exchanger Ref. N46G000H4
The Fagor Eco Compact FE 20E 2N Plate Heat Exchanger Ref. N46G000H4 is a component that transfers heat from the primary circuit to the domestic hot water instantly. If it malfunctions, you will notice that the water comes out lukewarm or with fluctuating temperature, and the flow rate of DHW may also decrease. This part is compatible with boilers from the Fagor FE-20E and FEE-20 ranges, among others. It should be replaced when these symptoms are detected, as it directly affects the quality of the hot water.
VAT included
Consult via WhatsAppFagor boilers compatible with reference N46G000H4
Plate heat exchanger with reference N46G000H4. 11 verified compatibilities: FE20E and FE20EF.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE20E | Fagor FE-20E | Contrasted |
| Fagor FE20EF | Fagor FE-20E | Contrasted |
| Fagor FE20EUK | Fagor FE-20E | Contrasted |
| Fagor FE20EFRN | Fagor FE-20E | Contrasted |
| Fagor FEE20/1 | Fagor FEE-20 | Contrasted |
| Fagor FEE20/2B | Fagor FEE-20 | Contrasted |
| Fagor FEE20D | Fagor FEE-20 | Contrasted |
| Fagor FEE20F | Fagor FEE-20 | Contrasted |
| Fagor FE20E | Cointra (OEM equivalent) | Contrasted |
| Fagor FEE20/2B | Cointra (OEM equivalent) | Contrasted |
| Fagor FE20EFRN | Cointra (OEM equivalent) | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. N46G000H4 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference N46G000H4. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the N46G000H4 plate heat exchanger resolves.
The plate heat exchanger transfers heat to the domestic hot water. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
When you turn on the tap, the water comes out cold or just lukewarm, no matter how long you wait.
Cause: The heat exchanger has scale buildup and does not transfer heat to the water effectively.
Check the domestic hot water temperature set on the boiler and the flow rate of the tap before assuming it is the heat exchanger.
- 02
You find water at the base of the boiler, near the heat exchanger.
Cause: A damaged plate or gasket allows water to escape from the closed circuit.
Dry the area and turn on the boiler to see if the leak reappears and where it is coming from exactly.
- 03
The heating works without any issues, but the hot water from the tap doesn't reach the desired temperature.
Cause: The heat for the domestic hot water passes through the heat exchanger; if it is blocked, the heating is not affected.
Check that the boiler enters domestic hot water mode when you open the tap before ruling out the DHW sensor.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for Fagor plate heat exchanger N46G000H4
- Catalogue reference
- N46G000H4
- Brand
- Fagor
- Type of part
- Plate heat exchanger
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Material
- Polished steel
Frequently asked questions about the plate heat exchanger N46G000H4
What material is the surface of this heat exchanger of the FE20E made of?
Is this heat exchanger suitable for a FE20EFRN?
Is it also suitable for a FEE20/2B boiler?
