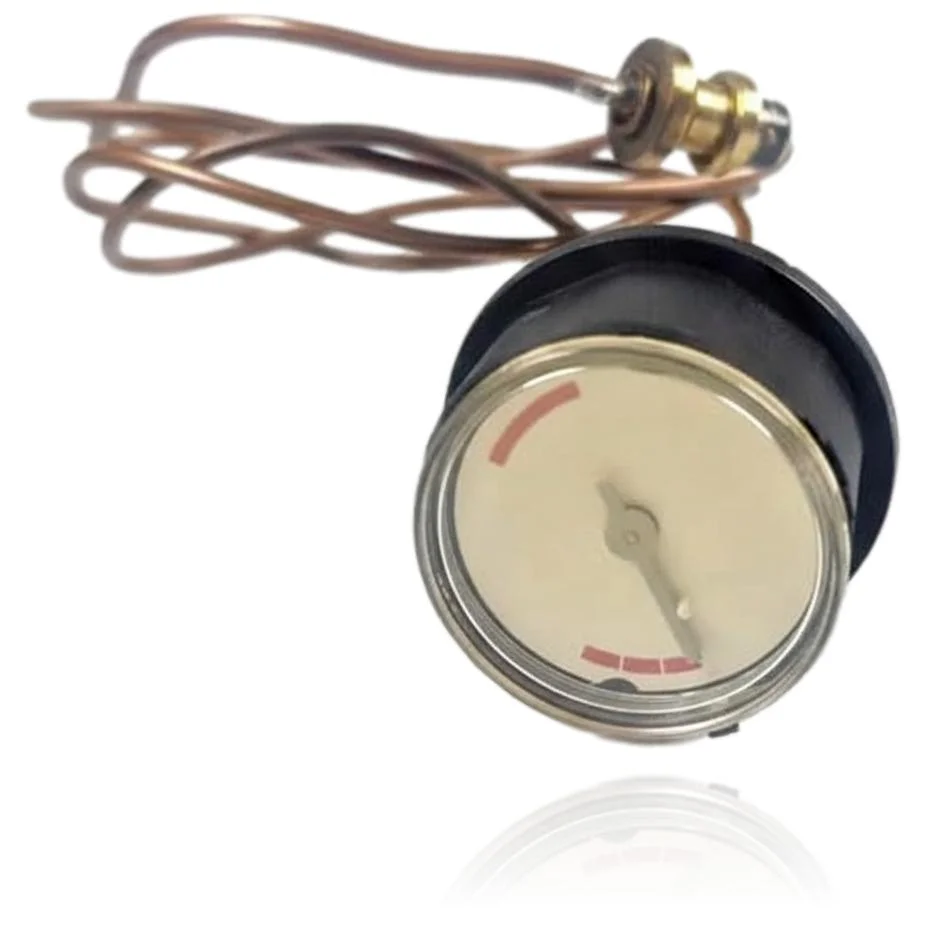

Chaffoteaux Maya 24 FF Pressure Gauge Ref. 61303159

Chaffoteaux boilers compatible with reference 61303159

Pressure gauge with reference 61303159. Nine confirmed compatibilities: Calydra Comfort 24 CF and Calydra Comfort 24 FF.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. 61303159 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference 61303159. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis on the manometer 61303159

The manometer shows the pressure of the boiler circuit. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The pressure gauge does not move, or it always shows the same reading even if you fill or empty the circuit a little.

  Cause: the internal mechanism of the sphere gets stuck or breaks over time and stops following the actual water pressure

  bleed a radiator or add water using the filling key and check if the needle responds before considering the part unusable

• 02

  Water is leaking or there is a moisture ring in the area where the part screws into the boiler.

  Cause: the gasket or the body of the fitting cracks with the pressure and temperature cycles of the circuit

  dry the area well, tighten the fitting carefully, and check again when cold and hot to confirm that the leak is coming from there and not from a nearby hose

• 03

  The boiler shuts off the burner or locks out when the water is not very hot yet.

  Cause: if the part acts as a limit thermostat, a miscalibrated contact can trigger prematurely

  measure the actual temperature of the pipe at that point with a contact thermometer when the cut occurs, before replacing the part

• 04

  The circulator does not start or stop according to the water temperature, and some radiators remain cold.

  Cause: if this part controls the pump start based on temperature, a corroded internal contact prevents it from giving the command

  check the continuity of the contact in cold and hot with a multimeter before replacing the part

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for Chaffoteaux pressure gauge 61303159

Catalogue reference

61303159

Uniclima internal SKU

MCCM24FF

Brand

Chaffoteaux

Type of part

Pressure gauges & aquastats

Units in stock

7 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days
