Grundfos UPR15-60 circulator pump CESA02 · 59756514 for Fagor Natur FC 24/24N
It circulates water through the heating circuit; it is attached to the hydraulic body. It is suspected if the radiators do not heat even though the boiler ignites, if it makes noises or vibrates when starting, or if it leaks water from the body.
- Type of part
- Fagor
- Status
- Refurbished
- Catalogue reference
- 59756514
- Warranty
- 1 year
compatible with reference 59756514
Fagor with reference 59756514. A confirmed compatibility: Fagor Natur FC 24/24N. There are 8 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor Natur FC 24/24N | Fagor | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fagor Natur FC 24 | Fagor | Unconfirmed |
|---|---|---|
| Fagor Remeha Avanta 28c | Fagor | Unconfirmed |
| Fagor De Dietrich MCR | Fagor | Unconfirmed |
| Fagor Remeha Avanta Plus Combi 28C | Fagor | Unconfirmed |
| Fagor Remeha Avanta Exclusive 28C | Fagor | Unconfirmed |
| Fagor Remeha Avanta Plus Combi 24C, 35C and 39C | Fagor | Unconfirmed |
| Fagor Remeha Avanta Plus Eco Combi 28C | Fagor | Unconfirmed |
| Fagor Remeha Avanta Plus System 18S, 24S and 30S | Fagor | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 59756514 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

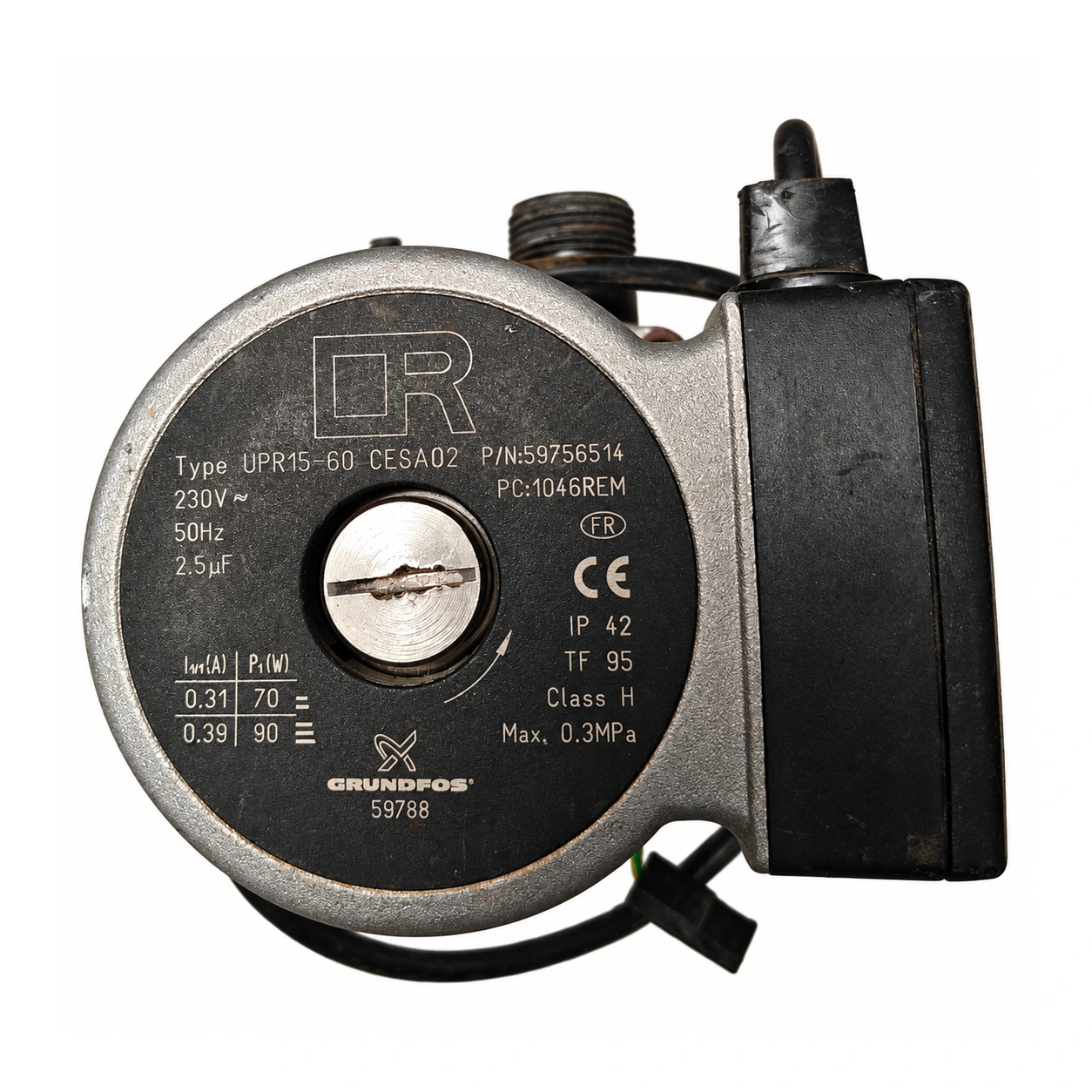

- Look for the motor label with the designation UPR15-60 CESA02 and the code 59756514; next to the brand Grundfos, the number 59788 should be read.
- Check the number of speeds and the electrical connector of your pump, and compare them with those of the one you want to install.
- show two PCs with different REMs (PC:0629REM and PC:1103REM): the REM (here 1046REM) is not enough. Also compare 59756514 and 59788.
- Fagor Natur FC 24/24N: it is already confirmed. Remeha or De Dietrich: also compare 720481301, S62746 or 7731044.
- If they match, call us at 911 17 77 77 with the model of your boiler.
Symptoms that require diagnosis in the Fagor 59756514
Common symptoms and faults
- 01
Cold radiators even though the boiler starts correctly.
Cause: Check if the pump is running; there may be a lack of circulation.
- 02
Strange noises or excessive vibrations when starting.
Cause: To confirm: as a fault signal of this pump. Have it checked by a qualified technician.
- 03
Stuck rotor after a long summer shutdown.
Cause: Sometimes it is enough to unlock it from the central screw.
- 04
Small water leaks in the body of the pump.
Cause: Check the body of the pump before replacing it.
- 05
"No circulation" (Fagor FC 24/24 manual).
Cause: Turn the shaft several times with a screwdriver and check the wiring; if it still doesn't work, it is faulty and needs to be replaced.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor 59756514
- Catalogue reference
- 59756514
- Uniclima internal SKU
- BOM014
- Brand
- Fagor
- Type of part
- Fagor
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Power supply
- 230 V, 50 Hz
- Marked capacitor
- 2.5 µF
- Current / power II
- 0.31 A / 70 W
- Current / power III
- 0.39 A / 90 W
- Protection
- IP42
- Set temperature
- TF95
- Marked class
- H
- Maximum pressure marked
- 0.3 MPa
- Inventory — Type of spare part
- Pumps
- Inventory — Condenser
- 2.5 μF
- Inventory — Application indicated in inventory
- NATUR FC 24/24N
- Inventory — Marked code
- 1046REM; 59788
- Technical sheet: Power supply
- 230 V · 50 Hz
- Technical sheet: Current / power
- 0.31 A / 70 W and 0.39 A / 90 W · (PCB)
- Technical sheet: Elevation height
- Up to 6 m
- Technical sheet: Maximum flow rate
- ≈ 3.0 m³/h
- Technical sheet: Water temperature
- Up to 95 °C
- Identification — Marked designation
- UPR15-60 CESA02
- Identification — Marked code
- 59756514
- Identification — Marked code
- 59788
- Technical sheet: Power supply
- 230 V, 50 Hz
- Technical sheet: Marked capacitor
- 2.5 µF
- Technical sheet: Current / power II
- 0.31 A / 70 W
- Technical sheet: Current / power III
- 0.39 A / 90 W
- Technical sheet: Protection
- IP42
- Technical sheet: Marked temperature
- TF95
- Technical sheet: Marked class
- H
- Technical sheet: Maximum marked pressure
- 0.3 MPa
- Inventory data — Type of spare part
- Pumps
- Inventory data — Condenser
- 2.5 μF
- Inventory data — Application indicated in inventory
- NATUR FC 24/24N
- Inventory data — Marked code
- 1046REM; 59788
- Pending applications to verify
- Unconfirmed application. Commercially assign UPR15-60CESA02/59756514 to Remeha Avanta/Quinta, De Dietrich MCR/MCA, Junkers Euroline/Bosch Gaz3000, and Vaillant atmoTEC/turboTEC. No breakdown or precise variants: search references, not verified compatibilities.
- Four symptoms come from the technical sheet. "No circulation" is a row in the fault code table of the Fagor FC 24/24 manual (section 6.2), without the code E. That manual does not mention the Natur FC 24/24N.
- To confirm: Fagor Natur FC 24 — 1 origin
- To confirm: Remeha Avanta 28c: (with 59756514) and (with UPR15-60 CESA02)
- To be confirmed: De Dietrich MCR — 1 origin: (with 59756514). It is only provided with S62746/7731044: to be confirmed.
- Por confirmar: Remeha Avanta Plus Combi 28C —:
- Por confirmar: Remeha Avanta Exclusive 28C —:
- Por confirmar: Remeha Avanta Plus Combi 24C, 35C y 39C —:
- Por confirmar: Remeha Avanta Plus Eco Combi 28C —:
- Por confirmar: Remeha Avanta Plus System 18S, 24S y 30S —:
- Do not confuse: UPS15-60 CESA02 · 8738725176 — Grundfos UPS pump (not UPR) for Bosch, Junkers, and Neckar — Another designation: do not take it as equivalent.
- MUC080029M: for the Natur FC 24/24 N and another for the pump motor FC 32-35 (another boiler, without link to 59756514). The Remeha codes are: to be confirmed.
- To be confirmed: y unen el 59756514 con la UPR15-60 CESA02 y el 59788. Aplicación registrada para la Natur FC 24/24 N sin citar el 59756514. Sin documento oficial con el código. La Natur FC 24/24N la confirma.
