Grundfos UPS 15-50 AC AO circulator pump · 59965502 · For Fagor FEE-20/2N and FE-20E/2B
The pump circulates the water from the boiler through the heating circuit. It is suspected when the boiler turns on but the water does not circulate and the radiators do not heat up.
- Type of part
- Fagor
- Status
- Refurbished
- Catalogue reference
- 59965502
- Warranty
- 1 year
VAT included OUT OF STOCK
Boilers Fagor compatible with reference 59965502
Fagor with reference 59965502. Two confirmed compatibilities: Fagor FEE-20/2N and Fagor FE-20E/2B. There are three other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FEE-20/2N | Fagor | Contrasted |
| Fagor FE-20E/2B | Fagor | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fagor Ecocompact FE-20E/2N | Fagor | Unconfirmed |
|---|---|---|
| Fagor Superfagor, Contract and Eco-Compact (series) | Fagor | Unconfirmed |
| Fagor FE 24 E | Fagor | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 59965502 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

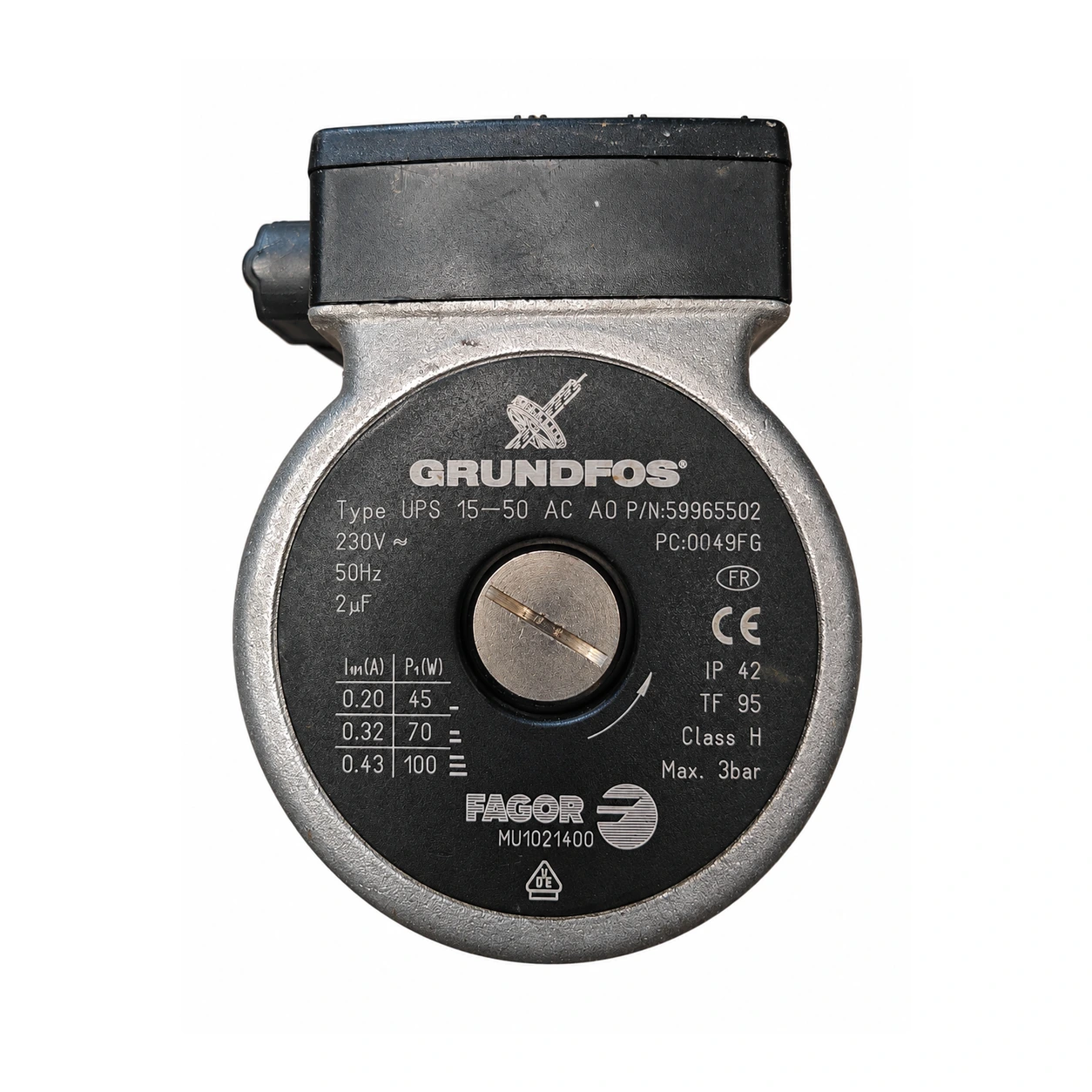

- Look at the pump: it must be Grundfos UPS 15-50 AC AO (or AC A0) and 230 V ~ 50 Hz.
- Compare the marked codes: 59965502, 0049FG, and MU1021400 (the latter is also marked on the pump and with the Fagor brand).
- Do not confuse it with other UPS 15-50 from Grundfos with different codes, such as the UPS 15-50 130 (59525600) or 96281418.
- Check on the PCB of your boiler that it is a Fagor FEE-20/2N or FE-20E/2B.
- Any questions? Send us a photo of your part's label and the boiler's rating plate from Contact.
Symptoms that require diagnosis in the Fagor 59965502
Common symptoms and faults
- 01
The boiler ignites, but the water does not circulate and the radiators do not heat up.
Cause: To confirm: spare parts are attributed to this pump in the Fagor Ecocompact FE-20E/2N. A technician should check if the pump is not spinning or not moving the water before replacing it.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor 59965502
- Catalogue reference
- 59965502
- Uniclima internal SKU
- BOM012
- Brand
- Fagor
- Type of part
- Fagor
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Marked supply
- 230 V ~
- Marked frequency
- 50 Hz
- Marked capacitor
- 2 uF
- Escalon I, I1/P1
- 0.20 A / 45 W
- Escalon II, I1/P1
- 0.32 A / 70 W
- Escalon III, I1/P1
- 0.43 A / 100 W
- Marked protection
- IP42
- TF marked
- 95
- Marked class
- H
- Maximum marked, no filling
- 3 bar
- Inventory — Indicated model
- UPS 15-50 AC A0
- Inventory — Type of spare part
- Pumps
- Inventory — Condenser
- 2 μF
- Inventory — Thermal class
- TF 95
- Inventory — Application indicated in inventory
- FEE-20/2N FE-20E/2B
- Inventory — Marked code
- 0049FG; MU1021400
- Identification — Marked designation
- UPS 15-50 AC AO
- Identification — Marked code
- 59965502
- Identification — Marked code
- 0049FG
- Identification — Marked code
- MU1021400
- Technical sheet: Marked power supply
- 230 V ~
- Technical sheet: Marked frequency
- 50 Hz
- Technical sheet: Marked capacitor
- 2 uF
- Escalon I, I1/P1
- 0.20 A / 45 W
- Escalon II, I1/P1
- 0.32 A / 70 W
- Escalon III, I1/P1
- 0.43 A / 100 W
- Technical sheet: Marked protection
- IP42
- TF marked
- 95
- Technical sheet: Marked class
- H
- Maximo marcado, no llenado
- 3 bar
- Inventory data — Indicated model
- UPS 15-50 AC A0
- Inventory data — Type of spare part
- Pumps
- Inventory data — Condenser
- 2 μF
- Inventory data — Thermal class
- TF 95
- Inventory data — Application indicated in inventory
- FEE-20/2N
- Inventory data — Application indicated in inventory
- FE-20E/2B
- Inventory data — Marked code
- 0049FG; MU1021400
- Pending applications to verify
- Commercial statement from the seller of reference 59965502/MU1021400 (24/10/2026): Fagor FE-24, FE-24E, FE-24NOX, FEE-24, Superfagor, Contract and Eco-Compact. These are mentioned families, not verification of variants. Edesa/Aspes without specific models are not included as compatible.
Before purchasing
- To confirm: Fagor Ecocompact FE-20E/2N: and (MU1021400)
- To confirm: Fagor Superfagor, Contract and Eco-Compact (series), without specific models.
- To confirm: Fagor FE 24 E — and another pump (AS0015925); this is for the FE-24/FE-24E series. Contradictory: compare the code.
- Do not confuse: 59525600 — Grundfos UPS 15-50 130, with its own technical sheet in the official catalog — Another variant: it is not the 59965502.
- Do not confuse: 96281418 — Grundfos UPS15-50 (3 speeds, G 1", 130 mm) from the USA — Another article number; does not mention 59965502 or MU1021400.
- Do not confuse: AS0015925 — Pump that (ref. 280.34.0010) and (RS15/5-3) are for the Fagor FE 24 E — Another code for the FE 24 E in and in (this one is referred to as RS15/5-3). It has not been verified if it is the same pump.
- To confirm: The designation is written as "AC AO" (letter O) in, and "AC A0" (zero) in the title of that.
- To confirm: MU1021400 comes with UPS 15-50 AC AO; the 59965502, only. No official document read mentions its codes: the parts list from Fagor and the PDFs from Grundfos were blocked.
Frequently asked questions: Fagor 59965502
Where is the code for this pump and which one should I compare?
To confirm: On the pump itself, marked: Grundfos UPS 15-50 AC AO, with the codes 59965502, 0049FG, and MU1021400. MU1021400 is marked on the pump and with the Fagor brand: it appears next to UPS 15-50 AC AO in and .
Is it compatible with my Fagor FEE-20/2N or FE-20E/2B?
Yes. Confirmed: for the Fagor FEE-20/2N and for the FE-20E/2B. Additionally, the distributor provides the code MU1021400 for the FEE-20/2N.
Is it compatible with the Fagor Ecocompact FE-20E/2N?
We still don't have it confirmed for the FE-20E/2N. They provide the MU1021400 with the UPS 15-50 AC AO for that boiler. Confirmed: the FE-20E/2B: the suffix changes (2N versus 2B), so compare the PCB of your boiler or send us a photo from Contact.
What does each code mean: 59965502, 0049FG, and MU1021400?
UPS 15-50 AC AO is the Grundfos designation for the pump. 59965502 is its part number (marked on the pump and cited by ). MU1021400 is also marked on the pump: with the Fagor brand and referred to as Fagor's internal code. The 0049FG is marked on the pump, but we have not found any external confirmation that explains it.
Is another Grundfos UPS 15-50, like the 59525600, acceptable?
To confirm: Not without checking the code. The Grundfos catalog gives the UPS 15-50 130 its own technical sheet (59525600), and the UPS15-50 with the article 96281418. Neither mentions 59965502 nor MU1021400, so we do not consider them equivalent.
Is it compatible with the Fagor FE 24 E?
We do not have it confirmed and there are contradictions. For the FE 24 E, the pump AS0015925 (referred to as RS15/5-3) is given as UPS 15-50 AC A0 for the FE-24 and FEE-24 series. Compare the code before ordering it or send us a photo from Contact.
Who should install it and what information is marked on it?
We recommend that it be installed by a qualified technician. The unit is rated at 230 V ~ 50 Hz, with a capacitor of 2 µF, three steps (45, 70, and 100 W), and IP42.
What is the reference for this pump?
59965502 · UPS15-50 AC AO
What power supply does it need?
230 V at 50 Hz.
