Fagor N47G000M1 circulator pump · Grundfos UPS15-50 S1 CIL130 · 59505562
It circulates water through the heating circuit. It is suspected due to noises, buzzing, vibrations, leaks at the head, or a seized rotor after a long stop.
- Type of part
- Fagor
- Status
- Refurbished
- Catalogue reference
- 59505562
- Warranty
- 1 year
VAT included OUT OF STOCK
compatible with reference 59505562
Fagor with reference 59505562. Four confirmed compatibilities: Fagor CE-20 EN and Fagor FEB-20 EN. There are another 5 models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor CE-20 EN | Fagor | Contrasted |
| Fagor FEB-20 EN | Fagor | Contrasted |
| Fagor FEB-20E/1 N | Fagor | Contrasted |
| Fagor FEB-20E H/1 N | Fagor | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fagor CE-20E/1 N | Fagor | Unconfirmed |
|---|---|---|
| Fagor FA-20 N | Fagor | Unconfirmed |
| Fagor FE-20E | Fagor | Unconfirmed |
| Fagor FA-20E N · FA-20E2F/1 N · CA-20 N · FEE-20/1 N · CE-20E/1GLP | Fagor | Unconfirmed |
| Fagor FEB 20 E UK-1 N · FEB 20 EF-1 N | Fagor | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 59505562 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

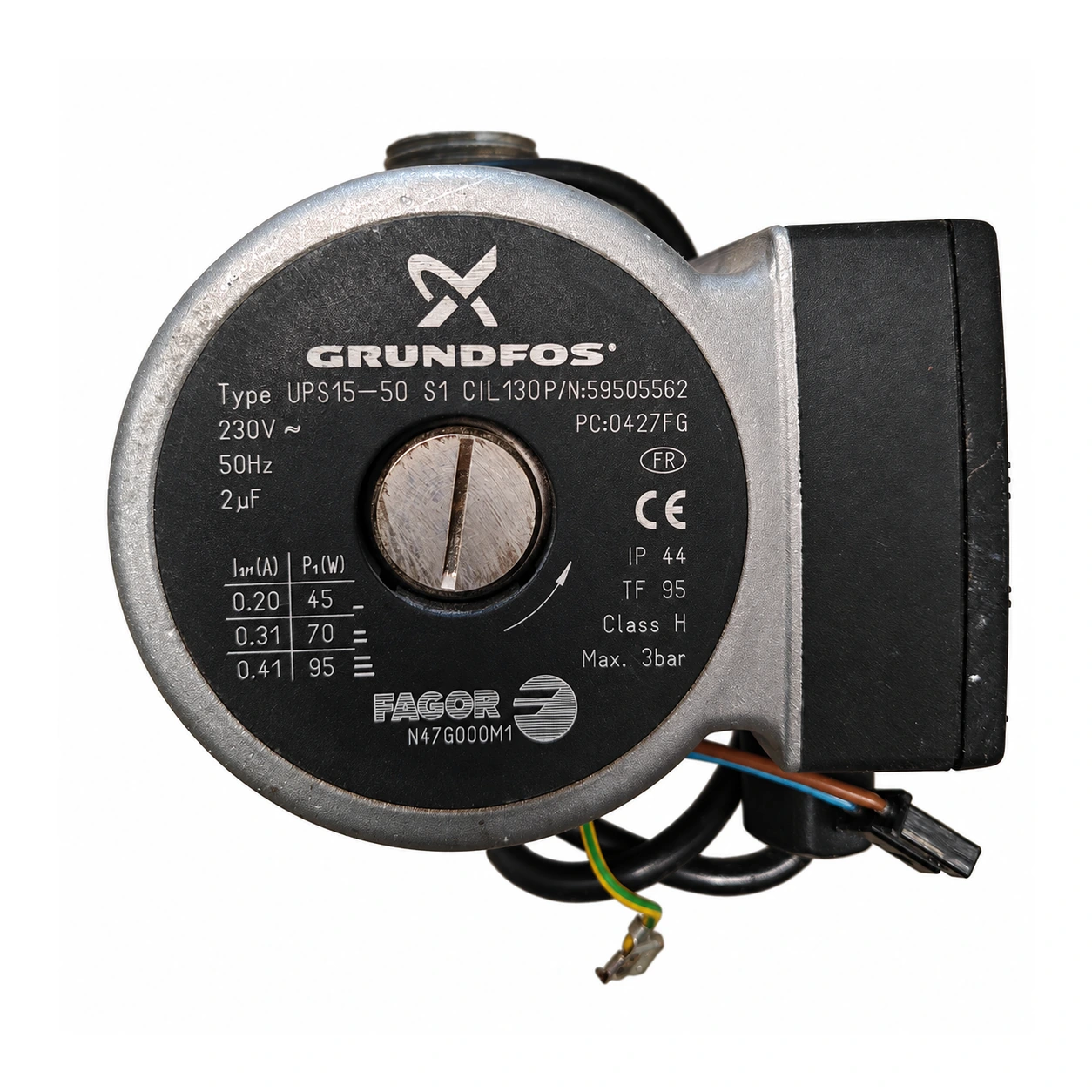

- Look at the pump: it must have the type UPS15-50 S1 CIL130 and the code Fagor N47G000M1 (also marked 0427FG).
- Check that its P/N Grundfos is 59505562: "UPS 15-50" alone is not enough.
- Compare the connections: 1" thread and 130 mm between threads.
- Check that your boiler is a Fagor CE-20 EN or FEB-20, confirmed.
- Any questions? Send us a photo of your part's label and the boiler's rating plate from Contact.
Symptoms that require diagnosis in the Fagor 59505562
Common symptoms and faults
- 01
Noises, buzzing, or intense vibrations in the hydraulic body.
Cause: To confirm: It is scheduled for this pump; have a technician check it.
- 02
The rotor shaft gets stuck after a long stop.
Cause: To confirm: It is scheduled for this circulator; have a technician check it.
- 03
Small leaks or drips at the pump head.
Cause: To confirm: It is scheduled for this pump; have a technician check it.
- 04
Stops due to overheating due to lack of circulation.
Cause: To confirm: He cites it as a consequence of the blockage.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor 59505562
- Catalogue reference
- 59505562
- Uniclima internal SKU
- BOM015
- Brand
- Fagor
- Type of part
- Fagor
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Power supply
- 230 V~, 50 Hz
- Protection
- IP44
- Marked capacitor
- 2 uF
- Current / power I
- 0.20 A / 45 W
- Current / power II
- 0.31 A / 70 W
- Current / power III
- 0.41 A / 95 W
- Set temperature
- TF95
- Marked class
- H
- Maximum pressure marked
- 3 bar
- Inventory — Type of spare part
- Pumps
- Inventory — Condenser
- 2 μF
- Inventory — Insulation
- class H
- Inventory — Application indicated in inventory
- CE - 20 EN FEB - 20 EN
- Inventory — Marked code
- N47G000M1; 0427FG
- Technical data — Speeds
- To confirm: 3
- Technical data — Connections
- 1" thread · 130 mm between threads · (to be confirmed)
- Technical data — Protection · temperature
- IP44 · TF95 · + label
- Technical data — Power · condenser
- 45 / 70 / 95 W · 2 µF · + label
Before purchasing
- Before handling the hydraulic components, the boiler circuit must be drained and the power supply disconnected.
- To confirm: Fagor CE-20E/1 N. with reference 912010692, which search extracts assign to a washing machine; without clarification.
- To confirm: Fagor FA-20 N
- To confirm: Fagor FE-20E: (FE 20 E-1 N)
- To confirm: Fagor FA-20E N · FA-20E2F/1 N · CA-20 N · FEE-20/1 N · CE-20E/1GLP
- To confirm: Fagor FEB 20 E UK-1 N · FEB 20 EF-1 N
- Do not confuse: MU1021400 — Fagor reference "BOMBA UPS 15-50" from the catalog — It is not confirmed that it is the same part: compare with N47G000M1.
- Do not confuse: N47G005M0 — Fagor reference "GRUNDFOSS PUMP" from the catalog — It is not confirmed that it is the same part: compare with N47G000M1.
- Morco lists FCB1125 as a pump for its FEB20E, but its website does not mention N47G000M1: we do not consider it as equivalent.
- N47G000M1 appears in and confirms it; the P/N 59505562, in 2. No official document. An unopened extract shows UPS 15-60 and marks 0409fg (not 0427FG): sends. And they give a different device code for the FEB-20E/1 N.
Frequently asked questions: Fagor 59505562
Where is the code for this pump and what markings should I compare?
The unit is marked with the type UPS15-50 S1 CIL130 and the Fagor code N47G000M1; its P/N Grundfos is 59505562. It also has the marking 0427FG, which does not appear without additional confirmation (the sample sheet "PC: 0409fg" next to the P/N, without explanation). First, compare the P/N and the Fagor code.
Is it compatible with my Fagor CE-20 EN or FEB-20 EN?
Yes. Confirmed: for the Fagor CE-20 EN and for the FEB-20 EN. Additionally, they provide the N47G000M1 or the P/N 59505562 for the FEB-20E/1 N: .
What other Fagor boilers are compatible with the N47G000M1?
the FEB-20E/1 N. With 3, the FEB-20E H/1 N. With 2, the FA-20 N and the FE-20E. With one, the CE-20E/1 N, the FA-20E N, the FA-20E2F/1 N, the CA-20 N, the FEE-20/1 N, the CE-20E/1GLP, the FEB 20 E UK-1 N and the FEB 20 EF-1 N. If your model is not listed, send us a photo of the pump label and the boiler plate from the Contact section, or call 911 17 77 77.
What do N47G000M1, 59505562, and UPS15-50 S1 CIL130 mean?
N47G000M1 is the Fagor code for this circulation pump (catalog and more). 59505562 is the P/N from Grundfos that they provide. UPS15-50 S1 CIL130 is the type of the Grundfos circulator. According to N47G001M9, MU1203100, MU1250200, and MUR000003, they are replaced by the FAGN47G000M1, internal code for this part: one only, to be confirmed.
Can I replace it with another Grundfos UPS 15-50?
It is not enough to just specify UPS 15-50. This variant is the UPS15-50 S1 CIL130, P/N 59505562, marked Fagor N47G000M1. It has a 1" thread and 130 mm between threads for the pump N47G000M1. Another P/N needs documented equivalence.
What symptoms indicate that this pump is failing?
Technical sheet: noise, buzzing or intense vibrations in the hydraulic body, stuck rotor after a long stop, leaks in the head and shutdowns due to overheating from lack of circulation. None of these alone confirms the fault: have a technician diagnose it before replacing it.
Who should install it and what needs to be done beforehand?
A qualified technician, as recommended in the technical sheet. First, the boiler circuit must be drained and the power supply disconnected: the pump operates at 230 V~ and 50 Hz.
What pressure should the heating system have with the boiler cold?
In cold conditions, the heating usually operates between 1 and 1.5 bar; this is also the range indicated for the Fagor FEB-20E. The 3 bar on the label is the maximum limit set for the circulator, not a recommended filling pressure.
Why does the hot water work but the radiators do not heat up?
In the Fagor FEB-20E with a bivalent heat exchanger, the pump belongs to the heating circuit. The domestic hot water and heating do not run through the same hydraulic circuit. The lack of heating may be due to a blocked pump, the room thermostat, or the service selector; having hot water alone does not identify which one is faulty.
When should the circulation pump be replaced?
When the diagnosis confirms a fault in the circulator, not just because the radiators are cold. In the FEB-20E, the lack of heating can also be due to the thermostat or the selector; the noise may come from air or insufficient pressure. A replacement must maintain the correct variant and connections.
