Grundfos UP15-50 A0 circulator pump /FG · N47G005M0 · Fagor FE 24 EMA N
It circulates hot water through the heating circuit of the boiler. It is suspected when the radiators do not heat up with the boiler on or the pump buzzes without turning the shaft.
- Type of part
- Fagor
- Status
- Refurbished
- Catalogue reference
- N47G005M0
- Warranty
- 1 year
VAT included OUT OF STOCK
compatible with reference N47G005M0
Fagor with reference N47G005M0. Two confirmed compatibilities: Fagor FE 24 EMA N and Fagor FE 24 EC-1 N (912011236). There are another 7 models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE 24 EMA N | Fagor | Contrasted |
| Fagor FE 24 EC-1 N (912011236) | Fagor | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fagor FE 24 EMA-1 B (912011227) | Fagor | Unconfirmed |
|---|---|---|
| Fagor FE 24 EC-1 B (912011245) | Fagor | Unconfirmed |
| Fagor FEE 24 MA-1 N (912011192) | Fagor | Unconfirmed |
| Fagor FEE 24 MA-1 B (912011209) | Fagor | Unconfirmed |
| Fagor FEE 26 MA-1 N (912012075) | Fagor | Unconfirmed |
| Fagor FEE 26 MA-1 B (912012093) | Fagor | Unconfirmed |
| Fagor A. O. Smith JLG24-EB (912470034) | Fagor | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference N47G005M0 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

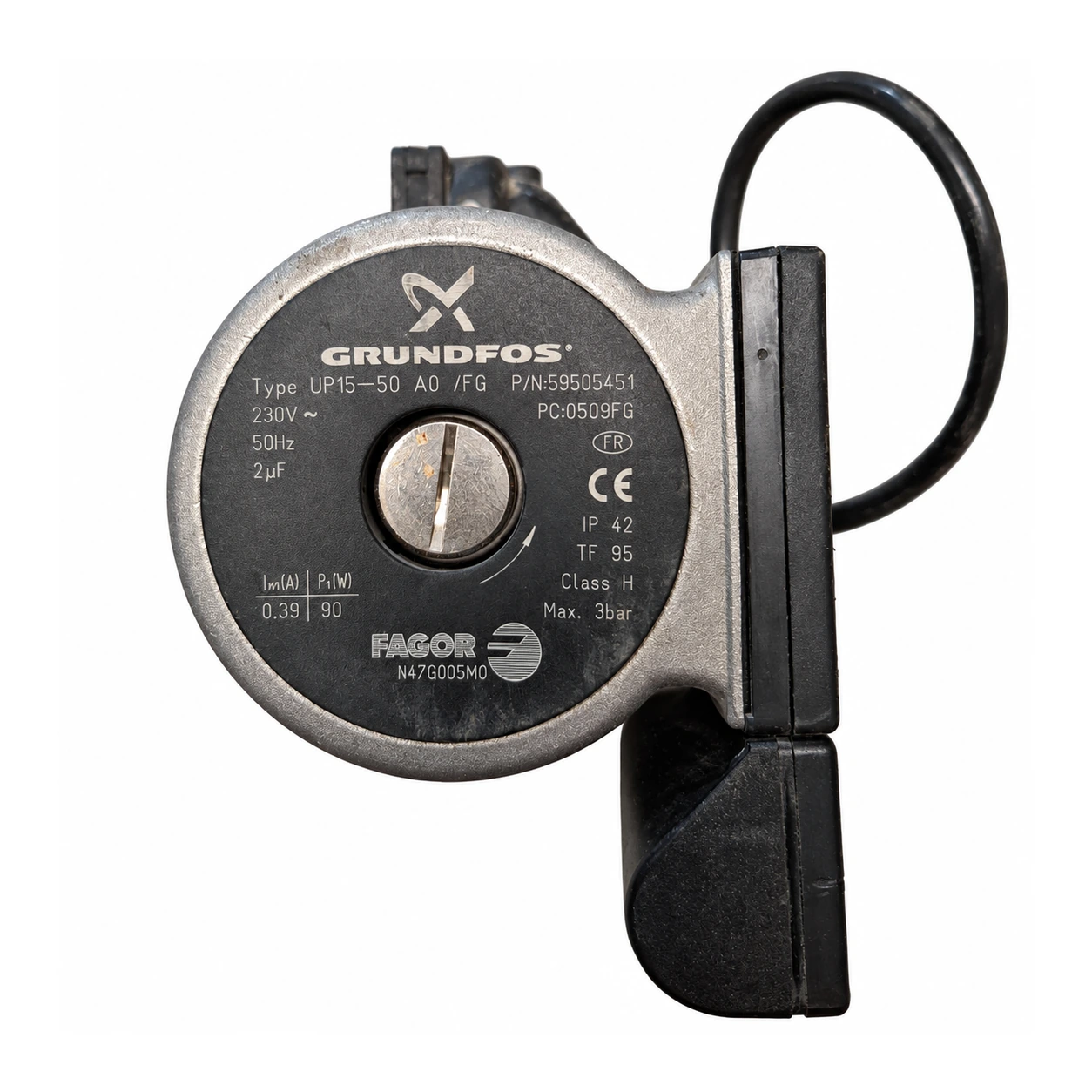

- Look for the label on your pump motor: the reference N47G005M0 goes along with the voltage and power.
- Compare the complete marking with that of this unit: UP15-50 A0 /FG, 59505451 and 0509FG. The entire designation must match.
- Also look at 230 V · 50 Hz, 90 W · 0.39 A and a 2 µF capacitor, and pay attention to the number of speeds and the type of electrical connector.
- Do not confuse it with other Grundfos pumps 15-50 (UP 15-50 AO F6, UPS 15-50): they are different designations.
- If they match, call us at 911 17 77 77 with your boiler model and we will reserve it for you.
Symptoms that require diagnosis in the Fagor N47G005M0
Common symptoms and faults
- 01
Cold radiators while the boiler starts up
Cause: To confirm: it is mentioned as a sign of a faulty pump. There may be other causes: have a technician check it.
- 02
Electrical buzzing without the shaft rotating
Cause: Fault signal of a faulty pump according to the same.
- 03
Continuous boiler lockouts due to lack of flow
Cause: It also mentions it among the signs of a faulty pump.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor N47G005M0
- Catalogue reference
- N47G005M0
- Uniclima internal SKU
- BOM009
- Brand
- Fagor
- Type of part
- Fagor
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Power supply
- 230 V; 50 Hz
- Marked capacitor
- 2 uF
- Marked consumption
- 90 W; 0.39 A
- Protection
- IP42; TF95; Class H
- Maximum pressure marked
- 3 bar
- Inventory — Type of spare part
- Pumps
- Inventory — Condenser
- 2 μF
- Inventory — Application indicated in inventory
- FE 24 EMA N
- Inventory — Marked code
- 59505451; 0509FG
- Width measurements of — Width
- 95 mm
- To confirm: Dimensions of the — Length
- 160 mm
- Height measurements of the technical sheet — Height
- 150 mm
- Identification — Marked designation
- UP15-50 A0 /FG
- Identification — Marked code
- 59505451
- Identification — Marked code
- N47G005M0
- Identification — Marked code
- 0509FG
- Technical sheet: Power supply
- 230 V; 50 Hz
- Technical sheet: Marked capacitor
- 2 uF
- Technical sheet: Marked consumption
- 90 W; 0.39 A
- Technical sheet: Protection
- IP42; TF95; Class H
- Technical sheet: Maximum marked pressure
- 3 bar
- Inventory data — Type of spare part
- Pumps
- Inventory data — Condenser
- 2 μF
- Inventory data — Application indicated in inventory
- FE 24 EMA N
- Inventory data — Marked code
- 59505451; 0509FG
- Pending applications to verify
- Registered application: «FEE-24MA N» for the linked offer. Seller's commercial application, pending verification by parts breakdown and variant before assembly; does not confirm compatibility of this unit on its own.
Before purchasing
- To confirm: These symptoms come from the spare parts text, not from a manufacturer's manual.
- To confirm: Fagor FE 24 EMA-1 B (912011227) —; it is listed under the family FE-24EMA, without separating N and B.
- To confirm: Fagor FE 24 EC-1 B (912011245):
- To confirm: Fagor FEE 24 MA-1 N (912011192) —; and they list it as FEE-24MA N (without "-1")
- To confirm: Fagor FEE 24 MA-1 B (912011209):
- To confirm: Fagor FEE 26 MA-1 N (912012075):
- To confirm: Fagor FEE 26 MA-1 B (912012093):
- To confirm: A. O. Smith JLG24-EB (912470034):
- Do not confuse: UP 15-50 AO F6 — Pump from the UP 15-50 AO family that serves as the original for the Super Compact FE 24 EMA — It does not carry the marking A0 /FG nor N47G005M0; it also sells the N47G005M0 for that family and declares them equivalent without additional confirmation.
- Do not confuse: UPS 15-50 — Grundfos Series with another designation (UPS instead of UP) — without additional confirmation, it links to N47G005M0; always compare the complete designation.
- The last character of N47G005M0 is a zero. The designation is written as "A0" (zero) or "AO" (letter O). It only provides UP 15-50 A0 /FG along with N47G005M0; without additional confirmation, it does not explain 59505451 or 0509FG.
- N47G005M0 as Fagor pump; three connect it to the FE 24 EMA. No official breakdown; UP 15-50 A0 /FG only in one. titles its sheet «Fee26 Man» but lists the FE 24 EMA-1 N: the workshop confirmation does not change.
Frequently asked questions: Fagor N47G005M0
Where is the code for this pump and what should I compare?
The reference N47G005M0 is on the motor label, alongside the voltage and power. This unit also indicates UP15-50 A0 /FG, 59505451 and 0509FG, 230 V · 50 Hz, 90 W · 0.39 A, IP42 and class H. Compare the entire designation, not just the number.
Is it compatible with my Fagor FE 24 EMA N?
Yes. Confirmation registered: this pump for the FE 24 EMA N. Application registered for the FE 24 EMA-1 N (912011218) and it is placed in its SUPERCOMPACT FE-24EMA family, without separating N or B.
Is it compatible with other Fagor boilers?
The FE 24 EC-1 N (912011236) is linked to N47G005M0, without an official breakdown. They also list FE 24 EMA-1 B, FE 24 EC-1 B, FEE 24 MA-1 N and B, and FEE 26 MA-1 N and B; and provide the FEE-24MA N. With 1 or it remains to be confirmed: send us a photo of your pump's label and your boiler's PCB from Contact, or call 911 17 77 77.
What do N47G005M0, UP15-50 A0 /FG, 59505451, and 0509FG mean?
N47G005M0 is the reference for this pump for Fagor boilers: it is referred to as "OEM Reference" and "Original Code." UP15-50 A0 /FG is the Grundfos designation marked on the pump; it only links it to N47G005M0. Without further confirmation, 59505451 or 0509FG is not explained.
Is it the same as the UP 15-50 AO F6 or the UPS 15-50?
It is not proven. It offers as original for the Super Compact FE 24 EMA a pump "UP 15-50 AO F6", in another sheet, the N47G005M0 for that family; Grundfos also has the UPS 15-50 series. Without additional confirmation, it does not link them to N47G005M0 or UP15-50 A0 /FG: compare the full designation.
What symptoms point to this pump?
To confirm: from spare parts, it mentions cold radiators while the boiler turns on, an electrical buzzing without the shaft rotating, and continuous lockouts due to lack of flow. These may be due to other causes, so it's advisable for a technician to diagnose it before replacing the pump.
Who should install it and what needs to be checked?
A qualified technician: the pump is attached to the hydraulic body of the heating circuit, the circuit needs to be drained and electrical connections of 230 V must be handled. Before installing it, check the number of speeds and the type of electrical connector.
What is the reference for this pump?
N47G005M0 · UP15-50 AO/FG
What power supply does it need?
230 V at 50 Hz.
