Grundfos UP15-60 S2 AO/FG circulator pump · 59506473 for Fagor FEE-35 MAN
The circulation pump moves the water through the boiler circuit. It is suspected when the original needs to be replaced due to a fault or wear.
- Type of part
- Fagor
- Status
- Refurbished
- Catalogue reference
- 59506473
- Warranty
- 1 year
VAT included OUT OF STOCK
Boilers Fagor compatible with reference 59506473
Fagor with reference 59506473. A confirmed compatibility: Fagor FEE-35 MAN. There are 3 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FEE-35 MAN | Fagor | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fagor FE-20E/2 N | Fagor | Unconfirmed |
|---|---|---|
| Fagor FE-27 EMA N | Fagor | Unconfirmed |
| Fagor FC 32/35 N | Fagor | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if reference 59506473 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

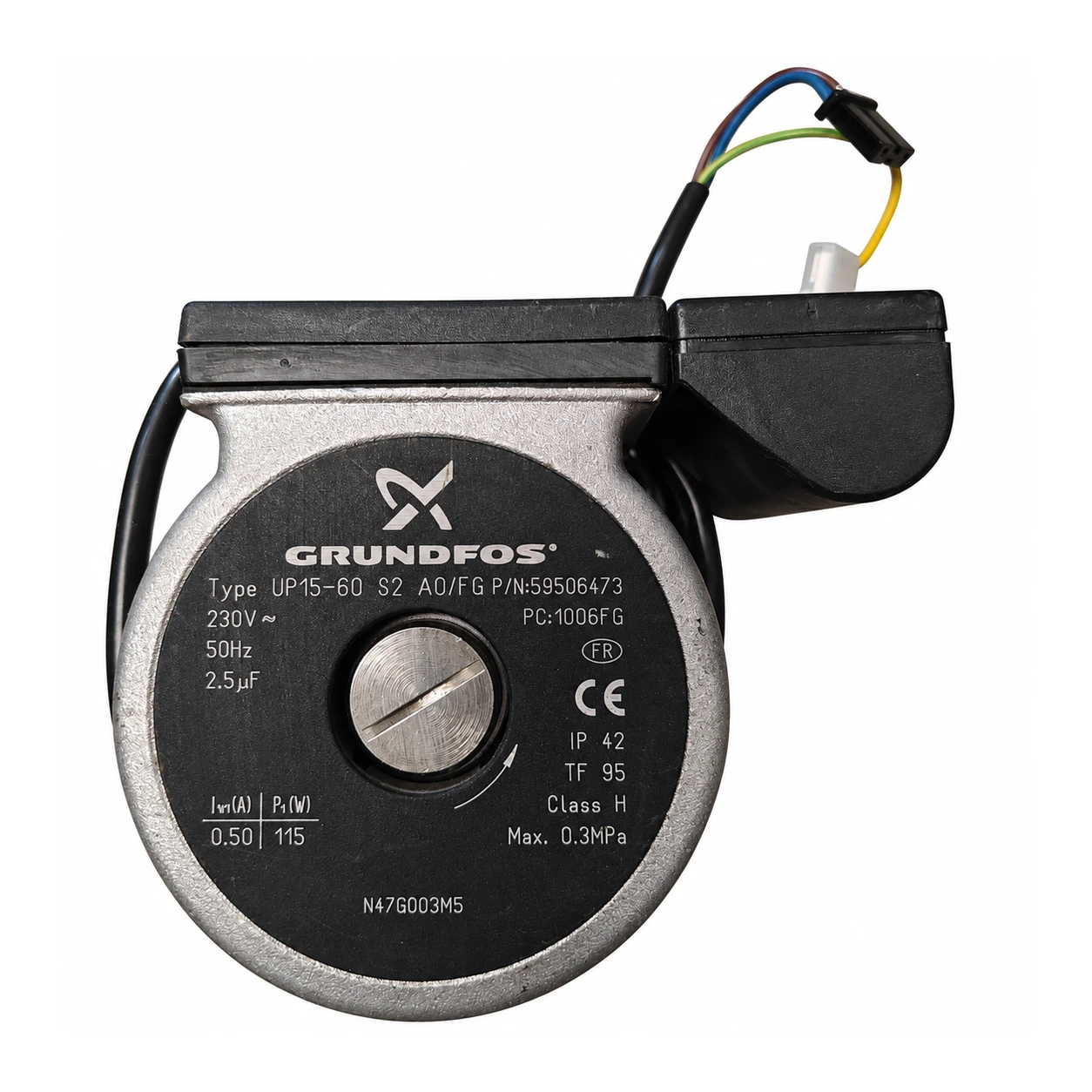

- Check the label on your pump: it should say Grundfos UP15-60 S2 AO/FG and be marked 59506473. It also shows 1006FG and N47G003M5.
- Compare the full model name and the data on the PCB: 230 V ~ 50 Hz, 115 W, 0.50 A, and a capacitor of 2.5 µF.
- Check on the rating plate that your boiler is a Fagor FEE-35 MAN: this is the model that has been confirmed.
- Do not rely solely on one code: the N47G003M5 for other Fagor without mentioning the 59506473. Compare the complete model and the 59506473.
- Any questions? Send us a photo of your part's label and the boiler's rating plate from Contact.
Fagor 59506473
- Catalogue reference
- 59506473
- Uniclima internal SKU
- BOM010
- Brand
- Fagor
- Type of part
- Fagor
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Marked supply
- 230 V ~
- Marked frequency
- 50 Hz
- Marked capacitor
- 2.5 µF
- Marked intensity
- 0.50 A
- Rated power P1
- 115 W
- Marked protection
- IP42
- TF marked
- 95
- Marked class
- H
- Maximum marked, no filling
- 0.3 MPa
- Inventory — Indicated model
- UP15-60 S2 A0/FG
- Inventory — Type of spare part
- Pumps
- Inventory — Condenser
- 2.5 μF
- Inventory — Thermal class
- TF 95
- Inventory — Insulation
- class H
- Inventory — Application indicated in inventory
- FEE-35 MAN
- Identification — Marked code
- 59506473
- Identification — Marked code
- 1006FG
- Identification — Marked code
- N47G003M5
- Technical sheet: Marked power supply
- 230 V ~
- Technical sheet: Marked frequency
- 50 Hz
- Technical sheet: Marked capacitor
- 2.5 µF
- Technical sheet: Marked intensity
- 0.50 A
- Technical sheet: Rated power P1
- 115 W
- Technical sheet: Marked protection
- IP42
- TF marked
- 95
- Technical sheet: Marked class
- H
- Maximo marcado, no llenado
- 0.3 MPa
- Inventory data — Indicated model
- UP15-60 S2 A0/FG
- Inventory data — Type of spare part
- Pumps
- Inventory data — Condenser
- 2.5 μF
- Inventory data — Thermal class
- TF 95
- Inventory data — Insulation
- class H
- Inventory data — Application indicated in inventory
- FEE-35 MAN
Before purchasing
- To confirm: Fagor FE-20E/2 N — 1 origin for the code N47G003M5; it does not mention 59506473.
- To confirm: Fagor FE-27 EMA N — 1 origin for the code N47G003M5; it does not mention 59506473.
- To confirm: Fagor FC 32/35 N — 1 origin for the code N47G003M5; it does not mention 59506473.
- Do not confuse: N47G000M1 — Fagor water pump with another reference — the list for FEB20/E/1N, FEB20E, CA20E, and FA20E2; it is a different code from the N47G003M5 marked on this pump.
- No confundir: N47G007M6 — Referencia OEM Fagor que asigna a la UP 15-60 A0/FG reacondicionada — la da para FE-24 NOX, FE-27 NOX y FE-35 NOX; no cita 59506473, N47G003M5 ni la FEE-35 MAN. Es un código distinto del marcado en nuestra bomba.
- To be confirmed: AO/FG (letra O) y A0/FG (cero) son la misma bomba. que citan el N47G003M5 no mencionan el 59506473 ni la UP15-60. da otro OEM, N47G007M6, para la UP 15-60 A0/FG y calderas NOX; la nuestra lleva marcado N47G003M5.
- Part, codes, and boiler confirmed. The N47G003M5, marked on the pump, as Fagor code: / as circulation pump and as water pump. None mention 59506473 or the FEE-35 MAN. Another one gives the OEM N47G007M6 for the UP 15-60 A0/FG.
Frequently asked questions: Fagor 59506473
What codes does this pump have and which one should I compare with mine?
The model is Grundfos UP15-60 S2 AO/FG, and the part number 59506473 is listed as the component P/N in our technical sheet, while 1006FG is referred to as "PC". Start with the model and the 59506473 on your pump's label and also compare the other two. Without any additional external confirmation that we have read, explain what 1006FG designates.
Is it compatible with my Fagor FEE-35 MAN?
Yes. Confirmation registered: this pump for the Fagor FEE-35 MAN. No external page we have read links the 59506473 to that boiler (we have not found its official parts list), so the confirmation is as stated. Check the complete model on the label of your boiler: we do not assume it is compatible with similarly named variants.
What is the N47G003M5 marked on the pump?
Es uno de los códigos marcados en esta bomba. independientes lo dan como código Fagor: / como bomba de circulación (FE-20E/2 N y FE-27 EMA N; lo guarda como FAN47G003M5) y como bomba de agua (FC 32/35 N). Ninguna cita el 59506473 ni la UP15-60, así que por sí solas no prueban que sea exactamente esta bomba. Otra da un código Fagor distinto, N47G007M6, para la UP 15-60 A0/FG.
Is it compatible with the Fagor FE-20E/2 N, the FE-27 EMA N, the FC 32/35 N, or another boiler?
Only the FEE-35 MAN is confirmed. For the other three, the only one is (/ for the FE-20E/2 N and the FE-27 EMA N; for the FC 32/35 N) and it only mentions the N47G003M5, not the 59506473: it remains to be confirmed. Compare the model and the 59506473 with those of your pump, send us a photo from Contact or call 911 17 77 77.
Is the model written as AO/FG or A0/FG?
In our data for this unit, it appears in both forms, with the letter O and with the number zero, and they refer to the same pump. Try both spellings when searching, as well as 1006FG or 59506473. Pay attention to the full name: the marked codes do not alone certify compatibility with other variants of the UP15-60.
What electrical data is marked and which ones should I compare?
It is marked 230 V ~, 50 Hz, 115 W (P1), 0.50 A and a capacitor of 2.5 µF, with IP42 protection, class H insulation and thermal class TF 95. It also indicates a maximum of 0.3 MPa (3 bar). These are the values of the photographed unit, not operating measurements: compare them with those of your original pump.
Can I install it myself or should a technician do it?
It is advisable to have it installed by a qualified technician: it operates at 230 V and is connected to the boiler's water circuit. It must be installed and tested with the boiler de-energized and the circuit depressurized.
What is the reference for this pump?
59506473 · UP15-60 S2 AO/FG
What power supply does it need?
230 V at 50 Hz.
