Grundfos UPS 15-50 130 Circulating Pump for Fagor FEB-20 E/1N · 59505401
To confirm: It is the circulator that moves the water in the heating circuit; Fagor spare parts places it attached to the hydraulic body. It is suspected when there are cold radiators even though the boiler ignites, noises or vibrations, leaks in the body, or rotor blockage after a long period of inactivity.
- Type of part
- Fagor
- Status
- Refurbished
- internal SKU
- BOM062
- Warranty
- 1 year
Compatible Fagor boilers
Fagor. Four confirmed compatibilities: Fagor FE-20 E/1N and Fagor FA-20 E/2N. There are 2 other models that we are still verifying.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE-20 E/1N | Fagor | Contrasted |
| Fagor FA-20 E/2N | Fagor | Contrasted |
| Fagor FEE 20/1N | Fagor | Contrasted |
| Fagor FEB-20 E/1N | Fagor | Contrasted |
Models pending verification
These models are associated with this reference, but we have not finished verifying them yet, so we do not consider them compatibleIf your boiler is one of them, send us a photo of the part you are going to replace and we will verify it before you purchase.
| Fagor CE 20EN Ecoplus | Fagor | Unconfirmed |
|---|---|---|
| Fagor Contract CE 20E 1N | Fagor | Unconfirmed |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if it is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

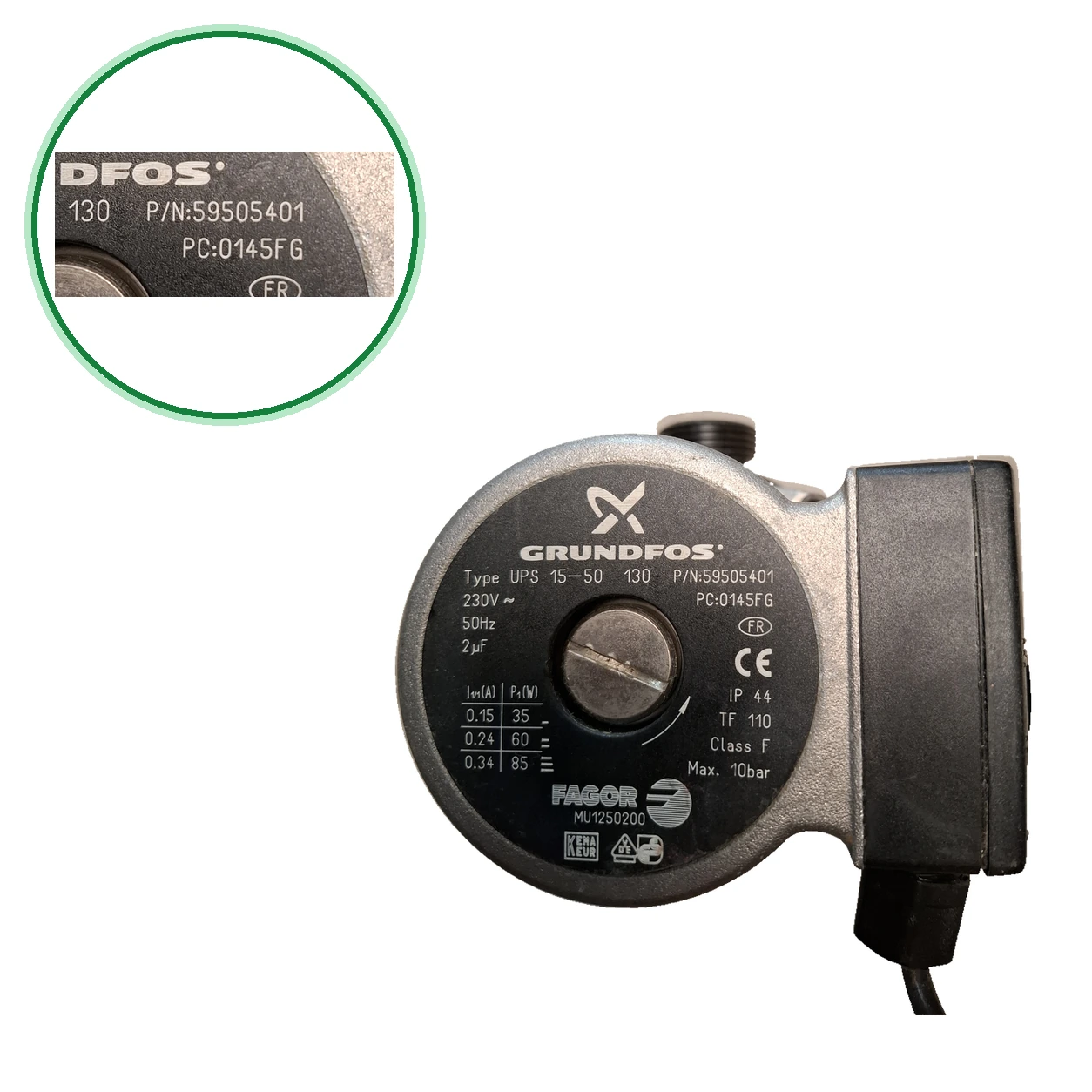

- Check the label on your pump motor: it should say UPS 15-50 130, P/N 59505401, Fagor code MU1250200, and "PC" code 0145FG.
- Be careful with other UPS 15-50 130 from Fagor: there are technical sheets with MU1203100 (CE 20E 1N) or with P/N 59505562 (FEB 20E 1N). If your label has a different code, send us the photo before ordering it.
- Measure the distance between the two openings (130 mm) and check the number of speeds (this unit has 3) and the type of electrical connector.
- Check on the PCB of your boiler that it is a FE-20 E/1N, FA-20 E/2N, FEE 20/1N or FEB-20 E/1N.
- If they match, call us at 911 17 77 77 with your boiler model and we will confirm if it is available. Any questions? Send us a photo of your pump's label from Contact.
Symptoms that require diagnosis in the Fagor.
Common symptoms and faults
- 01
Cold radiators even though the boiler starts correctly.
Cause: Check if the pump is rotating and moving the water in the heating circuit.
- 02
Excessive noise or vibrations inside the pump.
Cause: Fagor spare parts relates it to this pump: check if the noise is coming from it.
- 03
Rotor lock after a long period of inactivity.
Cause: If the pump does not rotate after being idle for a long time, check it.
- 04
Visible water leaks on the body of the pump.
Cause: Check if the water comes out of the pump itself.
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor
- Uniclima internal SKU
- BOM062
- Brand
- Fagor
- Type of part
- Fagor
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Commercial reference (P/N)
- 59505401
- Fagor code
- MU1250200
- Marked code "PC"
- 0145FG
- Power supply
- 230 V~
- Frequency
- 50 Hz
- Condenser
- 2 µF
- Intensity and power per speed
- I: 0.15 A / 35 W; II: 0.24 A / 60 W; III: 0.34 A / 85 W
- Degree of protection
- IP44
- Thermal class
- TF110
- Insulation class
- F
- Maximum pressure
- 10 bar
- Source of additional data
- Declared information; auxiliary references and applications without equivalent from the accredited manufacturer.
- Inventory — Speeds I/II/III
- I1/P1 0.15 A/35 W; 0.24 A/60 W; 0.34 A/85 W
- Additional data — Voltage and frequency
- 230 V · 50 Hz ·
- Additional data — Capacitor
- 2 µF
- Additional information — Protection
- IP44
- Additional data — Insulation class
- F ·
- Additional data — Thermal class
- TF110
- Additional data — Maximum pressure
- 10 bar
- Additional data — Distance between outlets
- 130 mm
- To confirm: If the safety lock trips due to lack of circulation, a symptom associated with this pump, have a technician check the circuit before replacing the spare part.
- To confirm: Fagor CE 20EN Ecoplus — 1 origin: with P/N 59505401
- To confirm: Fagor Contract CE 20E 1N — 1 origin: from spare parts (referencing MU1203100, not MU1250200)
- Do not confuse: MU1203100 — Fagor reference for a UPS 15-50 130 pump for the CE 20E 1N — It is another code: yours is MU1250200 (P/N 59505401). Compare the label.
- Do not confuse: 59505562 — P/N of the Grundfos UPS15-50 S1 CIL130 that is compatible with the Fagor FEB 20E 1N — Another P/N (yours is 59505401); another sheet refers to it as PC 0409fg and TF95. Without additional confirmation, it links it to your pump.
- Do not confuse: 59505500 — Grundfos product number for the UPS 15-50 130 in their U.S. catalog — It is not your P/N (59505401) and without additional confirmation, they are equivalent. Compare the label.
- A listing gives MU1250200 as "new ref." FAGN47G000M1. N47G000M1 appears as UPS 15-50 130 pump for Fagor, but another sheet links it to P/N 59505562: equivalence not confirmed. A listing also gives MU1021400 "UPS 15-50 PUMP": we do not know if it is the same. Compare the label.
- Confirmed boilers. The P/N 59505401 appears in one listing and MU1250200 in another; the model UPS 15-50 130 for Fagor is mentioned, along with other codes and P/N.
