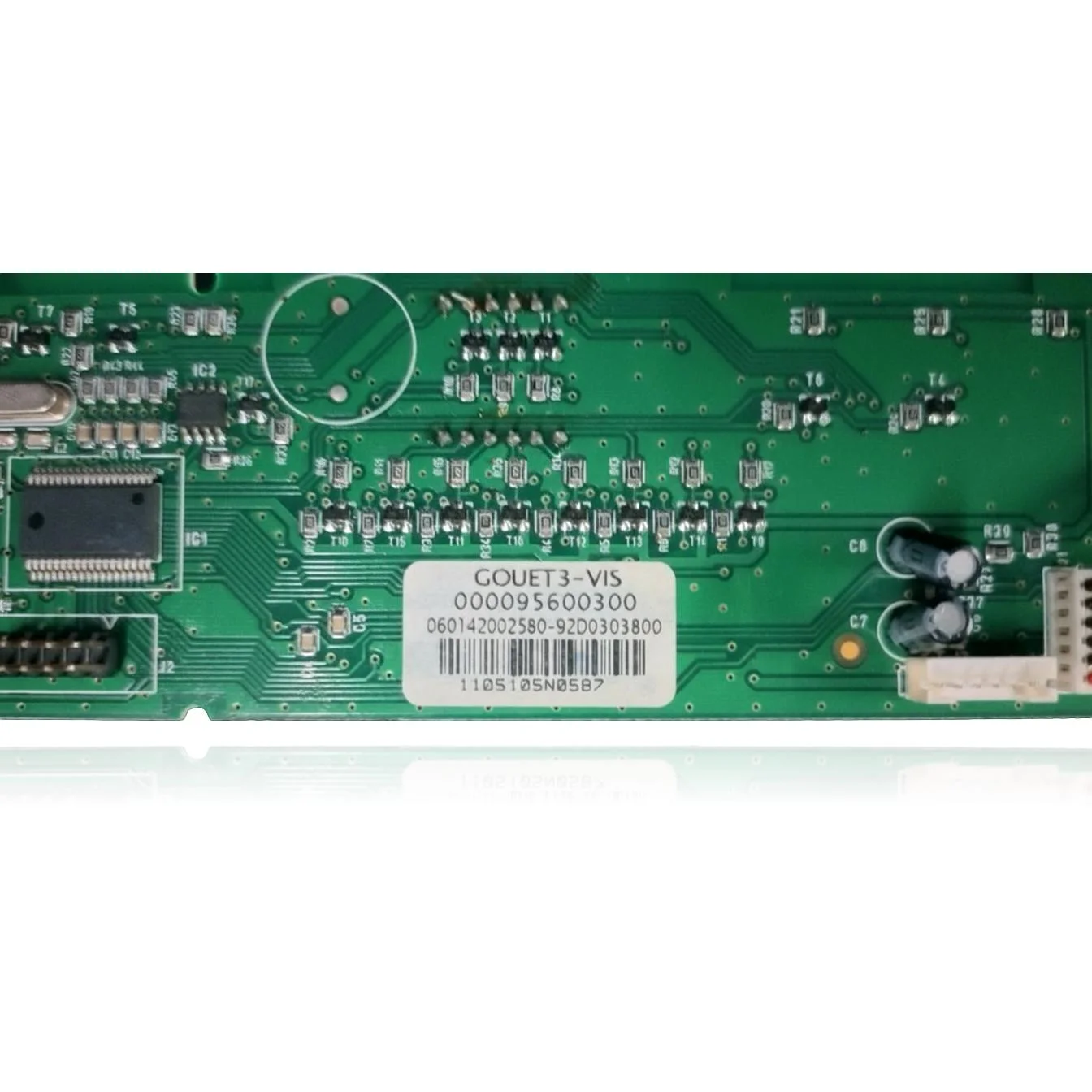

Chaffoteaux Regulation PCB Control Display Niagara Delta 30 FF Ref. 61307041
If the boiler does not start, locks out, or exhibits erratic behavior, a technical diagnosis must confirm if you need the PCB (control board) Chaffoteaux Regulation Display Command Niagara Delta 30 FF Ref. 61307041. This control board is responsible for managing the ignition, burner modulation, pump, and safety features of the boiler. The user may notice a fault when the fault code 32 appears, indicating a communication problem with the main board. It is compatible with the models Niagara Delta 24 CF, Niagara Delta 24 FF, Niagara Delta 24 VMC, Niagara Delta 28 CF, Niagara Delta 28 FF, and Niagara Delta 30 FF, among others. A technician must confirm through diagnosis if replacement is necessary when these fault symptoms occur.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 61307041
- Warranty
- 1 year
Chaffoteaux boilers compatible with reference 61307041
PCB with reference 61307041. Six confirmed compatibilities: Niagara Delta 24 CF and Niagara Delta 24 FF.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux Niagara Delta 24 CF | Niagara Delta 24 | Verified |
| Chaffoteaux Niagara Delta 24 FF | Niagara Delta 24 | Verified |
| Chaffoteaux Niagara Delta 24 VMC | Niagara Delta 24 | Verified |
| Chaffoteaux Niagara Delta 28 CF | Niagara Delta 28 | Verified |
| Chaffoteaux Niagara Delta 28 FF | Niagara Delta 28 | Verified |
| Chaffoteaux Niagara Delta 30 FF | Niagara Delta 30 | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the ref. 61307041 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 61307041. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 61307041
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler is unresponsive: the screen is off and no lights are on.
Cause: The PCB is not receiving power because there is a problem with its power supply.
Measure with a multimeter if the mains current reaches the PCB before assuming it is faulty.
- 02
The boiler turns on, tries to operate, and locks out with a different fault each time.
Cause: The relays on the PCB are failing, sending incorrect signals to the control unit, which causes random lockouts.
Note the fault codes in several attempts; if they do not always point to the same sensor, the PCB could be the problem.
- 03
The thermostat does not turn on the boiler, although the programmer works fine.
Cause: The PCB does not send the ignition signal to the power stage, or the thermostat connector is damaged.
Check the wiring of the thermostat to the PCB to ensure there is no oxidation or loose connections before replacing it.
- 04
The boiler fails intermittently: some days it starts up fine and other days it does not respond.
Cause: A faulty weld or a microfracture in the PCB can cause faults that depend on temperature or vibrations.
When the boiler fails, gently tap the control panel; if the fault changes, it could be a faulty solder joint on the PCB.
Chaffoteaux fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| 32 | Communication problem with the main PCB. | The control PCB is not communicating with the display PCB. Check that both PCBs are properly connected and that the cables between them are in good condition. If everything is correct, try replacing the control PCB to see if the problem is resolved. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Chaffoteaux 61307041 PCB.
- Catalogue reference
- 61307041
- Uniclima internal SKU
- PLCDMN30
- Brand
- Chaffoteaux
- Type of part
- PCBs (control boards)
- Units in stock
- 2 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- PCB code
- 060142002580-92D0303800
- Serial number or batch
- 000095600300
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Chaffoteaux Niagara Delta 28 FF Manual (PDF) Document © Chaffoteaux, provided as a technical reference.
Frequently asked questions about the PCB 61307041
Does this Chaffoteaux PCB work for a Niagara Delta 24 FF?
