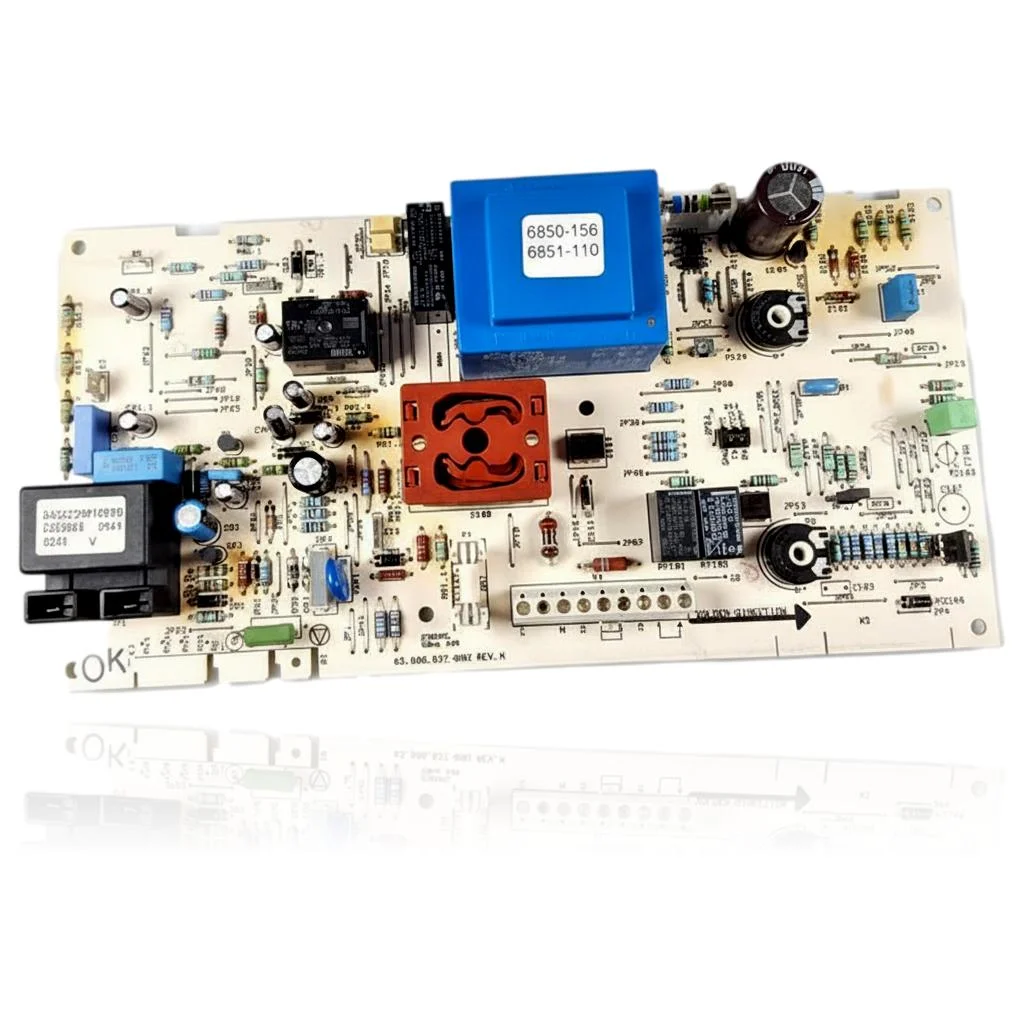

PCB Junkers Euroline ZW23 Ref. 8707207250
When you open the hot water tap, the Junkers Euroline ZW23 PCB (control board) Ref. 8707207250 is responsible for controlling the ignition and modulation of the burner, as well as the pump and safety features of the boiler. If it fails, you will notice that the boiler does not start, locks out, or behaves erratically, in addition to the reset button flashing once every 2 seconds and the 75 °C indicator also flashing, indicating that there is a signal at the ionization electrode but the burner does not ignite. This board is compatible with several models from the Junkers Euroline ZW23 and ZS23 ranges, among others. A technician must confirm through diagnosis whether it needs to be replaced when the mentioned symptoms occur to avoid issues with the supply of hot water.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 8707207250
- Warranty
- 1 year
Junkers boilers compatible with reference 8707207250
PCB with reference 8707207250. 12 verified compatibilities: ZW23-1AE23 and ZW23-1KE23.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Junkers ZW23-1AE23 | Junkers Euroline ZW23 | Contrasted |
| Junkers ZW23-1KE23 | Junkers Euroline ZW23 | Contrasted |
| Junkers ZW23-1AE31 | Junkers Euroline ZW23 | Contrasted |
| Junkers ZW23-1KE31 | Junkers Euroline ZW23 | Contrasted |
| Junkers ZS23-1AE23 | Junkers Euroline ZS23 | Contrasted |
| Junkers ZS23-1KE23 | Junkers Euroline ZS23 | Contrasted |
| Junkers ZS23-1AE31 | Junkers Euroline ZS23 | Contrasted |
| Junkers ZS23-1KE31 | Junkers Euroline ZS23 | Contrasted |
| Junkers ZW24/30-1LH AE23 | Junkers Euroline ZW24/30-1LH | Contrasted |
| Junkers ZW24/30-1LHAE31 | Junkers Euroline ZW24/30-1LH | Contrasted |
| Junkers ZW24-1LHKE23 | Junkers Euroline ZW24/30-1LH | Contrasted |
| Junkers ZW28-1LHKE23 | Junkers Euroline ZW24/30-1LH | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the reference 8707207250 is the part for your boiler.
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 8707207250. If it is not visible, do not identify the part by its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 8707207250
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not start, there is not even a pilot light on.
Cause: The PCB is not powering the system, often because the transformer it has installed has stopped providing output.
Measure the continuity of the transformer 6850-156/6851-110 before declaring the PCB faulty.
- 02
A fault code appears on the display and the boiler locks out immediately.
Cause: The electronics cut off the cycle when detecting an out-of-range reading from any sensor connected to the PCB.
Note the code and check the sensor it points to before replacing the complete PCB.
- 03
The thermostat is calling for heat, but the boiler doesn't respond at all.
Cause: The demand signal does not get processed on the PCB, even though the thermostat is working properly.
Do not force, hit, or bridge the component. Request a technical check according to the equipment manual before deciding on its replacement.
- 04
It works intermittently, sometimes it turns on and other times it doesn't, without a clear reason.
Cause: An internal contact fault in the electronics causes the ignition command not to always be received.
Check the connectors on the PCB, clean them, and secure them properly before requesting the spare part.
Junkers fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| The reset button flashes once every 2 seconds (0.5 Hz), and the 75 °C indicator light also flashes. | There is a signal in the ionisation electrode but the burner does not ignite. | The PCB manages the ignition sequence and flame detection; if it is faulty or damp, it may misinterpret ionisation or fail to correctly command ignition. Check the voltages/outputs of the PCB, connectors, and signs of moisture/corrosion; if they are correct, replace the PCB 8707207250 to rule out a printed circuit fault. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Junkers 8707207250 PCB.
- Catalogue reference
- 8707207250
- Uniclima internal SKU
- RPE E-ZW23
- Brand
- Junkers
- Type of part
- PCBs (control boards)
- Units in stock
- 0 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Part data and available documentation
Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.
- Transformer code
- 6850-156 / 6851-110
- Only the code of the transformer (6850-156 / 6851-110) could be read, not the reference of the PCB itself.
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Junkers ZW23-1KE31 manual (PDF) Document © Junkers, provided as a technical reference.
Frequently asked questions about the PCB 8707207250
Does this PCB fit a Junkers Euroline ZS23 KE?
Is this PCB compatible with the Junkers Euroline OW23 AE?
Spare parts related to Junkers Euroline ZW23
