Chaffoteaux Elexia Comfort 24 CF / FF PCB Ref. 60000571

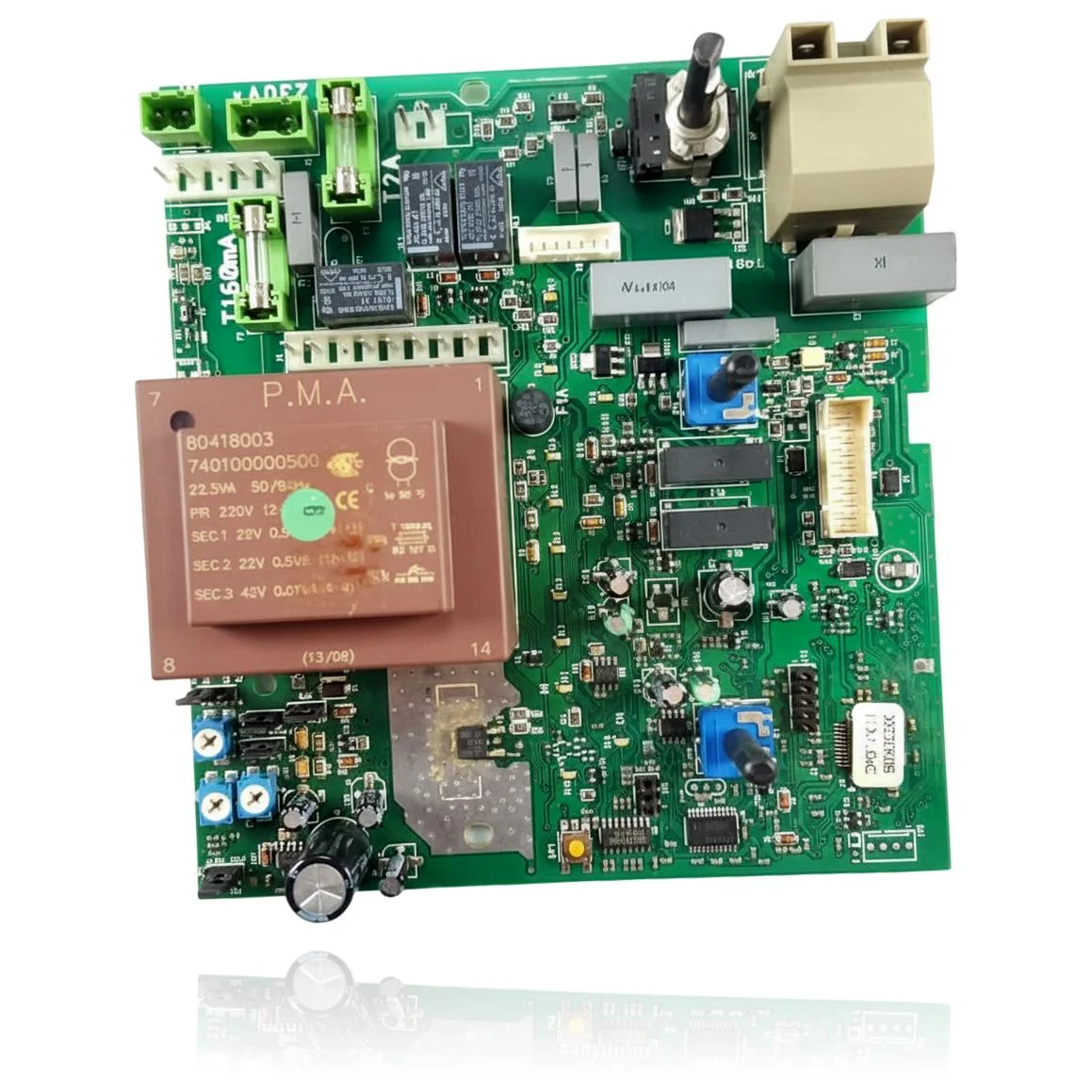

Control PCB for Chaffoteaux Elexia Comfort, Calydra Comfort, and Maya boilers. It manages the boiler's electronics and includes an integrated P.M.A. transformer that powers the control circuits. It is replaced when the boiler does not ignite, the display does not respond, or there are intermittent ignition faults.
VAT included
Consult via WhatsAppChaffoteaux boilers compatible with reference 60000571
PCB with reference 60000571. 11 verified compatibilities: 24 CF and 24 FF.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux 24 CF | ELEXIA COMFORT | Contrasted |
| Chaffoteaux 24 FF | ELEXIA COMFORT | Contrasted |
| Chaffoteaux 24 CF | CALYDRA COMFORT | Contrasted |
| Chaffoteaux 24 FF | CALYDRA COMFORT | Contrasted |
| Chaffoteaux 28 CF | CALYDRA COMFORT | Contrasted |
| Chaffoteaux 28 FF | CALYDRA COMFORT | Contrasted |
| Chaffoteaux 24 CF | MAYA | Contrasted |
| Chaffoteaux 24 FF | MAYA | Contrasted |
| Chaffoteaux 28 FF | MAYA | Contrasted |
| Chaffoteaux 24 CF | MC2 | Contrasted |
| Chaffoteaux 24 FF | MC2 | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 60000571 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 60000571. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the PCB 60000571 resolves.
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler does not turn on, there are no lights or display.
Cause: The transformer on the PCB does not supply power to the control circuits.
Check the mains fuse and verify that 230V is reaching the input of the PCB before considering it faulty.
- 02
The display lights up but does not respond to the buttons.
Cause: The control part of the PCB does not process the commands even though it receives power.
Cut the power for one minute and reconnect it to rule out a temporary blockage before replacing the PCB.
- 03
The boiler tries to start, shuts down after a few seconds, and repeats the cycle.
Cause: The PCB does not maintain the ignition signal and continuously restarts the sequence.
Note whether the cycle repeats in the same way or varies; an irregular pattern suggests that the problem is with the PCB.
- 04
The fuses on the PCB blow immediately after being replaced.
Cause: The short circuit may be in another component (pump, gas valve, fan) that continues to draw current.
Before installing a new fuse, disconnect the pump, gas valve, and fan one by one to see if the fuse holds without them.
Fault codes Chaffoteaux that this part resolves
| Code | Fault | Diagnosis and solution |
|---|---|---|
| 3 03 | Main PCB fault. | Internal fault of the main PCB (microcontroller/power supply/tracks). Check 230/low-voltage on the board, disconnect peripherals to rule out shorts, and if it persists, replace the PCB ref. 60000571. |
| 3 05 | Main PCB fault. | Anomaly detected by the main PCB electronics. Check 5/12 V power supply, connectors, and continuity; if the fault reappears without external loads, the PCB is faulty. |
| 3 06 | Main PCB fault. | PCB fault (e.g., damaged regulation/logical stage). Confirm there are no shorts in sensors/actuators and measure stable voltages on the board; if it persists, replace the 60000571. |
| 3 07 | Main PCB fault. | Recurrent internal fault of the PCB. After checking wiring and peripherals, if the error returns on startup or after reset, the cause is the main board. |
| 3 09 | Gas relay fault (on PCB). | The gas valve relay integrated into the PCB does not switch/close correctly. Check the ignition control and voltage to the valve during demand; if there is no output despite the command, replace the PCB 60000571. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the PCB Chaffoteaux 60000571
- Catalogue reference
- 60000571
- Brand
- Chaffoteaux
- Type of part
- PCBs (control boards)
- Units in stock
- 2 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Transformer code
- 80418003
- Internal reference transformer
- 740100000500
- Transformer power
- 22.5VA
- Frequency
- 50/60Hz
- Primary voltage
- 220V
- Secondary C1
- 22V 0.5A
- Secondary C2
- 22V 0.5VA
- Secondary C3
- 43V
- Fuse F1
- T160mA
- Fuse F2
- T2A
- Supply voltage
- 230V~
- Transformer manufacturer
- M.A.W.P.
