Daikin Comfora TXD25A 1x1 split air conditioning · 2,150 BTUs
1×1 Daikin Comfora with 2.50 kW in cooling (approximately 2,150 BTU/h) and 2.80 kW in heating.
- Pipe
- 1/4″ / 3/8″
- Wi-Fi
- Yes, included.
- BTU/h
- ≈ 2.150
- Refrigerant
- R32
VAT and shipping to mainland Spain included. Installation not included.
VAT includedAvailable in stock
What does Daikin TXD25A include?
Indoor unit, outdoor unit, and control of the indicated set.
| Model | Component | Supply scope |
|---|---|---|
| FTXD25A | Indoor unit | 1 included |
| RXD25A | Outdoor unit | 1 included |
| ARC480A78 | Infrared remote control included | 1 included |

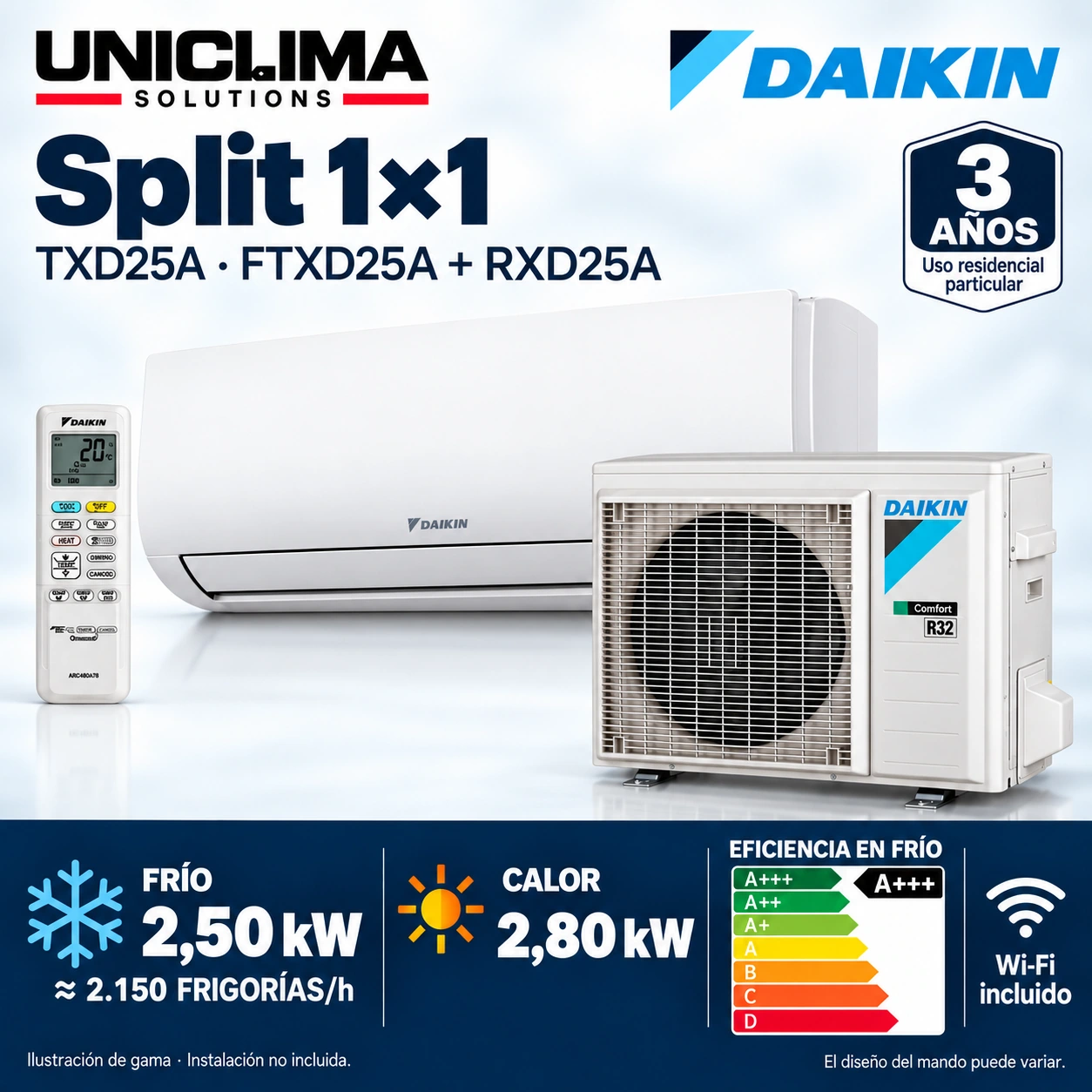

Comfora set with infrared remote control ARC480A78.
Cover: illustration of the range based on catalog photos, without scale. The individual images retain the reference photos. The design of the control may vary due to catalog updates.
What to check before installing Daikin TXD25A
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Check the internal space (770 × 286 × 225 mm) and external space (840 × 552 × 350 mm) plus the clearances from the manual.
- Refrigerant line 1/4″ / 3/8″; run up to 20 m and elevation up to 15 m. Pre-charge for 10 m; check the additional charge in the manual.
- The nominal power guides the selection; the thermal load calculation and installation are carried out separately.
Daikin TXD25A
- Brand
- Daikin
- Model and composition
- Daikin TXD25A
- Supply scope
- FTXD25A + RXD25A + ARC480A78
- Installation
- Not included
- Availability and transport
- In stock. VAT and shipping to mainland Spain included. Installation not included.
Installation at a glance
- Interior
- 770 × 286 × 225 mmwidth × height × depth
- Exterior
- 840 × 552 × 350 mmwidth × height × depth
- Pipe · liquid / gas
- 1/4″ / 3/8″
- Acceptable travel distance
- 1.5 m–20 m
- Maximum slope
- 15 m
- Factory published load
- 0.76 kg
- Length covered by precharge
- 10 m
- Additional load
- 20 g/m above 10 mCheck the manual of the provided revision.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Set
- TXD25A
Identification and control - Indoor unit
- FTXD25A
Identification and control - Outdoor unit
- RXD25A
Identification and control - Type
- 1×1 split wall-mounted unit · cooling and heating
Identification and control - Published supply
- 220 V · single-phase
Identification and control - Control board
- ARC480A78 · infrared included
Identification and control · Documented reference in the Daikin Split catalog. The design may vary due to catalog updates. - Connectivity
- Wi-Fi control with the Onecta app included.
Identification and control · Daikin Spain · tariff update 2025 · PDF page 13. - Nominal power in cold conditions
- 2.50 kW
Power and efficiency - approximate nominal cooling capacity
- 2,150 BTU/h
Power and efficiency · Indicative conversion: kW × 860. - Nominal heat output
- 2.80 kW
Power and efficiency - Energy class in cold
- A+++
Power and efficiency - Energy class in heating
- A+++ · average climate
Power and efficiency - SEER
- 8,50
Power and efficiency - SCOP · average climate
- 5,10
Power and efficiency - Interior · width × height × depth
- 770 × 286 × 225 mm
Dimensions and sound - Exterior · width × height × depth
- 840 × 552 × 350 mm
Dimensions and sound - Internal weight
- 9.0 kg
Dimensions and sound - External weight
- 32 kg
Dimensions and sound - Interior sound pressure in silent mode
- 19 dB(A)
Dimensions and sound · Sound pressure level, not sound power. - Pipe · liquid / gas
- 1/4″ / 3/8″
Pipe and refrigerant - Acceptable travel distance
- 1.5 m–20 m
Pipe and refrigerant - Maximum slope
- 15 m
Pipe and refrigerant - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 0.76 kg
Pipe and refrigerant - Length covered by precharge
- 10 m
Pipe and refrigerant - Additional load
- 20 g/m above 10 m
Piping and refrigerant · Check the manual provided for the review. - Cooling
- 560 W
Nominal electrical consumption · Nominal electrical power, not thermal capacity. - Heating
- 610 W
Nominal electrical consumption · Nominal electrical power, not thermal capacity. - Cooling
- 103 kWh/year
Annual reference consumption - Heating · average climate
- 659 kWh/year
Annual reference consumption - Residential use
- 3 years
Daikin warranty · According to the manufacturer's conditions. - Other uses
- 2 years of material replacement
Daikin warranty · Check the scope and exclusions in the Daikin terms and conditions.
Before purchasing
- Daikin Spain, tariff update 2025, PDF page 13. Nominal testing capacities; dimensions in width × height × depth.
Documentation
Questions about Daikin TXD25A
How many FRIGORÍAS does the Daikin TXD25A have?
Approximately 2,150 refrigeration units/h, calculated from the 2.50 kW nominal cooling capacity. This is not its electrical consumption.
What units are included?
It is the 1×1 set with interior FTXD25A and exterior RXD25A. The inspection of the outdoor unit is confirmed upon delivery.
What pipe do you need?
Liquid and gas: 1/4″ / 3/8″. The maximum published distance is 20 m; the installation requires checking the exact manual.
Is the installation included?
No. Piping, supports, installation, and commissioning are valued separately.
