Panasonic KIT-100PU3Z8 cassette air conditioning 1×1 — 8,600 BTU/h
Panasonic KIT-100PU3Z8 set: 10.00 kW in cooling, 10.00 kW in heating, and ≈ 8,600 BTU/h. R32. Wired remote control CZ-RTC5B included. Three-phase.
- Pipe
- 3/8″ / 5/8″
- Wi-Fi
- Optional
- BTU/h
- ≈ 8.600
- Refrigerant
- R32
VAT included. Installation not included.
VAT includedAvailable in stock
What does Panasonic KIT-100PU3Z8 include?

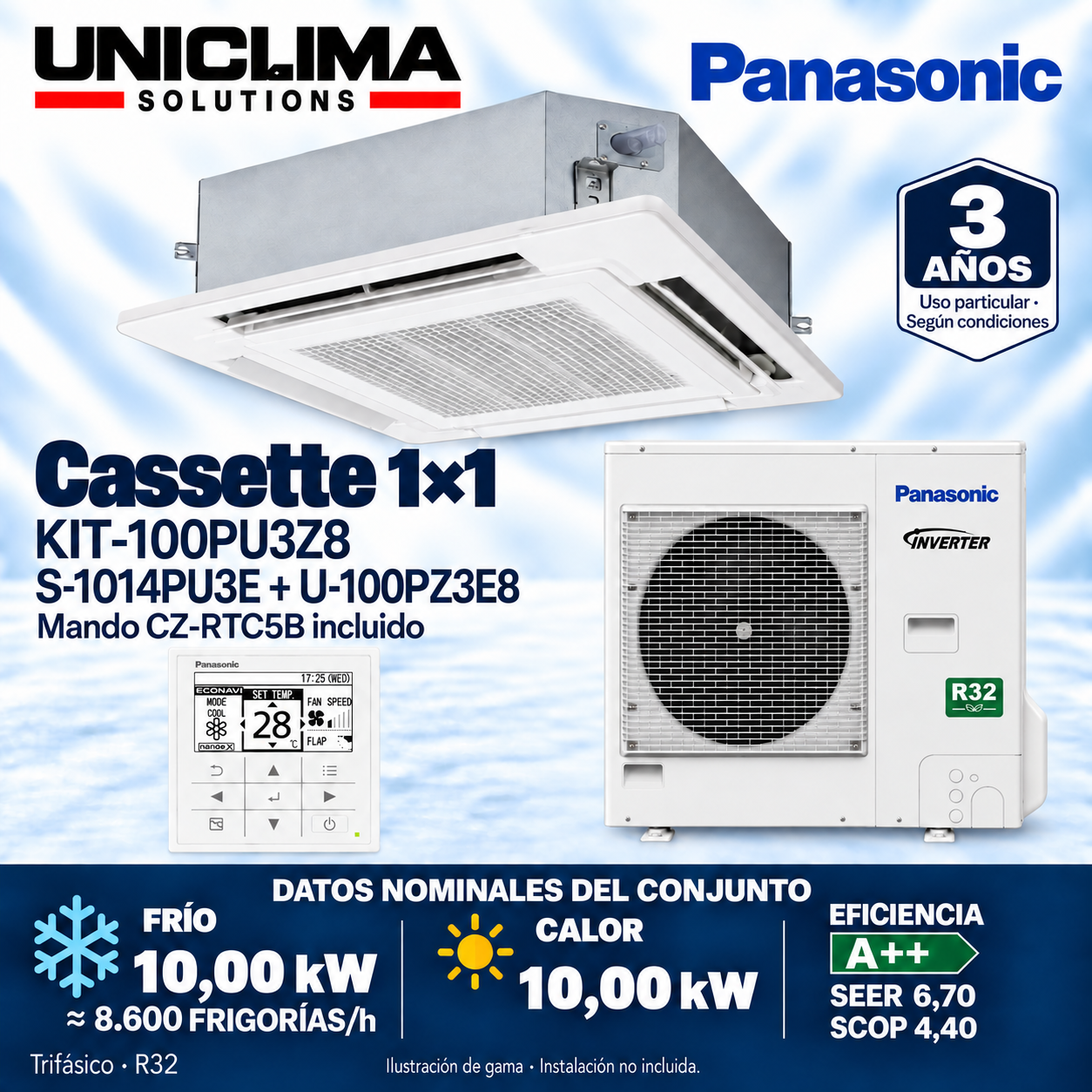

Composition of the set: S-1014PU3E + U-100PZ3E8.
| Model | Component | Supply scope |
|---|---|---|

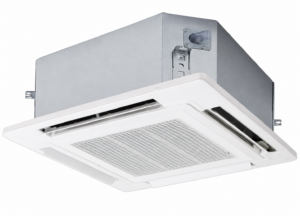

| S-1014PU3E | Cassette indoor unit 840 × 319 × 840 mm | 1 included |

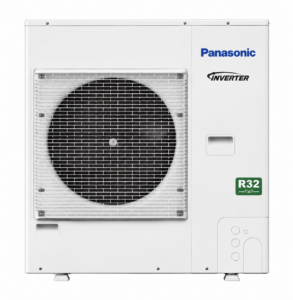

| U-100PZ3E8 | Outdoor unit 980 × 996 × 370 mm | 1 included |
| CZ-RTC5B | Wired remote control The design may vary due to catalog updates. | 1 included |
| CZ-KPU3 | Decorative panel 950 × 33.5 × 950 mm | 1 included |
Installation, pipes, supports, and construction materials not included.
Illustration of the range based on images from the manufacturer; not to scale. The design of the control may vary due to catalog updates.
What to check before installing Panasonic KIT-100PU3Z8
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Size the power according to the thermal load of each space.
- Respect the manufacturer's maintenance, ventilation, and drainage spaces.
- Check the three-phase power supply, the 3/8″ / 5/8″ pipes, and the allowable lengths.
- Check separately the dimensions of the body and the panel and the space of the false ceiling.
Technical sheet: Panasonic KIT-100PU3Z8
- Brand
- Panasonic
- Model and composition
- Panasonic KIT-100PU3Z8
- Supply scope
- 1 × U-100PZ3E8; S-1014PU3E; 1 wired remote control CZ-RTC5B. CZ-KPU3 panel included.
- Installation
- Not included
- Availability and transport
- Price including VAT. Installation not included. Request the availability notice if it is out of stock.
Installation at a glance
- Pipe · liquid / gas
- 3/8″ / 5/8″Continue adapting the manual when appropriate.
- Length covered by precharge
- 30.0 m
- Additional load
- 45.0 g/mAccording to length and manual
- Maximum slope
- 15 / 30 (8) mBetween interior and exterior; the separated values depend on the relative position of the units.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this set. The testing conditions and climate are part of each value.
- Nominal cooling of the unit
- 10.00 kW
Power and efficiency of the system - Nominal heat of the assembly
- 10.00 kW
Power and efficiency of the system - BTU/h
- ≈ 8.600
Power and efficiency of the set · Nominal cooling of the set × 860 - Nominal power in cooling / heating
- 2.62 / 2.03 kW
Power and efficiency of the system - SEER / SCOP
- 6,70 / 4,40
Power and efficiency of the system · SCOP in moderate climate - Energy class in cold
- A++
Power and efficiency of the system - S-1014PU3E · width × height × depth
- 840 × 319 × 840 mm
Dimensions and sound · 1 unit(s); body without panel - Exterior U-100PZ3E8
- 980 × 996 × 370 mm
Dimensions and sound · Width × height × depth - CZ-KPU3
- 950 × 33.5 × 950 mm
Dimensions and sound · Width × height × depth - Interior acoustic pressure (Med) (4)
- 38 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Interior acoustic pressure (Pa) (4)
- 32 dB(A)
Dimensions and sound · Conditions according to the manufacturer's document - Refrigerant
- R32
Installation and refrigerant - Factory load
- 2.40 kg
Installation and refrigerant - Pipe · liquid / gas
- 3/8″ / 5/8″
Installation and refrigerant · Follow adaptations from the manual when applicable - Length covered by precharge
- 30.0 m
Installation and refrigerant - Additional load
- 45.0 g/m
Installation and refrigerant · According to length and manual - Maximum total length
- 50 m
Installation and refrigerant - Maximum slope
- 15 / 30 (8) m
Installation and refrigerant · Between interior and exterior; the separated values depend on the relative position of the units. - External power supply
- Three-phase · 380–400–415 V · 50 Hz
Installation and refrigerant - Wi-Fi
- Optional · adapter not included
Installation and refrigerant · CZ-CAPWFC1 not included - Control board
- CZ-RTC5B
Installation and refrigerant · 1 included - Panasonic Spain warranty
- 3 years
Installation and refrigerant · According to the manufacturer's warranty conditions, linked in Documentation - Condensate pump
- Included
Installation and refrigerant
Before purchasing
- The testing conditions and installation instructions are detailed in the Panasonic documentation.
Documentation
Questions about Panasonic KIT-100PU3Z8
What does the set include?
1 × U-100PZ3E8; S-1014PU3E; 1 wired remote control CZ-RTC5B. CZ-KPU3 panel included.
How many frigorías does it have?
≈ 8,600 BTU/h, calculated from 10.00 kW nominal cooling of the unit.
Does it have Wi-Fi?
Optional · adapter not included · CZ-CAPWFC1 not included
Does it include installation?
No. The installation, pipes, supports, and materials are budgeted separately.
Can you make a reservation when there is no stock?
Yes. When it shows out of stock, click Reserve to request a notification of availability. No charge will be made.
