TCL ducted air conditioning M48D3W2 · 14.07 kW
2.410,59 €VAT included
12,100 frigorías/h for ducted air conditioning. Interior height of 245 mm and three-phase power supply.
3/8″ / 5/8″ · Trifásica · body 245 mm de alto · precarga 5 m What to consider
VAT and shipping included. Installation not included. Availability and delivery time to be confirmed.
Availability to be confirmed
What does TCL M48D3W2 include?
Duct set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| MN48D3W2 | Ducted indoor unit 1200 × 245 × 700 mm · 37.0 kg | 1 included |
| MT4831 | Outdoor unit 1010 × 858 × 436 mm · 77 kg | 1 included |
Wired remote control included as per catalog; does not include wireless remote control. Control reference to be confirmed when requesting the supply. Installation, pipes, supports, wiring, ducts, and grilles, as well as commissioning, are quoted separately.

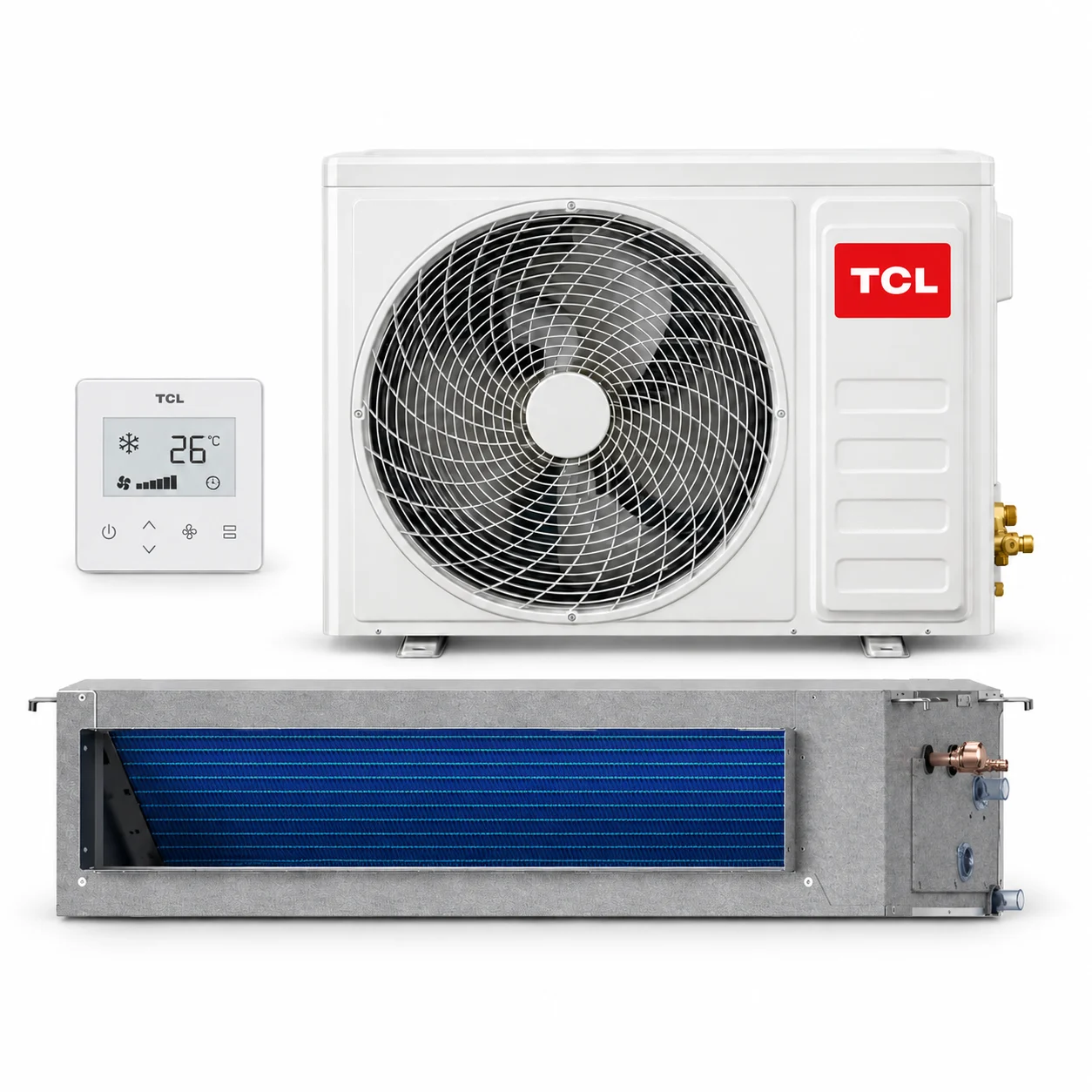

Cover: illustrative composition of the range, not to scale. The official photographs of the indoor unit are shared among capacities. Check the references and dimensions of this set.
What to check before installing TCL M48D3W2
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Reserve space for the interior of 245 mm in height, its connections, the drain, and the maintenance access points. The duct network and the grilles are sized separately.
- Tubería 3/8″ / 5/8″. Precarga para 5 m; longitud máxima equivalente 75 m y desnivel 30 m. Por encima de 5 m: 25 g/m adicionales. El instalador debe contrastar placa y revisión antes de intervenir.
- The outdoor unit requires three-phase power supply; the catalog distinguishes between indoor power supply of 220 V and outdoor of 380 V. The installer will check the network, protections, and PCB.
- Wired remote control included as per catalog; wireless remote control not included. Control reference to be confirmed when requesting the supply.
TCL M48D3W2
- Brand
- TCL
- Model and composition
- TCL M48D3W2
- Supply scope
- MN48D3W2 + MT4831
- Installation
- Not included
- Availability and transport
- VAT and shipping included. Installation not included. Confirm availability and delivery time.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this pair. The testing conditions and climate are part of each value.
- Set
- M48D3W2
Set and power supply - Indoor unit
- MN48D3W2
Set and power supply - Outdoor unit
- MT4831
Set and power supply - Type
- Ducts 1×1 · cooling and heating
Set and power supply - Power supply
- Exterior 380 V · three-phase / interior 220 V
Set and power supply - Nominal power in cold conditions
- 14.07 kW
Power and efficiency - Approximate nominal cooling capacity
- 12,100 refrigeration units/h
Power and efficiency · Conversion: kW × 860. - Nominal heat output
- 16.12 kW
Power and efficiency - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Interior · width × height × depth
- 1200 × 245 × 700 mm
Measures to prepare the installation - Exterior · width × height × depth
- 1010 × 858 × 436 mm
Measures to prepare the installation - Net internal weight
- 37.0 kg
Measures to prepare the installation - Net external weight
- 77 kg
Measures to prepare the installation - Pipe · liquid / gas
- 3/8″ / 5/8″
Pipe and refrigerant - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 1.90 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - SEER
- 6,1
Eficiencia, consumo y circulación de aire - SCOP · average climate
- 4
Eficiencia, consumo y circulación de aire - Consumo nominal en frío
- 4900 W
Eficiencia, consumo y circulación de aire · Potencia eléctrica nominal, no capacidad térmica. - Consumo nominal en calor
- 4855 W
Eficiencia, consumo y circulación de aire · Potencia eléctrica nominal, no capacidad térmica. - External sound power
- 70 dB(A)
Eficiencia, consumo y circulación de aire · Potencia sonora, no presión sonora. - Potencia sonora interior · S/H/M/L/silencio
- 58/57/54/52/50 dB(A)
Eficiencia, consumo y circulación de aire · Potencia sonora, no presión sonora. - Caudal de aire interior
- 2100 m³/h
Eficiencia, consumo y circulación de aire - Presión estática externa nominal
- 50 Pa
Eficiencia, consumo y circulación de aire - Presión estática externa regulable
- 0-200 Pa
Eficiencia, consumo y circulación de aire - Tubería cubierta por la precarga
- 5 m
Límites para preparar la instalación · Catálogo TCL 2026 Portugal, página PDF 11; no es el recorrido máximo. - Longitud máxima equivalente
- 75 m
Límites para preparar la instalación · Catálogo oficial TCL Italia 2026, página PDF 64. Longitud equivalente, no solo tubo recto. - Maximum slope
- 30 m
Límites para preparar la instalación · Entre las unidades interior y exterior. - Longitud mínima recomendada
- 3 m
Límites para preparar la instalación · Catálogo oficial TCL Italia 2026. - Carga adicional por encima de 5 m
- 25 g/m
Límites para preparar la instalación · Dentro de los límites permitidos. Confirmar placa y revisión; intervención de profesional habilitado.
Before purchasing
- Datos de la documentación enlazada para la referencia indicada. Verifica la placa y el manual de instalación de la revisión suministrada antes de dimensionar huecos, conexiones o carga de refrigerante. Las imágenes no son planos de montaje. Algunas cotas, pesos o cargas difieren entre el catálogo 2025–2026 y la ficha TCL actual. Confirma la revisión y su plano antes de preparar la instalación.
Documentation
Questions about TCL M48D3W2
How many frigorías does the TCL M48D3W2 have?
Approximately 12,100 frigorías/h, starting from 14.07 kW nominal in cooling. This is thermal capacity, not electrical consumption.
What does the set include?
Indoor duct unit MN48D3W2, outdoor unit MT4831. Wired remote control included as per catalog; does not include wireless remote control. Control reference to be confirmed when requesting supply.
What pipe do you need?
Tubería 3/8″ / 5/8″. Precarga para 5 m; longitud máxima equivalente 75 m y desnivel 30 m. Por encima de 5 m: 25 g/m adicionales. El instalador debe contrastar placa y revisión antes de intervenir.
How much false ceiling do you need?
The body is 245 mm high. The mounting, drainage, connections, and service space must be added; that figure should not be taken as the minimum false ceiling.
Is it single-phase or three-phase?
The exterior is three-phase (380 V published); the table indicates 220 V for the interior. The schematic and the label of the supplied equipment must be checked.
Can I buy it with installation?
The price includes VAT and shipping costs. Installation is quoted separately based on location, route, and necessary work. Check availability and lead time before placing the order.
