TCL BreezeIN S24P4S2 air conditioning · 7.02 kW
717,65 €VAT included
Cold and heat for a room: 6037 frigorías/h and Wi-Fi control with TCL Home.
1/4″ / 1/2″ · Monofásica · precarga 5 m What to consider
VAT and shipping included. Installation not included. Availability and delivery time to be confirmed.
Availability to be confirmed
What does TCL S24P4S2 include?
Wall-mounted split set 1×1: components grouped according to the TCL table.
| Model | Component | Supply scope |
|---|---|---|
| SN24P4S0 | Wall-mounted indoor unit 1100 × 333 × 222 mm · 14.0 kg | 1 included |
| ST24P2 | Outdoor unit 920 × 699 × 380 mm · 39 kg | 1 included |
The reference and supply of the control unit are confirmed in the quote. Installation, piping, supports, wiring, and commissioning are budgeted separately.

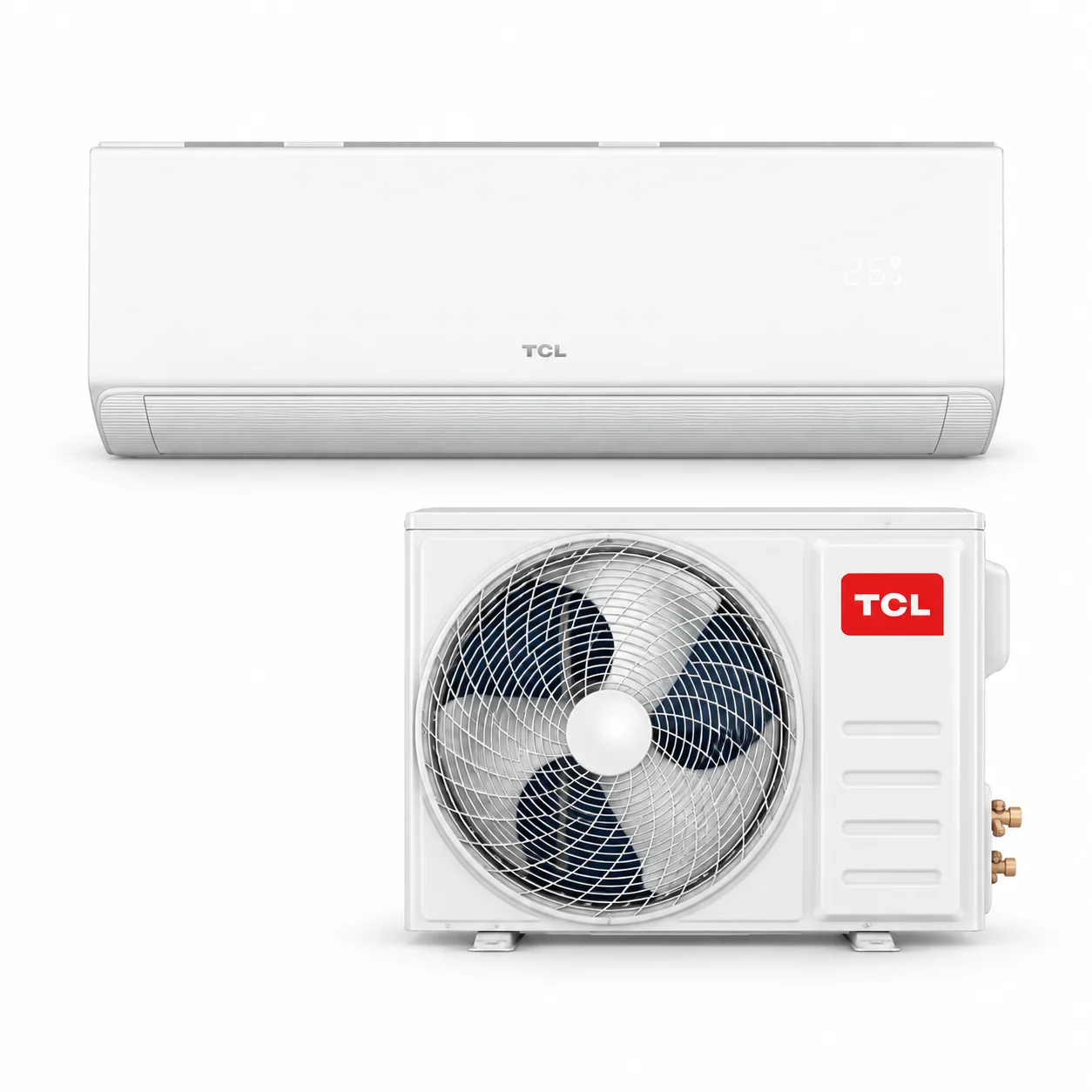

Cover: illustrative composition of the range, not to scale. The official photographs of the indoor unit are shared among capacities. Check the references and dimensions of this set.
What to check before installing TCL S24P4S2?
The choice of equipment does not replace the inspection of the installation by a qualified professional.
- Calculate the thermal load of the room based on orientation, insulation, glazing, and occupancy; a fixed equivalence between kW and m² is not sufficient.
- Refrigeration connections 1/4″ / 1/2″. The maximum length, the height difference, and the additional load of R32 are calculated using the installation manual of the supplied revision.
- The set is single-phase. The installer will check the voltage of the PCB, the protections, the wiring, and the ventilation distances.
- The reference and the supply of the control are confirmed in the budget.
TCL S24P4S2
- Brand
- TCL
- Model and composition
- TCL S24P4S2
- Supply scope
- SN24P4S0 + ST24P2
- Installation
- Not included
- Availability and transport
- VAT and shipping included. Installation not included. Confirm availability and delivery time.
Specifications and dimensions of the model
Capabilities, consumption, efficiency, noise, and dimensions of this pair. The testing conditions and climate are part of each value.
- Set
- S24P4S2
Set and power supply - Indoor unit
- SN24P4S0
Set and power supply - Outdoor unit
- ST24P2
Set and power supply - Type
- 1×1 split wall-mounted unit · cooling and heating
Set and power supply - Power supply
- 220 V · single-phase
Set and power supply - Connectivity
- Wi-Fi · TCL Home
Set and power supply - Nominal power in cold conditions
- 7.02 kW
Power and efficiency - Approximate nominal cooling capacity
- 6037 frigorías/h
Power and efficiency · Conversion: kW × 860. - Nominal heat output
- 7.10 kW
Power and efficiency - Energy class in cold
- A++
Power and efficiency - Energy class in heating
- A+
Power and efficiency - Interior · width × height × depth
- 1100 × 333 × 222 mm
Measures to prepare the installation - Exterior · width × height × depth
- 920 × 699 × 380 mm
Measures to prepare the installation - Net internal weight
- 14.0 kg
Measures to prepare the installation - Net external weight
- 39 kg
Measures to prepare the installation - Pipe · liquid / gas
- 1/4″ / 1/2″
Pipe and refrigerant - Refrigerant
- R32
Pipe and refrigerant - Factory published load
- 1.07 kg
Pipe and refrigerant · Catalog data; check the revision plate provided. - Standard published length
- 5 m
Pipe and refrigerant · Does not correspond to the maximum allowable length. - Tubería cubierta por la precarga
- 5 m
Límites para preparar la instalación · Catálogo TCL 2026 Portugal, página PDF 6; no es el recorrido máximo.
Before purchasing
- Data from the linked documentation for the indicated reference. Check the PCB and the installation manual of the supplied revision before sizing gaps, connections, or refrigerant charge. The images are not assembly diagrams.
Documentation
Questions about TCL S24P4S2
How many frigorías does the TCL S24P4S2 have?
Approximately 6037 frigorías/h, based on 7.02 kW nominal in cooling. This is thermal capacity, not electrical consumption.
What does the set include?
Wall-mounted indoor unit SN24P4S0, outdoor unit ST24P2. The reference and supply of the remote control are confirmed in the budget.
What pipe do you need?
Liquid 1/4″ and gas 1/2″. The additional load and travel limits must be checked in the exact manual; they are not calculated solely by the diameter.
How many square meters does it serve?
It depends on insulation, orientation, height, glazing, and occupancy. The power must be chosen based on a thermal load calculation, without promising a fixed area.
Is it single-phase or three-phase?
It is single-phase. Check the voltage of the PCB and protections with the installer.
Can I buy it with installation?
The price includes VAT and shipping costs. Installation is quoted separately based on location, route, and necessary work. Check availability and lead time before placing the order.
