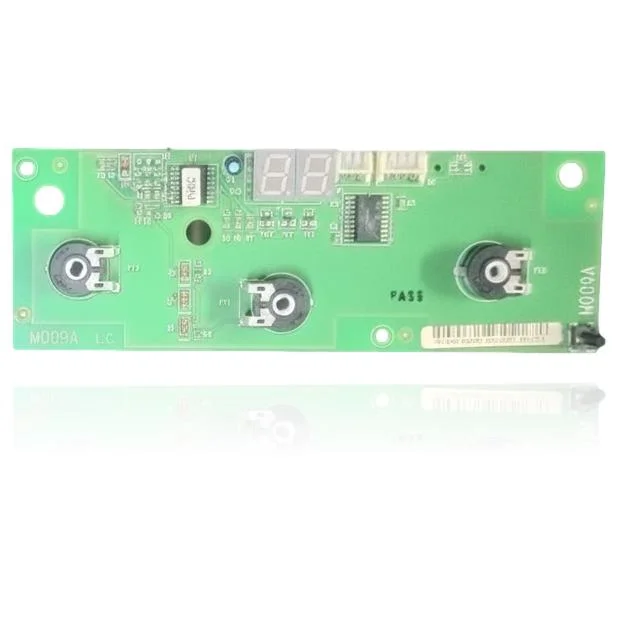

Beretta Super Exclusive MIX 26 CSI EV Control Board Display Ref. R10024558

Beretta boilers compatible with reference R10024558

PCB with reference R10024558. 22 verified compatibilities: Super Exclusive MIX 24 CSI and Super Exclusive MIX 26 CSI.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. R10024558 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference R10024558. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis on the PCB R10024558

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The screen does not turn on or does not display digits.

  Cause: The control module loses power or one of its 7-segment displays malfunctions, even though the boiler continues to receive current.

  Check that the boiler ignites the burner and heats water even if nothing is visible on the screen: if it works blindly, the fault is in this module.

• 02

  It does not respond to the controls or potentiometers.

  Cause: Temperature potentiometers lose accuracy with use and stop sending a reliable signal to the boiler's control board.

  Move each control slowly from one end to the other and check if the displayed temperature changes continuously or remains fixed.

• 03

  Communication errors with the boiler are appearing.

  Cause: The cable or connector that connects the control module to the main PCB is faulty or has a poor connection, and the boiler interprets that it has lost the link.

  Check that the connector and the flat cable between the module and the main PCB are properly seated and without bent pins before replacing the part.

Beretta fault codes that require diagnosis

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Beretta PCB R10024558

Catalogue reference

R10024558

Uniclima internal SKU

MDEBSEMIX26

Brand

Beretta

Type of part

PCBs (control boards)

Units in stock

1 unit

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Code printed on PCB

10024558

Label code

SC01N1 10024558 IN2806 004119

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Beretta Super Exclusive Mix 26 CSI Manual (PDF) Document © Beretta, provided as a technical reference.
