Vaillant PCB Control VMW 24 282 5 Turbotec Turbomax Ref. 0020034604

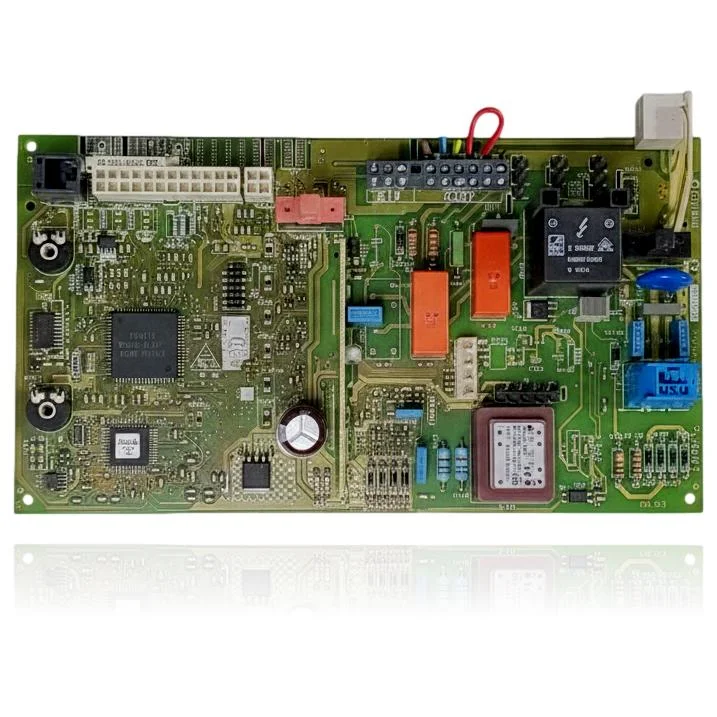

The control PCB governs the ignition, burner modulation, pump, and safety features of the boiler. If it fails, the boiler may not start, lock out, or behave erratically, displaying faults such as F.33 or F.36. This component is compatible with several Vaillant models, including the VMW 240/2-3, VMW 242-5, and VM 282/2-5, among others. A technician must confirm through diagnosis whether it needs to be replaced upon detecting issues in the boiler's operation.
Vaillant boilers compatible with reference 0020034604
PCB with reference 0020034604. 14 verified compatibilities: VMW 240/2-3 and VMW 240/2-3 R1.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Vaillant VMW 240/2-3 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VMW 240/2-3 R1 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VMW 242/2-3 R1 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VMW 242/2-3 R2 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VMW 242-5 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VMW 280/2-5 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VMW 282/2-5 | VMW (mixed turboTEC/turboMAX, wall-hung mixed) | Contrasted |
| Vaillant VM 240/2-5 | VM (heating only) | Contrasted |
| Vaillant VM 242/2-5 | VM (heating only) | Contrasted |
| Vaillant VM 280/2-5 | VM (heating only) | Contrasted |
| Vaillant VM 282/2-5 | VM (heating only) | Contrasted |
| Vaillant VM 202/2-5 | VM (heating only) | Contrasted |
| Vaillant VMI 280-7 | VMI (compact interior) | Contrasted |
| Vaillant VMI 282-7 | VMI (compact interior) | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 0020034604 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 0020034604. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 0020034604
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler is completely off, with no lights or sounds, as if it is not receiving power.
Cause: A fault in the power supply to the PCB leaves the entire control electronics without power.
Check the main fuse of the house and, if possible, the fuse of the PCB before considering it faulty.
- 02
It turns on, makes an attempt noise, and shuts off before igniting.
Cause: The PCB controls the ignition sequence; if any step fails, it systematically aborts the attempt.
Check if the fault occurs at the same moment during the ignition attempt: a repetitive pattern points more towards the PCB than to a specific fault.
- 03
There is no way for the boiler to respond to the remote control or the wall thermostat.
Cause: The input circuit of the PCB processes those external signals; if it fails, the demand is never executed.
Do not bridge contacts or power components directly to test them. Request a technician to check the cause according to the model manual and its revision, without bypassing the protections. The symptom or fault code does not confirm on its own that this part is faulty.
- 04
The circulation pump never starts, although it sounds fine when you test it manually.
Cause: The relay on the PCB that supplies power to the pump can remain open and not activate the component even if it is functioning properly.
Measure with a multimeter if the pump connector is receiving voltage when the boiler should be demanding circulation.
Vaillant fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| F.33 | Gas evacuation fault | This code indicates a problem in the gas evacuation path. If the PCB is damaged, it may not be properly controlling the fan or the gas pressure. Check the board for possible faults. |
| F.36 | Gas evacuation fault | This error indicates a fault in the gas flue path. If the PCB is not functioning properly, it may not be managing the fan or the flue correctly. Check the PCB to ensure there are no faults. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Vaillant 0020034604 PCB.
- Catalogue reference
- 0020034604
- Uniclima internal SKU
- PLC-VLL26XX
- Brand
- Vaillant
- Type of part
- PCBs (control boards)
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
