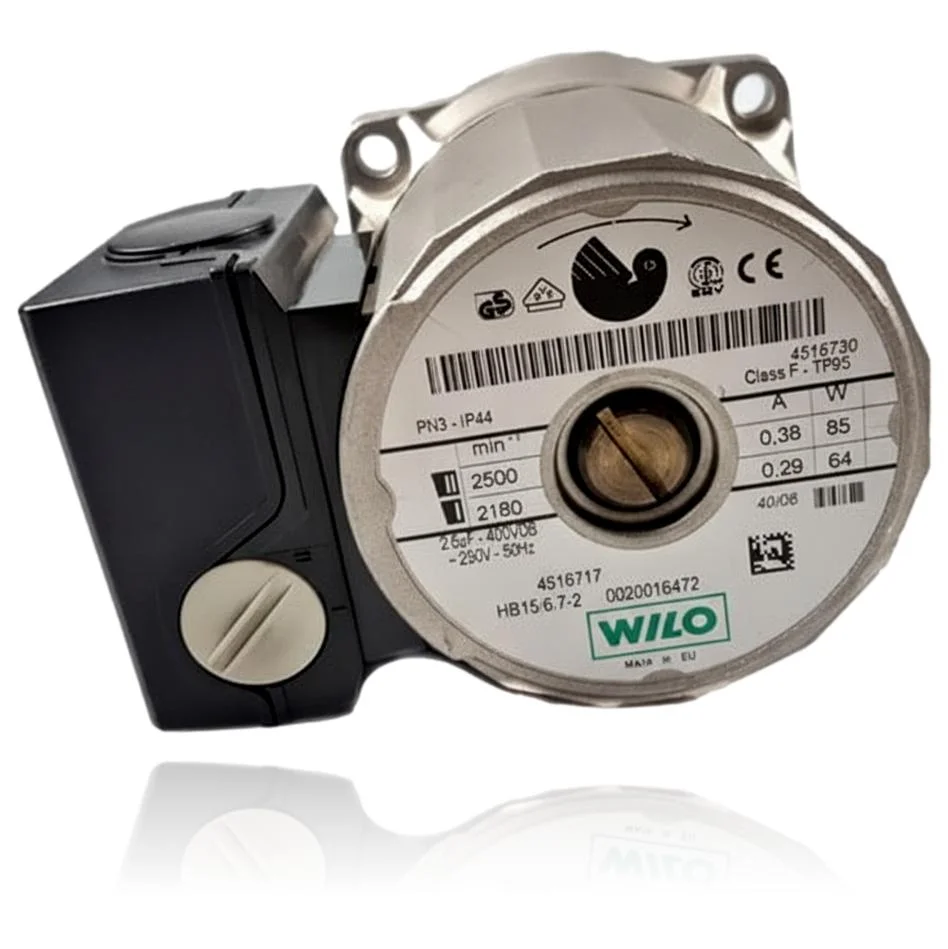

Saunier Duval Themafast F 25 E H Circulator Pump Motor Ref. S1061800
RefurbishedSaunier DuvalPumpsWilo

Saunier Duval Themafast F 25 E H Circulator Pump Motor Ref. S1061800

Stock · 6 units

The Saunier Duval Themafast F 25 E H MOD Circulating Pump Motor Ref. S1061800, manufactured by Wilo, is responsible for moving water through the heating circuit. When this pump fails, you may notice cold radiators, strange noises, overheating, or blockages due to lack of circulation. It is compatible with models such as Themafast F 25 E H-MOD, Themafast F25E, and Themafast F 30 E H-MOD, among others. It is recommended to replace the pump when these symptoms are present or when detecting fault codes F.23 or F.24.

VAT included

Compatibility

Saunier Duval boilers compatible with reference S1061800

Circulating pump with reference S1061800. Four confirmed compatibilities: Themafast F 25 E H-MOD and Themafast F25E.

Proven compatibility

Boiler modelFamilyVerification
Saunier Duval Themafast F 25 E H-MODThemafastContrasted
Saunier Duval Themafast F25EThemafastContrasted
Saunier Duval Themafast F 30 E H-MODThemafastContrasted
Saunier Duval Themafast F30EThemafastContrasted

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if ref. S1061800 is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference S1061800. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms and faults that the circulator pump S1061800 resolves.

The circulation pump circulates the water in the heating circuit. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler takes a long time to heat the radiators or they do not heat at all.

    Cause: The pump does not move enough water through the heating circuit.

    Increase the pump to the high speed, of the two available, and check if it improves before replacing it.

  • 02

    Noise or vibration in the pump while the boiler is operating

    Cause: Trapped air in the circuit or worn bearing

    Bleed the heating circuit and the pump before replacing it.

  • 03

    The pump does not start or does not rotate, especially after a long stop.

    Cause: The shaft has seized due to sediment buildup during inactivity.

    Unlock the shaft manually with a screwdriver in the front slot of the motor.

  • 04

    There is no noticeable difference between the two speeds of the pump.

    Cause: One of the windings of the motor has stopped working.

    Test both speed settings with the boiler running and compare noise and flow rate.

Fault codes from Saunier Duval that this spare part resolves.

CodeFaultDiagnosis and solution
F.23Safety shutdown due to excessive temperature difference (very reduced circulation).If the circulating pump (S1061800) is blocked or not rotating, the flow rate drops: the supply heats up quickly and the return remains cold, triggering F.23. Check the voltage to the pump, consumption/start-up, and actual flow rate (bleeding or test program if applicable).
F.24Safety shutdown due to excessively rapid temperature increase (lack of circulation).A faulty heating pump or one without flow causes a large rise gradient in the supply and triggers F.24. Check that the pump receives 230 V, starts, and that the system is correctly bled.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Saunier Duval S1061800 circulation pump.

Catalogue reference
S1061800
Brand
Saunier Duval
Type of part
Pumps
Units in stock
6 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Data read on the part and in the manufacturer's documentation

What we have not been able to verify does not appear here.

Model
HB15/6.7-2
Protection
IP44
Nominal pressure
PN3
Speeds
2500 / 2180 rpm
Current
0.38A / 0.29A
Power
85W / 64W
Insulation class
F - TF95
Manufacturing date
week 40/2008
Printed codes
4516730 / 4516717 (or 4S16717) / 0020016472
Frequently Asked Questions

Frequently asked questions about the S1061800 circulation pump

What model is printed on the pump motor of the Themafast F 25 E H MOD?
HB15/6.7-2.
What is the date of this pump from the Saunier Duval Themafast F 25 E H MOD?
The label indicates manufacturing in week 40 of 2008.
How many speeds does the motor HB15/6.7-2 of the Themafast F 25 E H MOD have?
Two speeds, of 64 W and 85 W.
How do I check if this motor is the one for my Themafast F 25 E H MOD?
For the codes 4516730, 4516717 (or 4S16717) and 0020016472 printed on the casing.
What other Saunier Duval boilers is this motor compatible with besides the Themafast F 25 E H MOD?
With Themafast C 25 E, C 30 E and F 30 E H-MOD, Themaplus C 25 E, C 30 E and F 30 E H-MOD, and Thema Condens F AS 24 E.
