Vaillant Ignition Transformer VCW E 18 10 Ref. 287450
Refurbished Vaillant Transformers

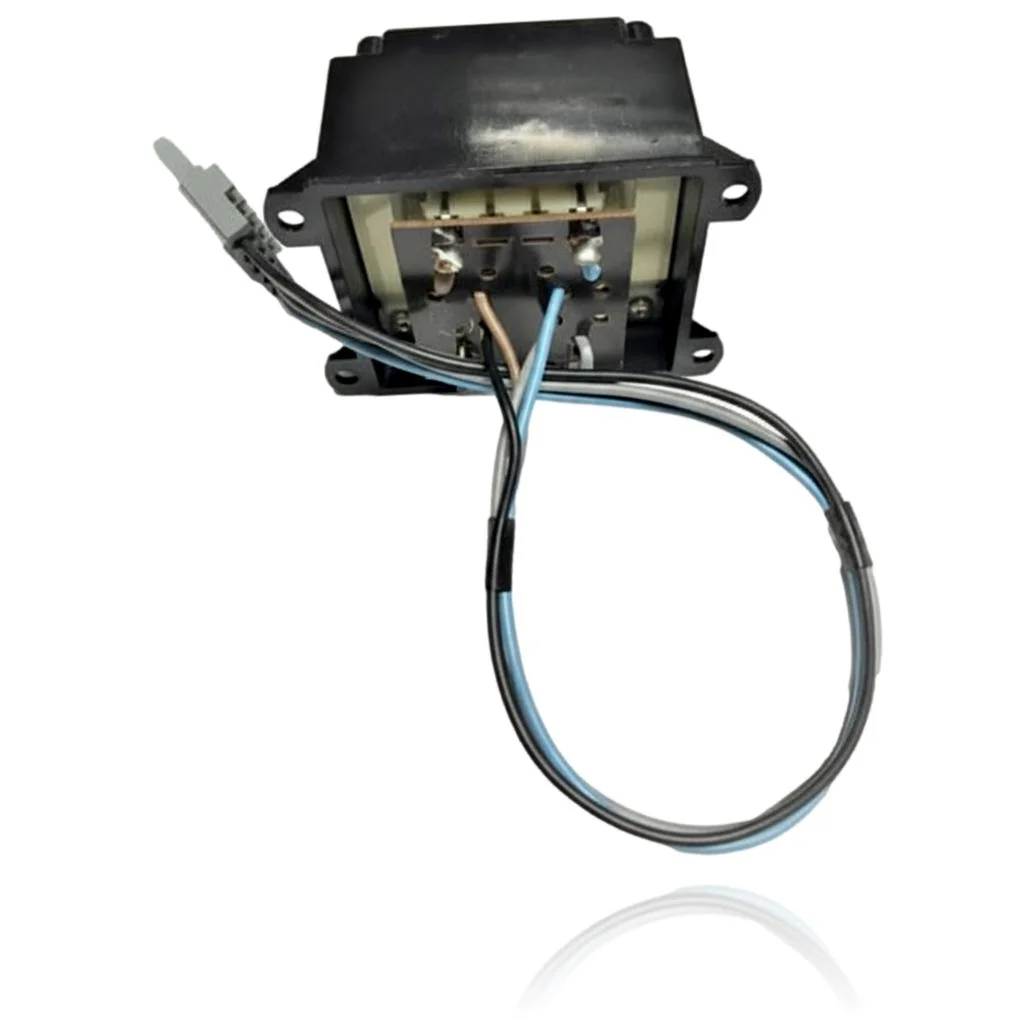

Vaillant Ignition Transformer VCW E 18 10 Ref. 287450

When you open the hot water tap, the Vaillant VCW E 18 10 Ignition Transformer Ref. 287450 activates to generate the spark that ignites the burner. If this part fails, you will notice that the boiler tries to start without being able to ignite the flame, which can lead to fault codes F.28 or F.29. This transformer is compatible with several models from the Vaillant Turbo Tec, Atmo Tec, VC, and VMI ranges, among others. A technician should confirm through diagnosis whether it needs to be replaced if you experience ignition problems or if the boiler locks during startup.

Type of part
Transformers
Status
Refurbished
Catalogue reference
287450
Warranty
1 year
VAT included Stock · 7 units
Compatibility

Vaillant boilers compatible with reference 287450

Ignition transformer with reference 287450. 12 verified compatibilities: VMW ES 242/3 and VMW 242-3.

Verified compatibility

Boiler modelFamilyVerification
Vaillant VMW ES 242/3Vaillant Turbo Tec / Turbo Pro (VMW)Verified
Vaillant VMW 242-3Vaillant Turbo Tec / Turbo Pro (VMW)Verified
Vaillant VMW 242-5Vaillant Turbo Tec / Turbo Pro (VMW)Verified
Vaillant VMW 240-5Vaillant Turbo Tec / Turbo Pro (VMW)Verified
Vaillant VMW 282-5Vaillant Turbo Tec / Turbo Pro (VMW)Verified
Vaillant VM 242-5Vaillant Atmo Tec / VM (heating only)Verified
Vaillant VM 282-5Vaillant Atmo Tec / VM (heating only)Verified
Vaillant VC 242 EVaillant VC / VCM (combi-compact)Verified
Vaillant VCM 242 EVaillant VC / VCM (combi-compact)Verified
Vaillant VCM 282 EVaillant VC / VCM (combi-compact)Verified
Vaillant VMI 280-7Vaillant VMIVerified
Vaillant VMI 282-7Vaillant VMIVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if ref. 287450 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference 287450. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis in the ignition transformer 287450

The ignition transformer generates the high voltage for the spark of the electrodes. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler does not ignite the burner even though the ignition attempt can be heard.

    Cause: The transformer does not provide the necessary current for the electrode to generate the spark that ignites the mixture.

    Check that the gas is arriving with normal pressure and that the gas valve is open, to rule out that the problem is with the fuel.

  • 02

    The ignition sometimes fails and other times it doesn't, without a clear pattern.

    Cause: A transformer that starts to fail provides irregular current, sometimes sufficient and other times not.

    Note whether the fault occurs during cold starts or with the boiler hot; this will help you distinguish a worn transformer from a problem with the electrode.

  • 03

    There is a crackling sound from the ignition, but the flame does not ignite.

    Cause: There is output current, but the arc does not jump correctly at the electrode or it is lost due to a ground leak.

    Check the condition of the electrode, the ignition cable, and make sure there is no moisture or dirt in the area before replacing the transformer.

  • 04

    The boiler repeatedly locks out on startup and needs to be reset several times a day.

    Cause: Each attempt without a spark consumes the retries allowed by the control board until it locks the boiler for safety.

    Check the fault code on the display; if it indicates a flame failure and not a pressure switch or sensor issue, the problem lies in the ignition system.

Vaillant fault codes that require diagnosis

CodeFaultTechnical checks
F.28Fault during start-up: the boiler fails to ignite the burner in the start-up phase.The ignition transformer is part of the ignition system (transformer + cable + electrode); if the transformer fails, it does not generate the high voltage for the spark, and the boiler aborts the start-up without detecting a flame. Verify: measure the transformer's output voltage to the electrode and check for a spark at each start-up; if there is no spark and the wiring/electrode are fine, the transformer is the cause.
F.29The flame goes out during operation and re-ignition attempts fail.The Vaillant service documentation explicitly lists "the ignition transformer has a spark fault" as the cause of F.29: if the transformer does not reignite after a flame failure, the lockout is triggered. Verify: check the spark generation of the transformer during ignition retries and rule out poor grounding, gas pressure, and condensate pipe before.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Vaillant 287450 ignition transformer datasheet

Catalogue reference
287450
Uniclima internal SKU
TVVCWE1810
Brand
Vaillant
Type of part
Transformers
Units in stock
7 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days
Documentation

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

Frequently asked questions

Frequently asked questions about the ignition transformer 287450

Is this ignition transformer compatible with the Vaillant Turbo Tec VMW 242-5?
Yes, the ignition transformer Vaillant VCW E 18 10 Ref. 287450 is compatible with the Vaillant Turbo Tec range, including the model VMW 242-5.
What problems can the ignition transformer in a Vaillant boiler solve?
This transformer should be checked when the boiler does not ignite or the ignition is intermittent, as it generates the spark needed to ignite the burner. Replacement requires a technical diagnosis.
How many models are compatible with the ignition transformer Vaillant VCW E 18 10 Ref. 287450?
The transformer is compatible with a total of 12 models of Vaillant boilers.
What fault codes are related to this ignition transformer?
The documented fault codes for this product are F.28 and F.29.
Does this ignition transformer work for the Vaillant VMI 280-7?
Yes, the ignition transformer Vaillant VCW E 18 10 Ref. 287450 is compatible with the Vaillant VMI range, including the model VMI 280-7.
Where can I find the reference for the ignition transformer?
TVVCWE1810 is Uniclima’s internal SKU for locating this listing. To confirm compatibility, check the manufacturer’s reference and the exact appliance model.
