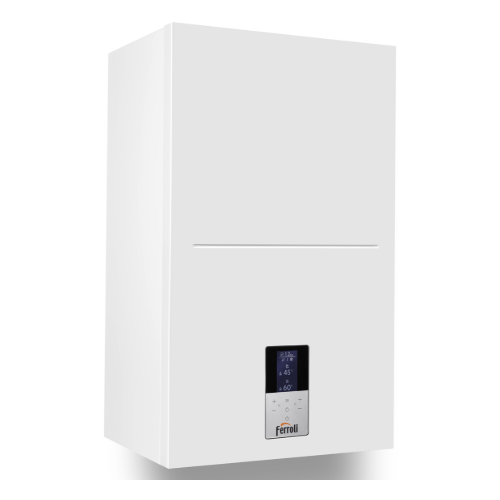

Ferroli Bluehelix Hitech RRT 45 H boiler

Condensing boiler · New equipmentFerroli Bluehelix Hitech RRT 45 H

Ferroli Bluehelix Hitech RRT 45 H boiler

VAT includedIn stock

The Ferroli Bluehelix Hitech RRT 45 H is a heating-only boiler. It offers from 6.3 to 42.9 kW output at 80/60 °C and from 6.9 to 46.5 kW at 50/30 °C. Domestic hot water is prepared through an external accumulator with a sensor and three-way valve; it is not a mixed boiler for instantaneous production nor does it include a sanitary tank. The body measures 700 × 420 × 320 mm, weighs 35 kg, and does not include an expansion vessel. Heating only. Domestic hot water via external accumulator; expansion vessel not included. VAT and mainland shipping included.

Heating power (80/60 °C): 6.3–42.9 kW
Hot water: External accumulator
Dimensions: 700 × 420 × 320 mm

Condensing boiler

The model, at a glance

Bluehelix Hitech RRT 45 H heating-only boiler with domestic hot water via external accumulator.

Heating power (80/60 °C): 6.3–42.9 kW
Hot water: External accumulator
Dimensions: 700 × 420 × 320 mm

Read the full description and what it includes.

The Ferroli Bluehelix Hitech RRT 45 H is a heating-only boiler. It provides from 6.3 to 42.9 kW output at 80/60 °C and from 6.9 to 46.5 kW at 50/30 °C.

The domestic hot water is prepared using an external accumulator with a sensor and a three-way valve; it is not a mixed boiler for instantaneous production nor does it include a sanitary tank. The body measures 700 × 420 × 320 mm, weighs 35 kg, and does not include an expansion vessel.

What is included in the purchase?

Only heating. Domestic hot water through external accumulator; expansion vessel not included.

Price including VAT and shipping to mainland Spain. Installation, adaptations, and commissioning are valued separately.

Consult the manufacturer's PDFs ↓

Guide

What to check before installing this boiler

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Confirm the model and commercial reference, the type of gas, and the supply configuration in the manufacturer's documentation.
Ask a qualified installer to assess the heating and domestic hot water demand; compare measured flow rates at the same temperature difference.
Check dimensions, connections, flue gas evacuation, condensate drainage, and controls compatible with the existing installation.
Confirm the included accessories and the delivery time before scheduling the installation. The online purchase of the equipment does not include installation or commissioning.

Technical data

Datos técnicos de Caldera Ferroli Bluehelix Hitech RRT 45 H

Brand: Ferroli
Model: Ferroli Bluehelix Hitech RRT 45 H boiler
Status: New
Supply scope: Only heating. Domestic hot water through external accumulator; expansion vessel not included.
Shipping: Included in mainland Spain. Please confirm the deadline.
Commercial reference: 0T4D9AWA

Specifications and dimensions of the model

Compare each magnitude under its testing conditions: heating, domestic hot water, efficiency, and dimensions.

Gas: G20 natural gas; G30-G31 liquid gas; H2 80/20
Dimensions and connections
Dimensions (height × width × depth): 700 × 420 × 320 mm
Dimensions and connections
Expansion vessel: Not included
Dimensions and connections
Useful heating thermal power 80/60 °C: 6.3–42.9 kW
Heating
Useful heating thermal power 50/30 °C: 6.9–46.5 kW
Heating
Type of domestic hot water: Through a sensor and external accumulator; no instantaneous production.
Hot water
Documented accumulator: ECOUNIT 200 and 300 l
Hot water
Domestic hot water production with ECOUNIT 200 or 300 l: 350 l/10 min (set with external accumulator, not continuous flow)
Hot water
Potencia eléctrica máxima absorbida: 132 W
PDF del fabricante, página 2
Gasto calorífico máximo / mínimo: 43,8 / 6,4 kW
PDF del fabricante, página 2

Manufacturer's sources

PDF and documentation of the model

Original documents, unmodified. Refer to the installation plan and the conditions of each data point before selecting the equipment.

Bluehelix Hitech RRT 45 HPDF · 7 páginas · Ferroli View original on the manufacturer's website ↗

The gallery sheets are summaries of Uniclima based on these documents. The external volume diagram does not represent connections, accessories, or service distances.

Frequently Asked Questions

Frequently asked questions: calderas de condensación 0T4D9AWA

Is it suitable for a large house of 300 m²?

Only if the loads and the system of the house justify its power. For example, 300 m² at 80 W/m² require 24 kW, which is below its maximum of 42.9 kW at 80/60 °C; therefore, the square meters alone are not enough to choose the 45 H over a smaller one. Its minimum of 6.3 kW at that regime also matters when few zones are operating. The example does not replace the calculation of the installation.

How is domestic hot water prepared?

The domestic hot water is prepared with an external accumulator connected via the sensor and the three-way valve provided for the system. The accumulator and its accessories are not deducted from the nominal power of the boiler.

Can it supply two showers at 8 l/min?

The boiler does not produce instantaneous domestic hot water. The result depends on the external accumulator, its volume, recovery, regulation, inlet temperature, and simultaneous use; the technical sheet of the boiler alone does not guarantee two showers.

Does it include a tank and what do the 350 liters in 10 minutes mean?

It does not include a sanitary tank. The 350 l/10 min stated in the table corresponds to the set with an external accumulator ECOUNIT of 200 or 300 l, not to the boiler alone or to a continuous flow of 35 l/min. The table does not specify temperatures for that data; it does not allow for guaranteeing a number of showers on its own.

What are the dimensions and weight?

The body measures 700 × 420 × 320 mm (height × width × depth) and weighs 35 kg. The final gap must include connections, drainage, service clearances, and the space for the accumulator.

What gases and controls does it include?

The technical sheet identifies G20, G30-G31, and a mixture of natural gas and hydrogen 80/20, as well as manufacturer control options. The configuration and commissioning must be defined by professionals; a specific control is not included.

Does the price include installation and shipping?

Includes VAT and shipping to mainland Spain. Installation and adaptations are valued separately. Heating only. Domestic hot water through external accumulator; expansion vessel not included.
