Condensing boiler · New equipmentSaunier Duval Semia Condens 30-A

New boilerSaunier Duval Condensing boilers

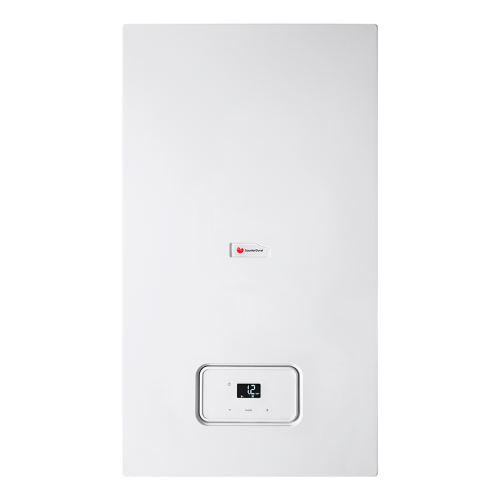

Saunier Duval Semia Condens 30-A boiler

VAT includedIn stock

The Semia Condens 30-A offers 6.0-25.0 kW of heating at 80/60 °C and up to 30.0 kW of domestic hot water with natural gas. Warm Start prepares the hot water; the specific flow rate D30 is 14.5 l/min and the sanitary limiter is 10 l/min. The reference 12016088 is without control, with a body depth of 300 mm. H-ES variant without control. Installation not included. VAT and mainland shipping included.

Heating power (80/60 °C, G20): 6.0-25.0 kW
Specific flow rate for domestic hot water (ΔT 30 K): 14.5 l/min
Dimensions (height x width x depth): 740 x 418 x 300 mm

Condensing boiler

The model, at a glance

Saunier Duval Semia Condens 30-A: 6,0-25,0 kW en calefacción, ACS D30 de 14,5 l/min, Warm Start y 300 mm de fondo. Gas natural, sin control.

Heating power (80/60 °C, G20): 6.0-25.0 kW
Specific flow rate for domestic hot water (ΔT 30 K): 14.5 l/min
Dimensions (height x width x depth): 740 x 418 x 300 mm

Read the full description and what it includes.

The Saunier Duval Semia Condens 30-A combines 6.0-25.0 kW of heating at 80/60 °C with 6.0-30.0 kW for domestic hot water, using natural gas. At 50/30 °C, the useful heating range is from 6.3 to 26.5 kW. Its higher capacity compared to Thelia 25 allows for a comparison of the household demand without confusing heating power with sanitary power. The maximum factory setting for heating is 18 kW, and its adjustment is intended for professionals.

Warm Start prepares the domestic hot water production to reduce waiting time. The capacity should be read with its conditions: 17.4 l/min at ΔT 25 K, 14.5 l/min of specific flow at ΔT 30 K, and 12.4 l/min at ΔT 35 K. The domestic hot water limiter is 10 l/min, different from those tests. The pressure, the mixture, and the inlet temperature determine the outcome at the taps; no water reserve is provided to cover any simultaneous consumption.

The primary heat exchanger is made of aluminum, with a declared modulation of 1:5 and a seasonal efficiency of 94%. This H-ES variant only accepts natural gas and does not have a conversion to propane. The reference 12016088 is without control: the regulation packs have different codes. MiGo Link is optional, and the A+ system class requires the indicated control combination, without automatically attributing it to the offered unit.

The body measuring 740 x 418 x 300 mm weighs 32.3 kg net and 36.8 kg with water. The bottom of 30 cm must be checked along with the access spaces: 300 mm above and below and 600 mm in front for operation; a cabinet door requires the separation indicated in the plan. The 8-liter tank is for heating. In terms of electricity, the maximum consumption is 110 W, powered at 230 V and with IPX4D protection.

What is included in the purchase?

H-ES variant without control. Installation not included.

Price including VAT and shipping to mainland Spain. Installation, adaptations, and commissioning are valued separately.

Consult the manufacturer's PDFs ↓

Guide

What to check before installing this boiler

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Confirm the model and commercial reference, the type of gas, and the supply configuration in the manufacturer's documentation.
Ask a qualified installer to assess the heating and domestic hot water demand; compare measured flow rates at the same temperature difference.
Check dimensions, connections, flue gas evacuation, condensate drainage, and controls compatible with the existing installation.
Confirm the included accessories and the delivery time before scheduling the installation. The online purchase of the equipment does not include installation or commissioning.

Technical data

Technical data of Saunier Duval Semia Condens 30-A boiler

Brand: Saunier Duval
Model: Saunier Duval Semia Condens 30-A boiler
Status: New
Supply scope: H-ES variant without control. Installation not included.
Shipping: Included in mainland Spain. Please confirm the deadline.
Commercial reference: 12016088

Specifications and dimensions of the model

Compare each magnitude under its testing conditions: heating, domestic hot water, efficiency, and dimensions.

Useful heating output (80/60 °C, G20): 6.0-25.0 kW
Heating
Useful heating output (50/30 °C, G20): 6.3-26.5 kW
Heating
Maximum heating power factory set (d.00): 18 kW
Heating
Supply temperature regulation: 10-80 °C
Heating
Maximum heating pressure: 3 bar
Heating
Nominal heating flow rate (ΔT 20 K): 1.077 l/h
Heating
Nominal heating flow rate (ΔT 30 K): 718 l/h
Heating
Heating expansion vessel: 8 l; it is not a domestic hot water storage.
Heating
Useful power of DHW (G20): 6.0-30.0 kW
Hot water
Specific flow rate DHW D (ΔT 30 K, EN 13203): 14.5 l/min
Hot water
Domestic hot water flow rate (ΔT 25 K, inlet 10 °C): 17.4 l/min
Hot water
Specific flow rate for domestic hot water (ΔT 35 K): 12.4 l/min
Hot water
Continuous flow domestic hot water (ΔT 35 K): 746 l/h
Hot water
Domestic hot water flow limiter: 10 l/min
Hot water
Permissible pressure of domestic hot water: 0.3-10 bar
Hot water
Adjustment of domestic hot water temperature: 35-60 °C
Hot water
Preparation of hot water: Warm Start
Hot water
Operating gas: Natural gas G20, 20 mbar; category I2H
Gas and construction
Propane conversion: Not available for this variant H-ES.
Gas and construction
Primary heat exchanger: Aluminum
Gas and construction
Control of the offered reference: Without control; MiSet and SRT50/2 packs with different references.
Regulation
Control via application: MiGo Link optional solution
Regulation
Dimensions (height x width x depth): 740 x 418 x 300 mm
Dimensions and installation
Net weight: 32.3 kg
Dimensions and installation
Weight with water: 36.8 kg
Dimensions and installation
Minimum superior distance: 300 mm
Dimensions and installation
Minimum lower distance: 300 mm
Dimensions and installation
Lateral clearance and disassembly: 0 mm mounting; 50 mm for disassembling the side
Dimensions and installation
Front access and cabinet door: 600 mm access; 5 mm in front of the door according to the plan
Dimensions and installation
Seasonal ErP efficiency: 94 %
Efficiency and sound
Heating class with regulation: A with MiSet; A+ with MiPro Sense or external sensor and MiSet
Efficiency and sound
Domestic hot water efficiency and sanitary profile: A / XL
Efficiency and sound
Declared sound level: 49 dB(A)
Efficiency and sound
Electrical supply: 230 V, 50 Hz
Electricity
Maximum electrical consumption: 110 W
Electricity
CE number (PIN): 0063CP3646
Gas and construction
Degree of protection: IPX4D
Electricity
Declared modulation ratio: 1:5
Gas and construction

Manufacturer's sources

PDF and documentation of the model

Original documents, unmodified. Refer to the installation plan and the conditions of each data point before selecting the equipment.

The gallery sheets are summaries of Uniclima based on these documents. The external volume diagram does not represent connections, accessories, or service distances.

Frequently Asked Questions

Frequently asked questions: condensing boilers 12016088

Does the Semia Condens 30-A work for a house of 160 m²?

If a loss of 80 W/m² is assumed, 160 m² require 12.8 kW. This hypothetical load is within your 6.0-25.0 kW output at 80/60 °C with natural gas. It is not a certified surface: the actual loss must be calculated, emitters checked, and the installation adjusted. In an area that only requires 4 kW, the demand falls below the minimum and can cause starts and stops. The 30 in the name refers to the maximum capacity of domestic hot water, not to 30 kW of heating under those conditions.

Can it maintain two showers of 8 l/min at the same time?

Two showers of 8 l/min add up to 16 l/min. With cold water at 10 °C and service at 40 °C, the temperature difference is 30 K: the declared specific flow rate is 14.5 l/min, which is lower than that demand. Additionally, the manual specifies a domestic hot water limiter of 10 l/min. The 17.4 l/min in the technical sheet corresponds to a temperature difference of 25 K and is not a guarantee for two hot showers. Pressure, mixing, and inlet temperature must be checked; for sustained simultaneous consumption, it is advisable to consider a solution with greater capacity or storage.

Is Warm Start a storage tank that holds water for showers?

Warm Start prepares the production of hot water and reduces the waiting time when requesting domestic hot water. It should not be confused with a reserve sanitary accumulator: the diagram of this mixed boiler shows a plate heat exchanger, and the 8-liter tank belongs to heating. Those 8 liters do not supply the taps. Warm Start also does not increase the continuous flow nor does it prevent the wait caused by a long pipe; therefore, it is not suitable for promising two simultaneous showers.

Does the Semia 30 fit in a kitchen cabinet with a depth of 30 cm?

The body measures 740 x 418 x 300 mm, but a cabinet of exactly 300 mm leaves no margin for the door. The plan specifies 5 mm in front of a cabinet door and 600 mm of frontal access for working, as well as 300 mm above and below. Laterally, it allows for 0 mm of mounting, although disassembling one side requires 50 mm. Connections and drainage must remain accessible. The net weight is 32.3 kg and with water 36.8 kg; the support must be verified for the load in service.

Can the Semia Condens 30-A be used with propane?

Not for this reference H-ES: it is exclusively intended for natural gas G20 and the technical sheet indicates that conversion to propane is not available. It should not be purchased assuming that a generic adjustment or kit will convert it. If the home uses LPG, a variant expressly authorized for that fuel must be chosen and verified with a qualified installer. The external similarity to another boiler does not demonstrate the same certification.

Does reference 12016088 include MiSet or mobile control?

The reference 12016088 identifies the boiler without control. The sets with wired MiSet, MiSet Radio, or SRT50/2 have different codes; they are not considered included for sharing the name Semia. MiGo Link is an optional solution for connection via application, with the corresponding compatible regulation. The A+ system class depends on the indicated combination, not on this reference alone. The offer also does not include installation or other accessories not detailed in the supply.

Does the price include installation and shipping?

Includes VAT and shipping to mainland Spain. Installation and adaptations are valued separately. H-ES variant without control. Installation not included.
