Condensing boiler · New equipmentSaunier Duval Thema Condens 25-A

New boilerSaunier Duval Condensing boilers

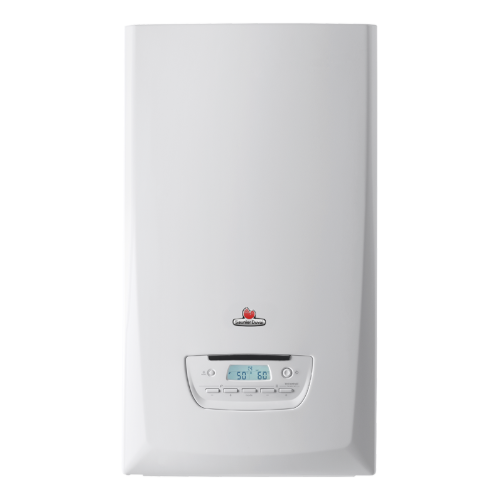

Saunier Duval Thema Condens 25-A boiler

VAT includedIn stock

The Thema Condens 25-A combines heating of 4.9-24.2 kW at 80/60 °C with domestic hot water of up to 25.5 kW. It features Warm Start and a primary heat exchanger made of stainless steel; its specific flow rate is 12.2 l/min at ΔT 30 K. The reference 12021496 is H-ES without control, with a depth of 344 mm. Reference 12021496, version H-ES without additional control. Without installation. VAT and mainland shipping included.

Heating power (80/60 °C): 4.9-24.2 kW
Specific flow rate for domestic hot water (ΔT 30 K): 12.2 l/min
Dimensions (height x width x depth): 740 x 418 x 344 mm

Condensing boiler

The model, at a glance

Saunier Duval Thema Condens 25-A: heating from 4.9 to 24.2 kW, domestic hot water D30 of 12.2 l/min, Warm Start and stainless steel. Reference H-ES without control.

Heating power (80/60 °C): 4.9-24.2 kW
Specific flow rate for domestic hot water (ΔT 30 K): 12.2 l/min
Dimensions (height x width x depth): 740 x 418 x 344 mm

Read the full description and what it includes.

The Saunier Duval Thema Condens 25-A combines heating and domestic hot water in a wall-mounted mixed boiler with a primary stainless steel heat exchanger. It offers 4.9-24.2 kW output at 80/60 °C and 5.4-26.1 kW at 50/30 °C. Its declared modulation of 1:5 allows for adjusting the heat output within that range. The maximum factory setting for heating is 15 kW, an adjustment that the professional must adapt to the calculated needs of the home.

In domestic hot water, it operates between 5.1 and 25.5 kW. Warm Start prepares the service to reduce waiting time, and the plate heat exchanger meets the demand of the taps. The capacity is compared under equivalent conditions: 12.2 l/min of specific flow rate at ΔT 30 K, versus 14.6 l/min at ΔT 25 K. The 8-liter vessel belongs to the heating circuit and is not a sanitary reserve to increase simultaneity.

The reference 12021496 identifies the H-ES version without additional control; the sets with MiSet have different codes. The MiGo Link solution is optional. Its seasonal efficiency is 94%, and the upgrade to A+ class system depends on the specified regulation combination. The adaptation from natural gas to propane is intended for professional intervention, not as a change to be made by the user.

The dimensions of 740 x 418 x 344 mm allow for comparison with other wall-mounted boilers, respecting the installation and access clearances. It weighs 37.1 kg net and 41.6 kg with water. The maximum electrical consumption is 107 W and the standby consumption is 2.7 W. The declared noise level is 50 dB(A); it should not be confused with the minimum power noise figures announced for the family.

What is included in the purchase?

Reference 12021496, version H-ES without additional control. Without installation.

Price including VAT and shipping to mainland Spain. Installation, adaptations, and commissioning are valued separately.

Consult the manufacturer's PDFs ↓

Guide

What to check before installing this boiler

The choice of equipment does not replace the inspection of the installation by a qualified professional.

Confirm the model and commercial reference, the type of gas, and the supply configuration in the manufacturer's documentation.
Ask a qualified installer to assess the heating and domestic hot water demand; compare measured flow rates at the same temperature difference.
Check dimensions, connections, flue gas evacuation, condensate drainage, and controls compatible with the existing installation.
Confirm the included accessories and the delivery time before scheduling the installation. The online purchase of the equipment does not include installation or commissioning.

Technical data

Datos técnicos de Caldera Saunier Duval Thema Condens 25-A

Brand: Saunier Duval
Model: Saunier Duval Thema Condens 25-A boiler
Status: New
Supply scope: Reference 12021496, version H-ES without additional control. Without installation.
Shipping: Included in mainland Spain. Please confirm the deadline.
Commercial reference: 12021496

Specifications and dimensions of the model

Compare each magnitude under its testing conditions: heating, domestic hot water, efficiency, and dimensions.

Useful heating power (80/60 °C): 4.9-24.2 kW
Heating
Useful heating power (50/30 °C): 5.4-26.1 kW
Heating
Maximum heating power factory set: 15 kW
Heating
Supply temperature range: 10-80 °C
Heating
Maximum heating pressure: 3 bar
Heating
Flow rate at maximum factory power (ΔT 20 K): 646 l/h
Heating
Available pressure at factory power (ΔT 20 K): 44.2 kPa
Heating
Heating expansion vessel: 8 l; it is not a sanitary tank.
Heating
Useful power of domestic hot water: 5.1-25.5 kW
Hot water
Specific flow rate DHW D (ΔT 30 K, EN 13203): 12.2 l/min
Hot water
Domestic hot water flow rate (ΔT 25 K, inlet 10 °C): 14.6 l/min
Hot water
Minimum water flow: 1.5 l/min
Hot water
Maximum domestic hot water pressure: 10 bar
Hot water
Preparation of hot water: Warm Start
Hot water
Gas for reference H-ES: Natural gas G20, 20 mbar
Gas and construction
Gas category: II2H3P
Gas and construction
Adaptation to propane: G31, 37 mbar; conversion by a qualified professional
Gas and construction
Primary heat exchanger: Stainless steel
Gas and construction
Declared modulation ratio: 1:5
Gas and construction
Control of reference 12021496: Without control; regulation packs with other codes
Regulation
Connection via application: Optional MiGo Link with compatible configuration
Regulation
Dimensions (height x width x depth): 740 x 418 x 344 mm
Dimensions and installation
Net weight: 37.1 kg
Dimensions and installation
Weight with water: 41.6 kg
Dimensions and installation
Minimum superior distance: 300 mm
Dimensions and installation
Minimum lower distance: 300 mm
Dimensions and installation
Minimum distance on each side: 10 mm
Dimensions and installation
Minimum front distance: 600 mm
Dimensions and installation
Seasonal ErP efficiency: 94 %
Efficiency and sound
Heating class with regulation: A with MiSet; A+ with MiPro Sense or external sensor and MiSet
Efficiency and sound
Domestic hot water efficiency and sanitary profile: A / XL
Efficiency and sound
Declared sound level: 50 dB(A)
Efficiency and sound
Electrical supply: 230 V, 50 Hz
Electricity
Maximum electrical consumption: 107 W
Electricity
Standby power consumption: 2.7 W
Electricity
Current intensity: 0.47 A
Electricity

Manufacturer's sources

PDF and documentation of the model

Original documents, unmodified. Refer to the installation plan and the conditions of each data point before selecting the equipment.

The gallery sheets are summaries of Uniclima based on these documents. The external volume diagram does not represent connections, accessories, or service distances.

Frequently Asked Questions

Frequently asked questions: calderas de condensación 12021496

Is the Thema Condens 25-A suitable for a 120 m² home?

With a supposed loss of 80 W/m², a 120 m² house would need 9.6 kW: a load within the 4.9-24.2 kW useful range at 80/60 °C of this boiler. This is a calculation example, not a guaranteed area. The minimum also matters: a zone that only requires 4 kW falls below and can cause cycling. The factory maximum power is set at 15 kW; the installer must check losses, emitters, and adjustments, without confusing that configuration with the maximum available.

Can it provide hot water to two showers at 8 l/min at the same time?

Two showers of 8 l/min require 16 l/min. To raise the water from 10 to 40 °C, the temperature difference is 30 K, and the declared specific flow rate is 12.2 l/min, which is below that demand. The 14.6 l/min corresponds to a lower temperature difference of 25 K. Therefore, simultaneous use of those two showers cannot be guaranteed. It is necessary to check the inlet temperature, pressure, and consumption of the mixers; for a sustained higher demand, it is advisable to compare solutions with greater domestic hot water capacity or storage.

Does Warm Start mean that it has a storage tank for multiple showers?

No. Warm Start prepares the domestic hot water production to reduce waiting time, but it does not provide a reserve tank to cover two showers. This mixed version uses a plate heat exchanger; its 8-liter vessel is for heating and does not supply water to the taps. It is also not a Thema Condens AS: the AS are variants for heating only and are studied with external accumulation. The mention of a storage tank in the documentation of the family does not make this model 25-A a unit with an included tank.

Does it fit in the same cabinet as a boiler with a depth of 30 cm?

Not due to the dimensions of the unit: the Thema Condens 25-A has a depth of 344 mm, in addition to a height of 740 mm and a width of 418 mm. The installation requires at least 10 mm on each side, 300 mm above and below, and 600 mm in front according to the plan. It is not enough to check the space of the casing; the connections, the drainage, and access must also be available. The support is verified for 41.6 kg with water, not just for the 37.1 kg net.

Does this reference work for propane or only for natural gas?

The offer 12021496 corresponds to H-ES for natural gas. This family does allow conversion to propane G31 through the intervention of a qualified professional, with the checks and markings required by the manufacturer. It does not come converted due to its acceptance, nor should it be manipulated by the user. The manual also distinguishes a P-ES item for liquefied gas that is different. For a home with propane, confirm the variant and adaptation before purchasing; that service is not included in the offer.

Does it include MiSet thermostat and heating control from the mobile?

Reference 12021496 is without control. The set with wired MiSet uses 8000013739 and the one with radio MiSet uses 8000014383; they are not the same supply. The connection via MiGo Link is optional and requires compatible configuration. The A+ class of the system depends on the indicated regulation, it is not obtained by making the device smart. Compare the complete reference and the included accessories, especially against a Thema MiConnect from another generation.

Does the price include installation and shipping?

Includes VAT and shipping to mainland Spain. Installation and adaptations are valued separately. Reference 12021496, version H-ES without additional control. Without installation.
