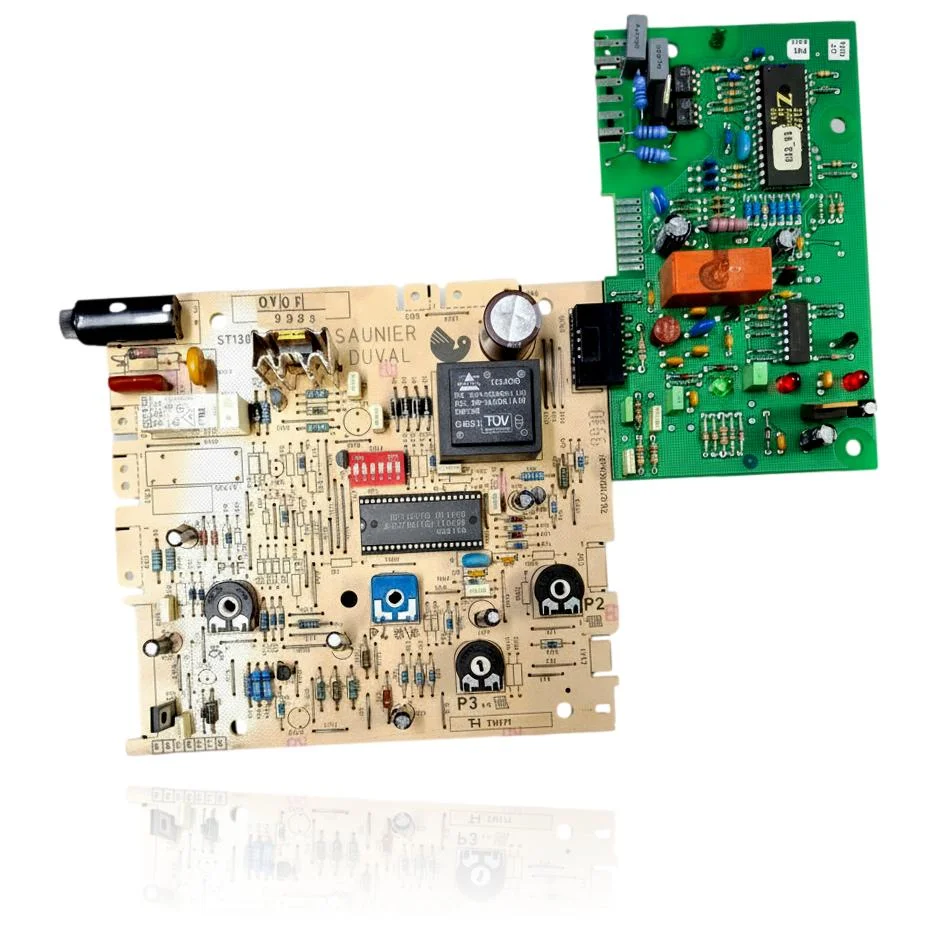

Main PCB Saunier Duval Thema C23 E Ref. 05741000

Saunier Duval boilers compatible with reference 05741000

PCB with reference 05741000. Eight confirmed compatibilities: C 23 E and F 23 E.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. 05741000 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference 05741000. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis on the PCB 05741000

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The boiler is not supplying power to anything, everything is off.

  Cause: The transformer on the PCB, which powers the rest of the circuit, has failed.

  Measure if there is power at the input of the PCB before assuming that the fault is internal.

• 02

  The boiler is working but in a mode different from what it should be.

  Cause: The configuration DIP switches on the PCB have changed position or are not making good contact.

  Check the position of the red DIP switches according to the installation manual before replacing the entire PCB.

• 03

  It turns on and after a few seconds it turns off without giving any fault code.

  Cause: A fault in the control circuit of the PCB interrupts the startup cycle for safety reasons.

  Repeat the ignition a couple of times and note if it stops at the same point in the cycle every time.

• 04

  There is no communication with the programmer or the remote control.

  Cause: The multipolar connector on the PCB is damaged or the communication circuit has failed.

  Check that the connector is properly seated and that there are no bent pins before replacing the PCB.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval 05741000 PCB.

Catalogue reference

05741000

Uniclima internal SKU

PLTEH23E

Brand

Saunier Duval

Type of part

PCBs (control boards)

Units in stock

1 unit

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Transformer standard

IEC 61558-1

Transformer certification

TUV / GBS1

Printed logo on PCB

SAUNIER DUVAL

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval F 23 E Manual (PDF) Document © Saunier Duval, provided as a technical reference.
