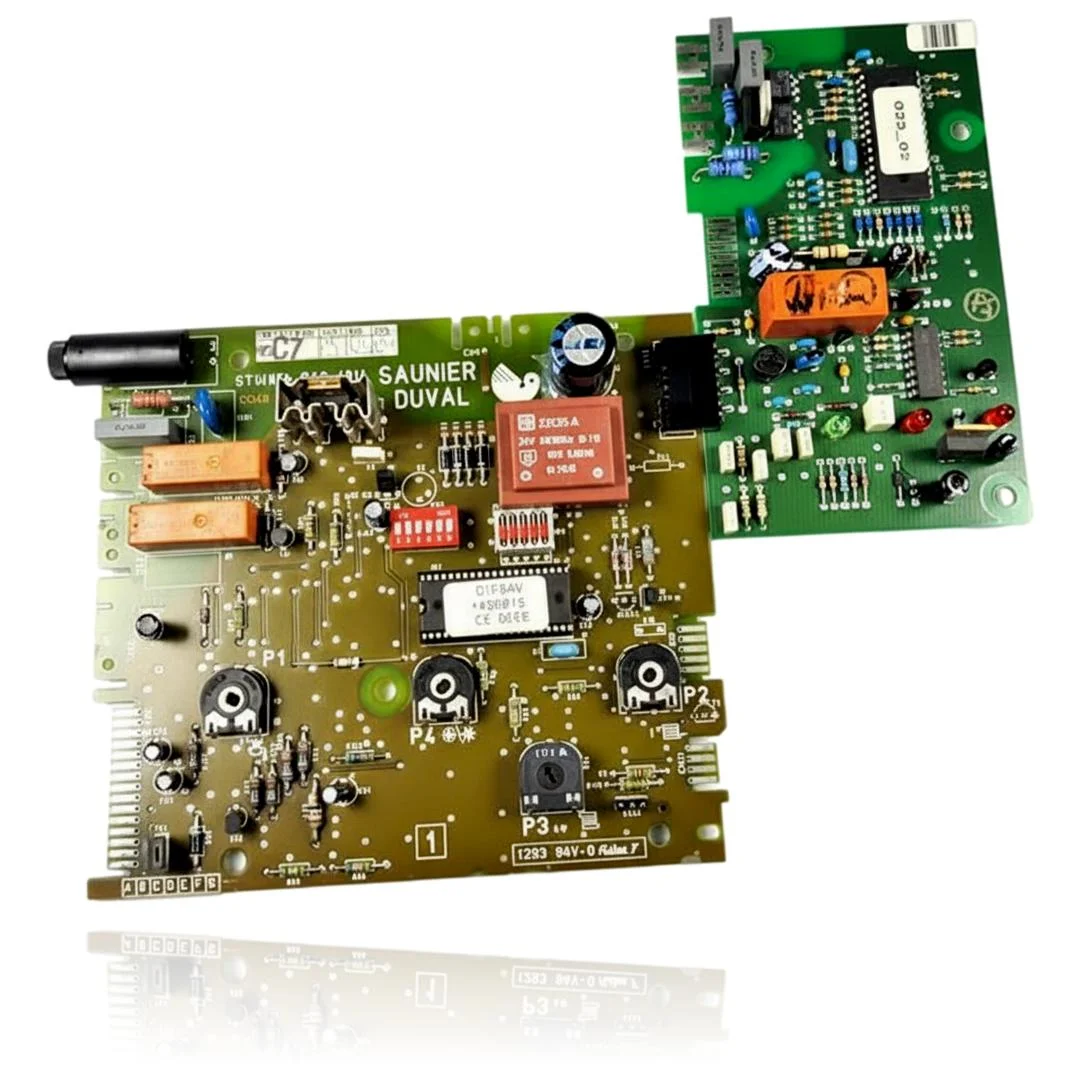

Main PCB Saunier Duval Themaplus F 23 E Ref. 05741000

Saunier Duval boilers compatible with reference 05741000

PCB with reference 05741000. Eight confirmed compatibilities: C 23 E and F 23 E.

Proven compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. 05741000 is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference 05741000. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms and faults that the PCB 05741000 resolves.

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The boiler does not start any cycle, neither for heating nor for domestic hot water, and no LED lights up.

  Cause: The main PCB is not supplying power to the control outputs, and the boiler remains completely inactive.

  Check that there is mains power to the PCB and that the main switch and external fuse are correct before replacing it.

• 02

  The pump, the fan, or the gas valve do not start even though the rest of the boiler seems to have power.

  Cause: The relay that controls that output on the PCB has stuck or does not close the contact.

  Listen for the click of the relay when requesting heating; if it doesn't sound, the fault is very localized at that control stage rather than throughout the entire PCB.

• 03

  The boiler makes consecutive ignition attempts, one after another, without managing to stay lit.

  Cause: The PCB does not maintain the flame signal or interrupts the sequence before completing the ignition cycle.

  Note if the fault always occurs at the same point in the cycle, ignition, flame detection, or a few seconds later, to narrow down whether it is the PCB or the electrode.

• 04

  The boiler shows a fault code related to the PCB or communication, and there is no way to reset it.

  Cause: An internal component of the PCB has permanently failed and no longer completes its self-check during startup.

  Try a power cut of at least a full minute, not just the reset button, before confirming that the fault is permanent.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval 05741000 PCB.

Catalogue reference

05741000

Brand

Saunier Duval

Type of part

PCBs (control boards)

Units in stock

1 unit

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Data read on the part and in the manufacturer's documentation

What we have not been able to verify does not appear here.

relay (silkscreen code)

23935-A, 24V

PCB marking (flammability standard)

1293 94V-0 — UL flammability standard for laminate; not a product reference

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval F 23 E Manual (PDF)Document © Saunier Duval, provided as a technical reference.
