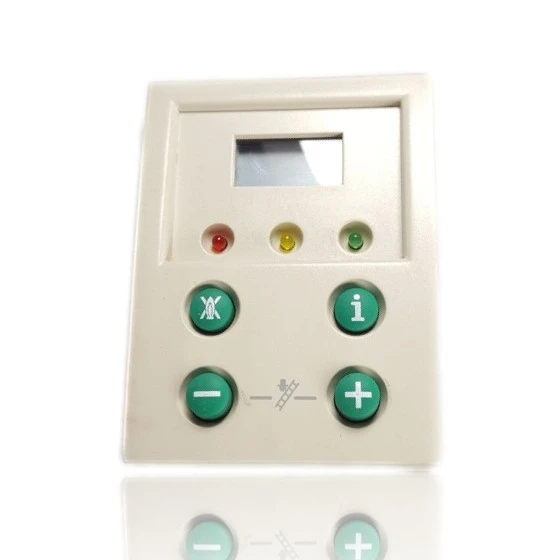

Vaillant VMW 24 282 5 R1 Turboplus ES 282 5 Electronic Display PCB Ref. 130822
When you turn on the hot water tap or activate the heating, the Vaillant VMW 24 282 5 R1 Turboplus ES 282 5 Electronic Control PCB is responsible for managing the ignition, burner modulation, and the boiler pump. If this board fails, you will notice that the boiler does not start, gets locked, or behaves erratically, and you might see the fault code F.70. It is compatible with several models from the TurboTEC plus and Turbomax plus ranges, including the VMW 24/282-5 R1, R2, and R3. A technician must confirm through diagnostics whether it needs to be replaced when you experience these symptoms or operational faults.
- Type of part
- PCBs (control boards)
- Status
- Refurbished
- Catalogue reference
- 130822
- Warranty
- 1 year
Vaillant boilers compatible with reference 130822
PCB with reference 130822. Six confirmed compatibilities: VMW 24/282-5 R1 and VMW 24/282-5 R2.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Vaillant VMW 24/282-5 R1 | Vaillant TurboTEC plus / Turbomax plus (VMW 24/282-5) | Verified |
| Vaillant VMW 24/282-5 R2 | Vaillant TurboTEC plus / Turbomax plus (VMW 24/282-5) | Verified |
| Vaillant VMW 24/282-5 R3 | Vaillant TurboTEC plus / Turbomax plus (VMW 24/282-5) | Verified |
| Vaillant VMW 24/282/3-5 | Vaillant TurboTEC plus / Turbomax plus (VMW 24/282-5) | Verified |
| Vaillant VMW 24/280-5 R3 | Vaillant TurboTEC plus / Turbomax plus (VMW 24/282-5) | Verified |
| Vaillant VMW 28/362-5 R3 | Vaillant (VMW 28/362-5) | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 130822 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 130822. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis on the PCB 130822
The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The screen does not turn on even with the boiler running.
Cause: The display board needs power from the main PCB to show the image, even if the burner is operating.
Check the wiring and the connector between the PCBs before replacing the display, as it is a common point of poor contact.
- 02
Fixed symbols or bars appear on the display that never change.
Cause: A fault in the display circuit keeps segments permanently lit, without showing the actual status.
Turn off and on the boiler from the main switch and check if the display performs its normal initial self-check.
- 03
The temperature or mode buttons do nothing when pressed.
Cause: The display integrates the buttons and sends the command to the main PCB; if its circuit fails, the command does not reach.
Check for any moisture or corrosion on the button contacts before replacing the part.
- 04
The boiler heats up, but it is unclear in which mode it is operating or if there is a fault.
Cause: When the user interface is lost, the fault code notifications are also lost, even though the boiler continues to operate.
Note if the fault started after a power outage, because sometimes it is enough to reset the communication between the PCBs.
Vaillant fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| F.70 | Fault: Invalid appliance code (DSN). | This occurs when both the display screen and the main PCB are replaced simultaneously without reprogramming the device identification; the new screen does not match the electronics. Verify by entering d.93 and adjusting the model DSN; also check the resistance/coding. |
| with | No communication with the main PCB (communication error display ↔ PCB). | The display board is not connected or is defective and does not communicate with the main PCB. Check the harness/connector between the display and the board, continuity of wiring, and, if possible, test with another compatible screen. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Vaillant 130822 PCB.
- Catalogue reference
- 130822
- Uniclima internal SKU
- DEVMW2825
- Brand
- Vaillant
- Type of part
- PCBs (control boards)
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Vaillant VMW 24/282/3-5 Manual (PDF) Document © Vaillant, provided as a technical reference.
Frequently asked questions about the PCB 130822
Does this control board work for the Vaillant VK I 320/1-3?
What can be seen in the photo of this PCB: casing, text, or any code?
