Duomax Condens 35/90 faults
Identify the code and check the version of your boiler.
Check the model before using the table.

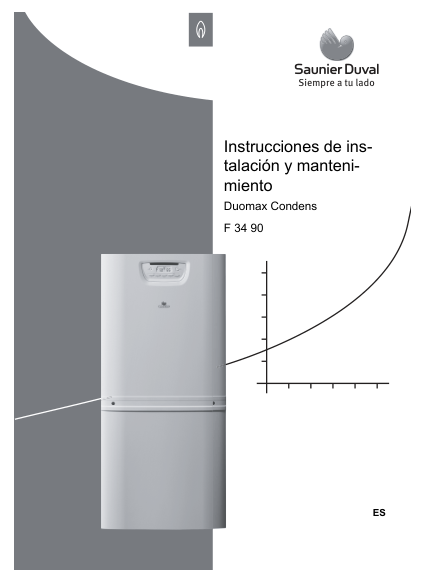

This guide corresponds to Duomax Condens F34 90, appliance reference 0010014602, according to page 7 of manual 0020181407_02. In the catalog, it is marketed as Duomax Condens 35/90. Check the accessible identification of your boiler: a commercial set reference does not replace that of the appliance.

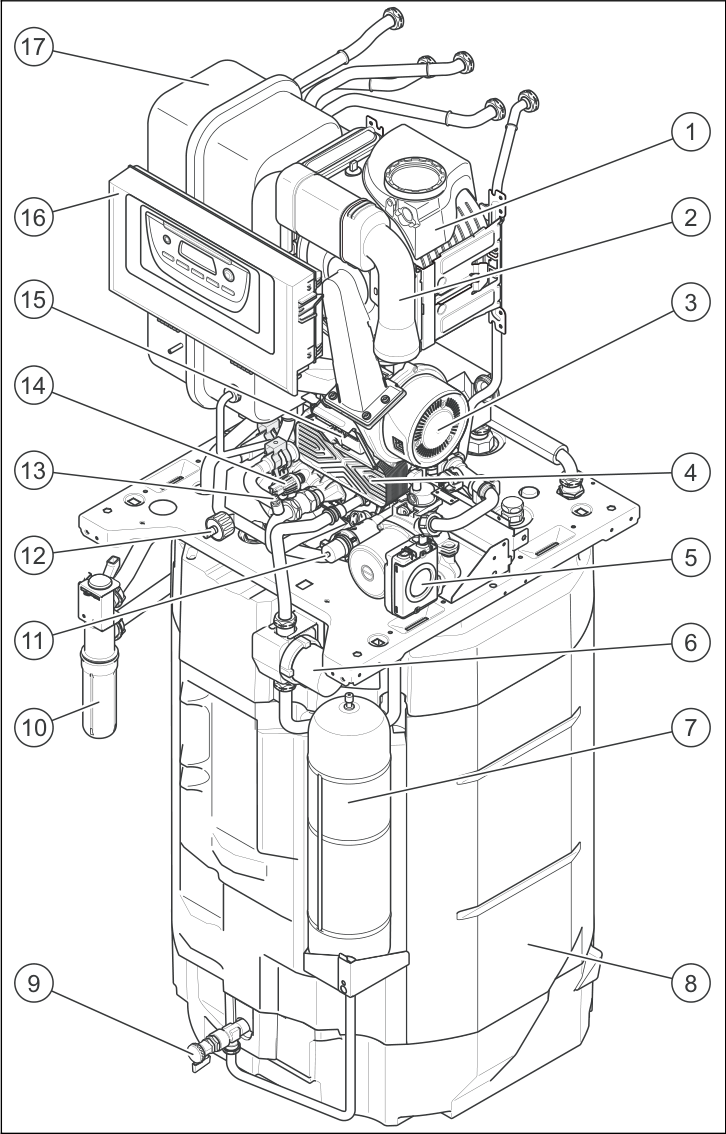

Explore the 17 components.
Locate each part.
Press a number from the diagram to identify it.
Official diagram · pp. 7–8
Locate the notice.
The manual documents these codes, but does not provide statistics to rank them by frequency. F.28 is a startup fault; F.29 occurs during operation. They do not automatically indicate that a specific part is failing.
- F.22 · Lack of water
Note the pressure displayed on the screen and if you have observed a loss.
- F.28 / F.29 · Ignition
Indicate whether the fault occurs at startup or after operating.
- F.81 · Accumulator loading
Describe whether the domestic hot water, heating, or both services are failing.
Manual codes
| Code | What does it indicate? |
|---|---|
| F.00 | The input temperature signal has been interrupted. |
| F.01 | The return temperature signal has been interrupted. |
| F.02 | Warning from the sensor that controls the accumulator load. |
| F.03 | Temperature sensor warning of the accumulator. |
| F.10 | The inlet temperature signal is short-circuited. |
| F.11 | The return temperature signal shows a short circuit. |
| F.12 | Short circuit in the load sensor circuit of the accumulator. |
| F.13 | Short circuit in the accumulator sensor circuit. |
| F.20 | The temperature limiter has caused a safety shutdown. |
| F.22 | The device has stopped due to a lack of water condition. |
| F.23 | The temperature difference between the inlet and return exceeds the expected margin. |
| F.24 | The temperature is rising too quickly. |
| F.25 | A safety feature associated with connector X20 has been activated. |
| F.26 | The control does not manage to operate the gas valve correctly. |
| F.27 | The control detects a flame signal that does not correspond to the expected state. |
| F.28 | The ignition has not been completed during the start-up. |
| F.29 | The ignition attempts have failed during operation. |
| F.32 | The control detects a fan anomaly. |
| F.35 | Insufficient air supply to the combustion assembly is detected. |
| F.42 | The resistor that identifies the configuration has an anomaly. |
| F.47 | The signal from the domestic hot water sensor at the outlet of the accumulator has been interrupted. |
| F.48 | Short circuit in the signal of the domestic hot water sensor at the outlet of the accumulator. |
| F.49 | The eBUS communication is experiencing an anomaly. |
| F.52 | The control does not correctly receive the connection from the circulating flow sensor. |
| F.53 | The signal from the circulating flow sensor shows an anomaly. |
| F.54 | Gas pressure warning, associated in the manual with F.28 or F.29. |
| F.56 | Anomaly in the regulation related to the circulating flow sensor. |
| F.57 | A fault has occurred during the safety operating mode. |
| F.61 | Anomaly in the electrical control of the gas valve system. |
| F.62 | The gas shut-off or the disappearance of the flame signal is detected with a delay. |
| F.63 | The EEPROM electronic memory has a fault. |
| F.64 | Notice affecting the electronics or NTC temperature signals. |
| F.65 | The control detects an excessive temperature in the electronics. |
| F.67 | The electronics receive a non-coherent flame signal. |
| F.68 | The flame signal is unstable. |
| F.70 | The electronic identification of the device, DSN, is not valid. |
| F.71 | The inlet sensor records a temperature that remains constant. |
| F.72 | The inlet and return temperature signals show an abnormal difference. |
| F.73 | The pressure sensor signal is below its valid range. |
| F.74 | The pressure sensor signal is above its valid range. |
| F.75 | The flow detected when starting the pump is insufficient. |
| F.77 | The expected response from the gas damper or the condensate pump is missing. |
| F.81 | Notice related to the charging pump of the accumulator. |
| F.82 | Anomaly in the external current anode circuit. |
| F.83 | When starting the burner, the sensors do not detect the expected temperature variation. |
| F.84 | The measured temperatures at the inlet and return are not consistent. |
| F.85 | The control detects an incorrect arrangement of the inlet or return sensors. |
| F.86 | Notice of the safety contact associated with underfloor heating. |
| Communication | The display cannot communicate with the control board. |
No matches found. Please check the code and the version of the equipment.
What can you provide without opening the boiler?
- Screen and identification
Photograph the complete code and the accessible label without disassembling the casing.
- Moment and affected service
Indicate if it happens when requesting heating, opening a tap, or recovering hot water from the accumulator.
- Background
Note if there was a supply cut, a water leak, or a recent intervention.
Do not manipulate gas, electrical connections, combustion, or flue ducts. Use only the controls provided in the user manual; do not chain resets if the fault reappears. In case of a gas smell, avoid flames and switches, leave the area, and notify the distributor from a safe location. If there is an immediate danger, call 112.
Does it show S.xx instead of F.xx?
The manual separates the operating states S.xx of the faults F.xxFor example, S.31 can indicate summer mode or lack of demand, and S.34 corresponds to frost protection. Do not convert a state into a fault by changing its letter. Reference: pages 40–41 of the manual.
Before requesting a repair
Does F.22 require changing the pressure sensor?
No. The manual outlines several possible causes. The fault code is not sufficient to identify a spare part nor does it confirm a diagnosis.
Is the diagram a guide to disassemble the equipment?
No. It allows recognizing the names used by the manufacturer. The opening and internal interventions correspond to qualified personnel.
When to compare repair and replacement?
After obtaining the diagnosis, budget, and verification of the spare part. The isolated warning does not indicate that the boiler needs to be replaced.
Consult repair Saunier Duval · Consult maintenance
Model of this guide

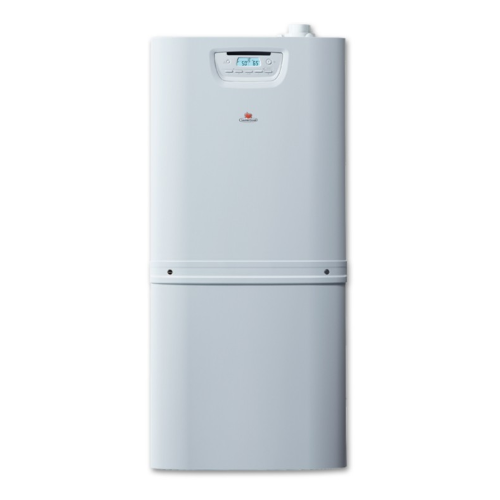

Saunier Duval Duomax Condens 35/90The commercial sheet provides information on price, availability, and supply; installation is quoted separately.
