Faults and fault codes of IsoFast H-Condens MA36 N-INT

Short answer

Saunier Duval IsoFast H-Condens — Uniclima

Saunier Duval IsoFast H-Condens faults

Identify the code and check the version of your boiler.

MA36-CF/1 · N-INT

Consult fault codes

Check the model and reference of the device.

Guide to IsoFast H-Condens MA 36-CF/1 (N-INT)for the appliance references 0010025226 and 0010034218 declared on page 7 of manual 0020298498_00, dated 22/04/2021. The catalog sells the presentation MA 36-CF/1-CfI (N-INT). Confirm the accessible identification before using the table; it does not correspond to the IsoFast MA35-CS.

The edition that explicitly names N-INT is used. The subsequent documentation 0020298498_03 uses N-ES for those references; if the documentation that accompanies your unit differs, the one for that unit must prevail.

Find the message on the screen.

  1. F.022

    Insufficient water or pressure.

  2. F.028

    The ignition does not confirm flame.

  3. F.075

    Insufficient pressure variation when starting the pump.

What can you check without opening the boiler?

Note the complete code, the indicated pressure, and whether it occurs when requesting heating or hot water. Provide a photograph of the display and the accessible identification. Avoid repeated resets if the fault returns; use only the operations from the user manual of your unit.

Do not open the casing or manipulate gas, electrical connections, combustion, or flue gas. If you smell gas, avoid flames and switches, leave the area, and notify the distributor's emergency service from a safe location; in case of immediate danger, call 112.

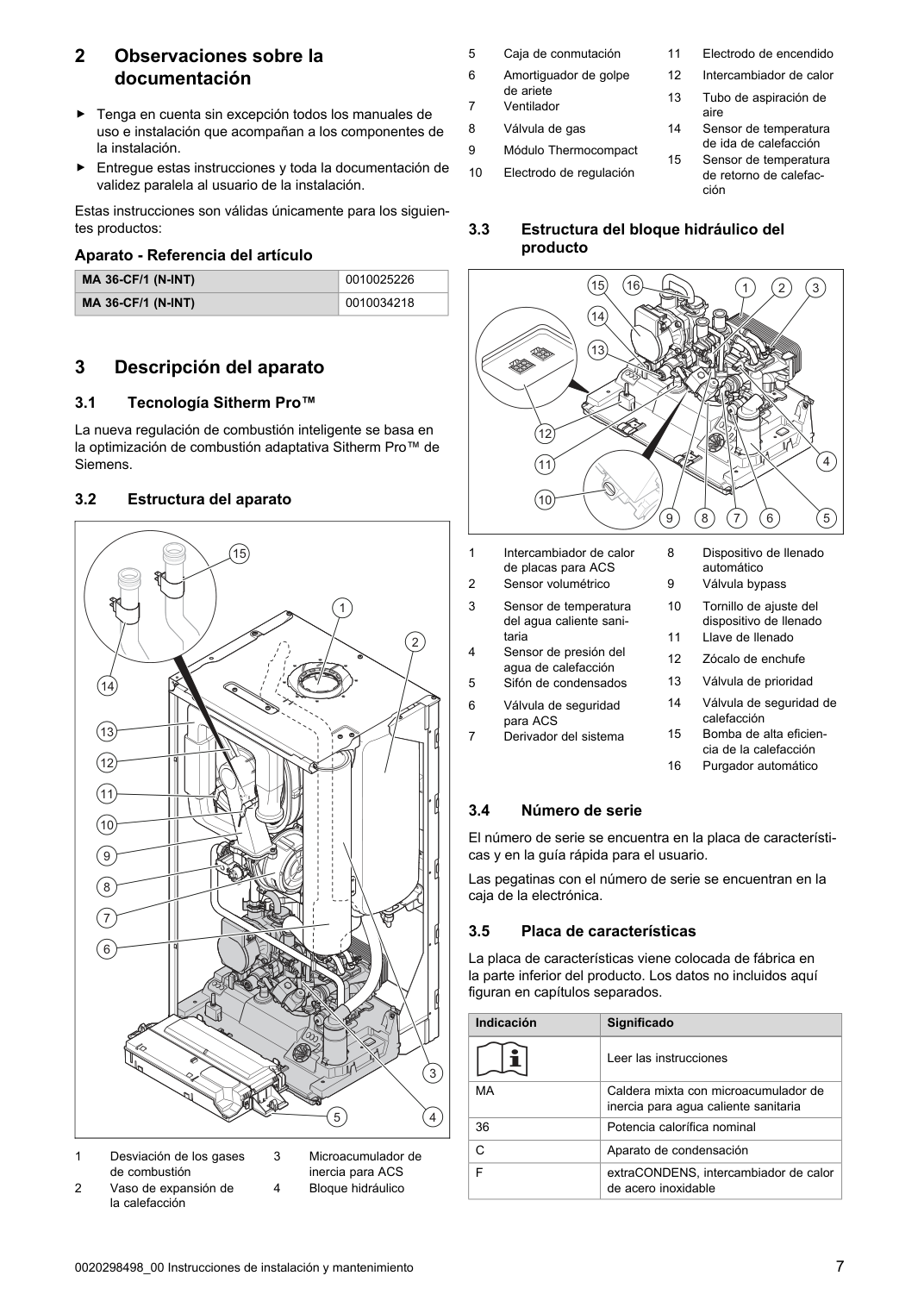

Saunier Duval IsoFast H-Condens components Manufacturer's diagram
Manufacturer's sheet with its original numbering. Click on the image to enlarge it; the complete legend is in the manual. Page 7 of the manual ↗

N-INT edition codes

The 71 notices below summarize the meaning of the fault code, without reproducing the repair operations. The manufacturer indicates that some entries depend on the configuration. The table does not measure the frequency of faults nor does it identify a spare part on its own.

Code What does it indicate?
F.000 The temperature signal is missing in the heating supply.
F.001 The return temperature signal is missing.
F.002 The temperature signal is lost in the sanitary connection.
F.003 The temperature reading of the accumulator is lost.
F.010 Short circuit in the supply temperature measurement.
F.011 Short circuit in the return temperature measurement.
F.012 Short circuit in the domestic hot water sensor.
F.013 Short circuit in the thermal sensor of the accumulator.
F.020 The thermal safety device stops the gas flow when the permissible temperature is exceeded.
F.022 Lack of water or insufficient water pressure.
F.023 Excessive difference between the supply and return temperature.
F.024 The water heats up faster than expected.
F.025 Excessive temperature in the combustion gases.
F.027 The control detects flame with the burner off.
F.028 The ignition fails to confirm the presence of a flame.
F.029 The flame goes out during operation and the ignition fails.
F.032 The fan is spinning outside the allowed range.
F.035 An obstruction in the air or flue gas path is detected.
F.040 The regulation detects an insufficient excess air factor.
F.042 The coding of the device or the gas group is not valid.
F.044 Insufficient ionization signal and failure of its adaptation.
F.047 Incoherent reading from the domestic hot water sensor at the outlet of the internal accumulator.
F.049 Electrical problem in eBUS: short circuit or incompatible polarity between active sources.
F.057 The combustion control is faulty, including its emergency mode.
F.061 The electronic control does not respond within the expected times.
F.062 The flame outage is detected too late.
F.063 Fault when checking the reading and writing of the EEPROM memory.
F.064 The electronics do not correctly convert the signal from a sensor.
F.065 An electronic component exceeds its operating thermal margin.
F.067 Faulty operation warning of the flame control.
F.068 The flame reading is unstable.
F.070 Missing, incorrect, or incompatible DSN identification with the coding.
F.071 The supply temperature reading is not consistent.
F.072 Invalid variation between the supply and return temperature readings.
F.073 Short circuit in the water pressure sensor.
F.074 Interruption of the signal that measures the water pressure.
F.075 The pressure barely increases when starting the heating pump.
F.076 The thermal protection of the main heat exchanger is activated.
F.077 The condensate pump or the flue damper prevents the burner from operating.
F.078 The device does not support the installed control module.
F.080 Anomaly in the cold water sensor of the internal accumulator.
F.081 Fault in the supercharging process described by the manufacturer.
F.083 After starting the burner, the temperature does not rise or does so too slowly.
F.084 The supply and return temperatures show an inconsistent difference.
F.085 The equipment detects an incorrect placement of the NTC sensors.
F.087 There is a missing connection between the ignition transformer and the PCB.
F.088 The electrical connection of the gas valve is lost.
F.089 The integrated pump does not match the model identified by the device.
F.092 The gas type adaptation has not been completed correctly.
F.095 The gas valve actuator reaches its minimum step limit.
F.096 The gas valve actuator reaches its maximum step limit.
F.105 The adaptation of the gas valve requires inspection after replacing control components.
F.194 Fault in the power supply of the PCB.
F.195 The supply voltage drops significantly.
F.196 The supply voltage increases significantly.
F.317 The reading of the domestic hot water flow is not coherent.
F.318 The three-way motorized valve does not move.
F.320 The pump remains locked after the automatic unlocking attempt.
F.321 Electronic fault warning in the pump.
F.322 The pump overheats and the emergency mode does not reduce its temperature.
F.323 Pump operation detected without water.
F.324 The electrical connection of the pumps is interrupted.
F.325 The control detects a fault in the heating pump.
F.326 The hydraulic test detects at least two components that are not functioning.
F.327 The lack of connection of the sanitary circuit limits the minimum flow of heating.
F.344 The control indicates that the regulation electrode can no longer be used.
F.346 The ignition fails with a sudden start condition.
F.363 Memory read or write error on the display.
F.390 Initialization does not complete after updating the software.
F.707 The screen and the PCB are unable to communicate.
F.905 The interface loses communication with the CIM module.

Symptoms without code

If there is a lack of hot water, it does not heat or loses pressure without displaying a warning, describe when it occurs and if there was an intervention or supply cut. The absence of a fault code does not rule out a fault; it also does not allow attributing it to the PCB, a pump, or a sensor.

Request review · Boiler maintenance

Does the warning still appear on your Saunier Duval boiler? Consult the Saunier Duval boiler technical service in Madrid or the spare parts and assistance for Saunier Duval.

Frequently asked questions: this generation

No. This page documents the MA36-CF/1 N-INT and the appliance references indicated above.

No. Describe a start-up without flame confirmation, which can be due to different causes. The part is determined after checking the appliance.

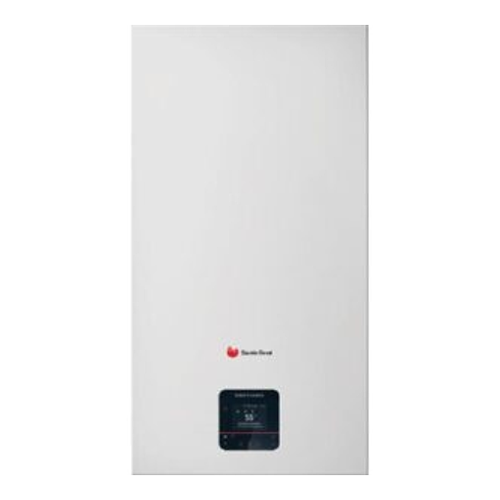

Saunier Duval Isofast Condens MA 36-CF/1-CfI boiler (n-int)

Manual and documentation

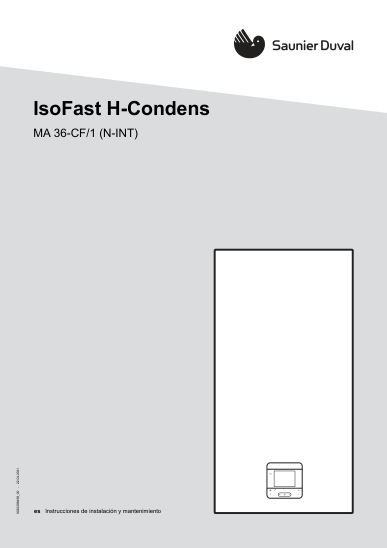

Manufacturer's manual

Saunier Duval IsoFast H-Condens

0020298498_00 · 04/22/2021 · 68 pages · 7.9 MB

Document editing

Edition 0020298498_00 (04/22/2021), identifying N-INT. Copy of the manufacturer's document retrieved from a public archive; it is not presented as the latest edition.
