Fagor Touch Screen Selector Control Board FE 24 NOx Ref. AS0006066
Refurbished Fagor PCBs (control boards)

Fagor Touch Screen Selector Control Board FE 24 NOx Ref. AS0006066

The Fagor Touch Selector Screen Control Board FE 24 NOX is an electronic component that manages the ignition, burner modulation, pump, and safety features of the boiler. When it fails, the boiler may not start, become locked, or exhibit erratic behavior, and the fault code F8 may appear: Communication failure between the main circuit and the control circuit. This screen is compatible with models from the Fagor FE NOX range, such as the FE 24 NOX and the FE-24NOX COMFORT LOW NOX, among others. A technician must confirm through diagnosis whether it needs to be replaced when the mentioned symptoms occur.

Type of part
PCBs (control boards)
Status
Refurbished
Catalogue reference
AS0006066
Warranty
1 year
VAT included Stock · 1 unit
Compatibility

Fagor boilers compatible with reference AS0006066

PCB with reference AS0006066. Two confirmed compatibilities: FE 24 NOX and FE-24NOX COMFORT LOW NOX.

Verified compatibility

Boiler modelFamilyVerification
Fagor FE 24 NOxFagor FE NOXVerified
Fagor FE-24NOX COMFORT LOW NOxFagor FE NOXVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if the reference AS0006066 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference AS0006066. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB AS0006066

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The boiler is unresponsive: the display does not turn on and no indicator lights are on.

    Cause: A fault in the PCB cuts off power to the rest of the control system.

    Measure with a multimeter that current is reaching the PCB before replacing it.

  • 02

    It turns on and then stops with a different fault code each time.

    Cause: Relays or components on the PCB intermittently failing generate incorrect readings from the sensors.

    Note the codes of various starts; if they change without relation to a fixed sensor, the PCB is the suspect.

  • 03

    The thermostat or the programmer is unable to turn on the boiler, although it seems to be functioning normally.

    Cause: The PCB does not send the ignition command to the power stage, or there is a damaged connector in that communication.

    Check the wiring of the thermostat to the PCB before declaring the PCB faulty.

  • 04

    The relay clicks when requesting heat, but the boiler does not start the ignition cycle.

    Cause: The relay closes the contact but there is no current reaching the next stage: fan, gas valve, or electrode.

    Measure if the fan or the gas valve receives power at the moment of that click before replacing the PCB.

Fagor fault codes that require diagnosis

CodeFaultTechnical checks
F8Communication fault between the main circuit and the control board circuit.The AS0006066 control board/display may be faulty or without power, causing a loss of communication with the main PCB. Check service voltages at the control board connector, continuity of the harness/ribbon, and test with another AS0006066 module to rule out a short or internal fault.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Fagor AS0006066 PCB.

Catalogue reference
AS0006066
Uniclima internal SKU
PCCFFE24N
Brand
Fagor
Type of part
PCBs (control boards)
Units in stock
1 unit
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days
Frequently asked questions

Frequently asked questions about the PCB AS0006066

Is this PCB compatible with my boiler Fagor FE24NOX1B or FE24NOX1N?
Yes, it is indicated as compatible with FE24NOX1B and FE24NOX1N (and their variants 1FE24NOX1B / 1FE24NOX1N).

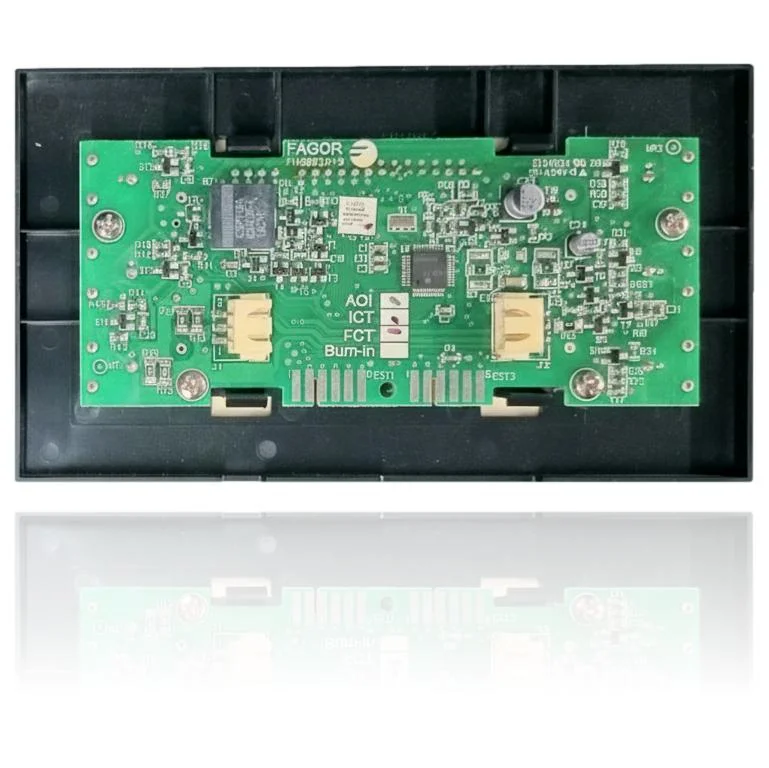

What does the legend 'AOI ICT FCT Burn-in' mean that appears on the PCB of the FE24NOX1B?
It is a manufacturing quality control legend; it does not provide information about the manufacturer or the part reference.
