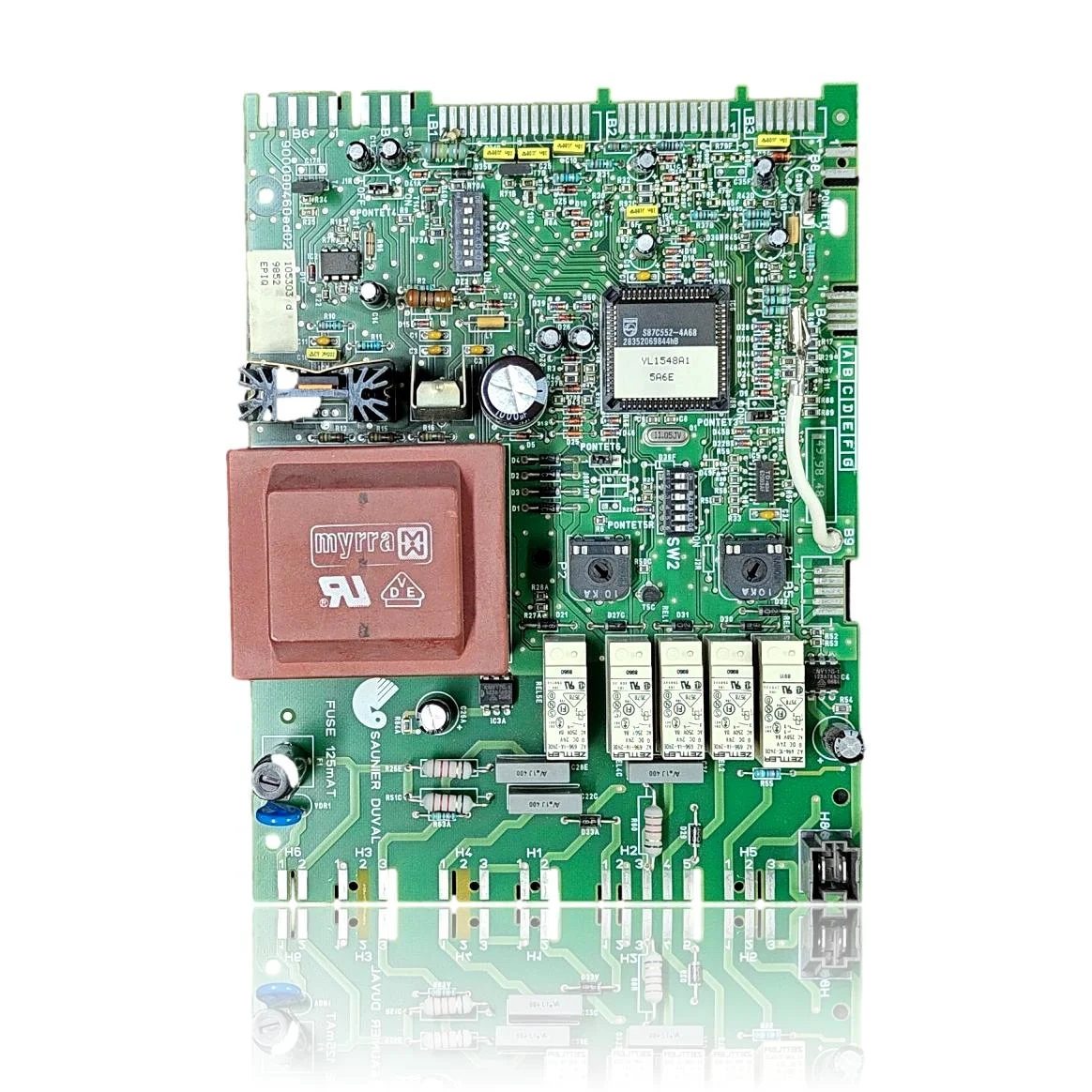

Main PCB Saunier Duval Isofast C 35 E Ref. S10470

Saunier Duval boilers compatible with reference S10470

PCB with reference S10470. 33 verified compatibilities: F 25 E and F 24 E.

Proven compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. S10470 is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference S10470. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms and faults that the PCB S10470 resolves

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The boiler does not turn on: there is no display, it does not respond to buttons, and nothing starts.

  Cause: The main PCB controls the power supply and the start-up of the components; if it fails, the boiler does not respond.

  Check if there is power to the boiler (plug, main fuse, residual current device) and verify that the fuse on the PCB is not blown.

• 02

  The boiler turns on, works for a while, and then stops by itself, or it locks out without visible faults related to gas, water, or flue.

  Cause: An intermittent fault in the PCB can cause incorrect readings from the sensors and shut down the boiler for safety without a real reason.

  Note if the cut follows a pattern (always at the same minutes, with hot water, with heating) before ruling out the PCB, as this may indicate a problem with a specific sensor.

• 03

  An error code appears on the screen that does not match any real symptoms: the flame ignites properly, there is water pressure, and the flue is functioning.

  Cause: If the reading circuit or the microprocessor of the PCB fails, it can generate fault codes that are inconsistent with the actual state of the installation.

  Check the exact code in the boiler manual and first rule out the component indicated by that code (pressure switch, sensor, gas valve) before replacing the PCB.

• 04

  The pump, the fan, or some valve do not start when they should, although the rest of the boiler seems to be functioning.

  Cause: Each of those elements is activated through a relay on the PCB; if a relay fails, only what that relay controls stops functioning.

  With the boiler running, check if that component starts when forced manually (if your model allows it) to determine if the issue is with the relay or the component itself.

Fault codes from Saunier Duval that this spare part resolves.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval S10470 PCB.

Catalogue reference

S10470

Brand

Saunier Duval

Type of part

PCBs (control boards)

Units in stock

1 unit

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Data read on the part and in the manufacturer's documentation

What we have not been able to verify does not appear here.

PCB code

105303 d

Fuse

125 mA T

Transformer

MYRRA

Relays

ZETTLER (5 pcs.)

Certifications

VDE, UL, CE, EN 60950

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval S C 24 E Manual (PDF)Document © Saunier Duval, provided as a technical reference.
