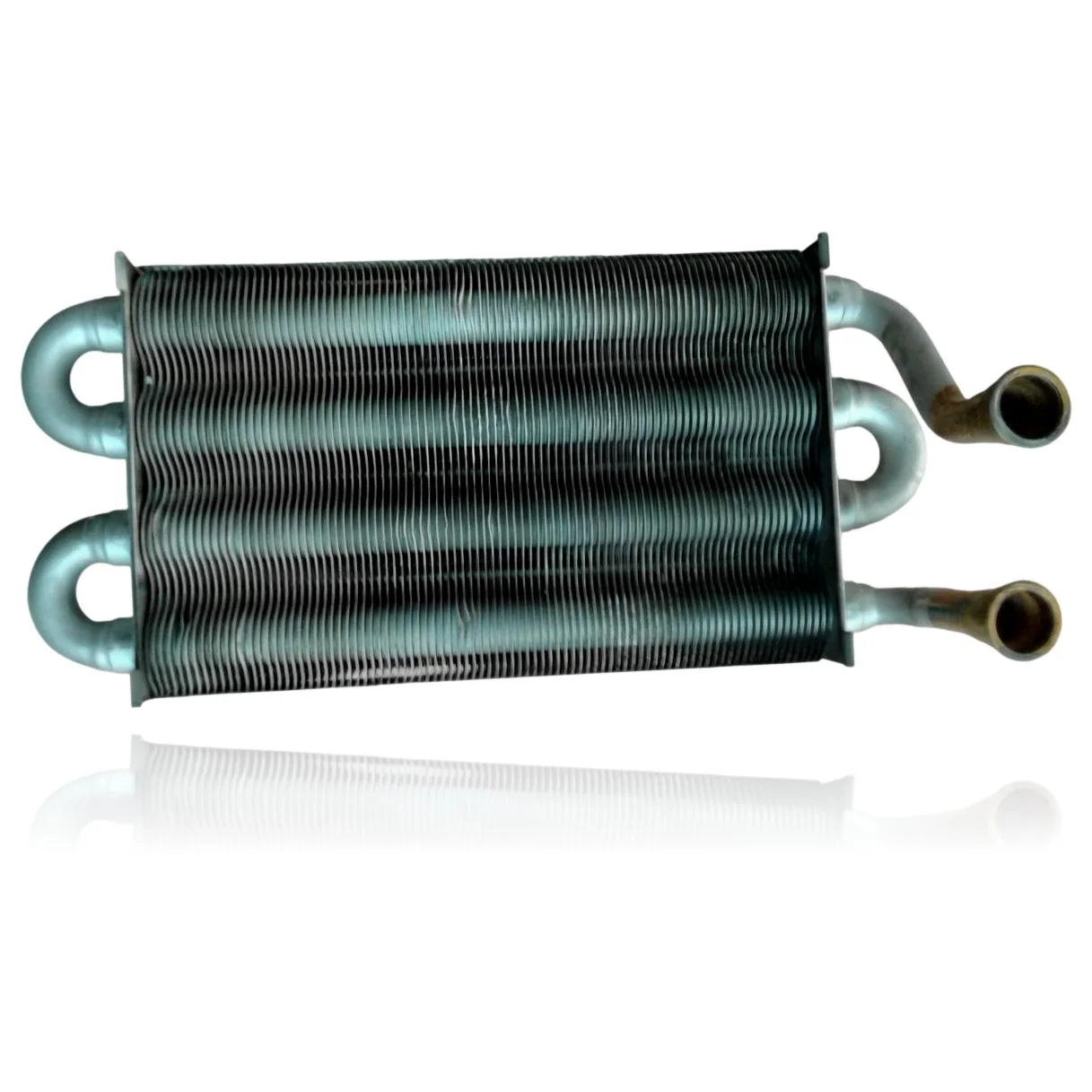

Saunier Duval Primary Bithermal Heat Exchanger ThemaClassic F24E Ref. S1003000
- Delivery to the EU in 2–6 working days · Depending on the country; cost shown at checkout
- Returns within 14 days, spare part not installed
- Inspected and tested, warranty 1 year
Is it compatible with your boiler?
Saunier Duval boilers compatible with reference S1003000
- F24EThemaClassic
- C24EThemaClassic
- SF24EThematek
- F24ECombitek
- C24ECombitek
Can’t see your model? The printed reference takes priority. How to check it or send us a photo on WhatsApp.
How to check if Ref. S1003000 is the spare part for your boiler
-
Read the reference on your bithermal heat exchanger
It must show S1003000 on the label or the screen print. If it is not legible, do not work it out from its shape.
-
Find the model of your boiler
It is on the rating plate. Look it up in the compatible list.
-
Compare connections and body
With the original spare part, before fitting.
-
If you are unsure, send us a photo
For the screen print: we will confirm it with you before you buy.
Send photo via WhatsApp
Symptoms that require diagnosis on this spare part (bithermal heat exchanger S1003000)
The hot water tap delivers cold and hot water intermittently, without being consistent
- Cause
- The copper coil becomes irregularly blocked with scale, so the heating of the water is not uniform
- What to do
- First, check the pressure of the installation and the cold water inlet filter before considering replacing the heat exchanger
There are damp stains or dripping at the bottom of the boiler, in the area of the heat exchanger
- Cause
- Over the years, the copper body can be perforated due to internal corrosion
- What to do
- With the boiler under pressure, locate whether the dripping is coming from the body of the heat exchanger or from a fitting that can simply be tightened
The boiler makes a bubbling noise just when starting the domestic hot water
- Cause
- It is typical of the limescale accumulated between the copper fins, which causes localized overheating
- What to do
- Note if the noise occurs only when requesting domestic hot water and not during heating; that pattern suggests the heat exchanger before replacing it.
One circuit heats perfectly and the other does not respond the same (heating works well, domestic hot water does not, or vice versa).
- Cause
- The bivalent body distributes heat between the two circuits, and a partial obstruction first affects one of them
- What to do
- Check the operation of the 3-way valve before assuming that the heat exchanger is the source of the fault.
Electrical work and opening the boiler are jobs for a technician. Repair and diagnosis
Technical sheet: bithermal heat exchanger Saunier Duval S1003000
In the Saunier Duval ThemaClassic range boilers, the ThemaClassic F24E dual-purpose primary heat exchanger is the component responsible for transferring heat from the primary circuit to the domestic hot water instantly. When this component fails, you will notice that the water comes out lukewarm or with fluctuating temperatures, as well as a decrease in the flow of hot water. This heat exchanger is compatible with the F24E and C24E models of the ThemaClassic range, as well as with the SF24E from the Thematek range and the F24E and C24E from the Combitek range. A technician must confirm through diagnosis whether replacement is necessary when the mentioned symptoms occur, to ensure an adequate supply of hot water.
Frequently asked questions about the spare part bithermal heat exchanger Saunier Duval S1003000
Is the part that the Saunier Duval ThemaClassic F 24 E uses a plate heat exchanger?
No, it is a dual-function coil heat exchanger with copper fins, not a flat plate one, according to the photo of the part.
Does this heat exchanger fit a Combitek F 24 E boiler?
Yes, the Combitek F 24 E is on the list of compatible models, along with Combitek C 24 E, Thema, and ThemaClassic in C24E/F24E format.
Is the same heat exchanger suitable for the Thema C 24 E?
Yes, the Thema C 24 E is listed as compatible with this bivalent heat exchanger, along with the other boilers from the Combitek, Thema, and ThemaClassic ranges.
Why does the heat exchanger of a ThemaClassic F 24 E fail?
It should be checked when there are leaks, noise due to accumulated scale, or lack of domestic hot water. Replacement requires a technical diagnosis.
What is the reference for the Saunier Duval bithermic primary heat exchanger?
To confirm compatibility, check the manufacturer's reference and the exact model of the equipment.
How do I know if this spare part (bithermal heat exchanger) S1003000 is the right one for my Saunier Duval boiler?
Look at the reference printed on the installed spare part (bithermal heat exchanger): it should read S1003000. Then check the model on your boiler’s rating plate. This spare part (bithermal heat exchanger) has five verified compatibilities, in the families ThemaClassic, Thematek and Combitek. If you cannot find the reference or your model is not on the list, send us a photo via WhatsApp and we will confirm it before you buy.
What does it mean that this spare part (bithermal heat exchanger) is reconditioned?
That it is not a new spare part: it is sold inspected and tested, with a 1-year warranty. If in the end you do not install it, you have 14 days to return it.
How much does shipping cost and how long does it take to arrive?
TIPSA shipping: 24/48 working hours to mainland Spain and 2–6 working days to the EU, depending on the country. No shipping to the Balearic or Canary Islands, Ceuta or Melilla.
The exact cost appears in your cart before you pay. Check delivery times and shipping rates by country.
Can I return it if it turns out not to be the right spare part for me?
Yes. You have 14 calendar days from when you receive it to return this spare part bithermal heat exchanger, provided it is uninstalled, unused and in its original packaging. The return shipping is at your expense, unless the error was ours or the spare part arrives faulty.
The exception is electronic boards and electronic components, for which returns are not accepted: they are inspected and prepared for a specific appliance and, once connected, their condition cannot be checked. Read the returns policy.
