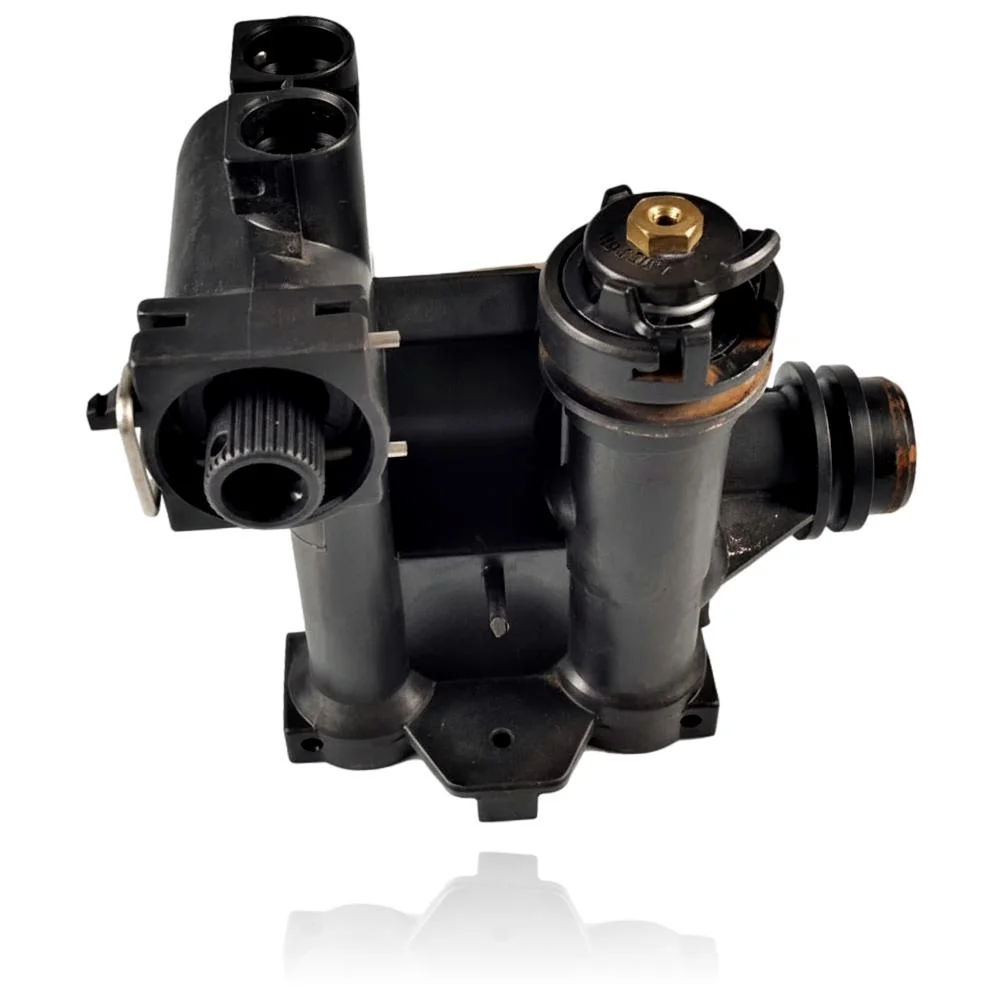

Right Hydraulic Group Chaffoteaux 3-Way Valve Elexia Comfort 24 FF Ref. 61301936
When you open the tap or turn on the heating, the Right Hydraulic Group Chaffoteaux 3-Way Valve Elexia Comfort 24 FF Ref. 61301936 is responsible for directing the water between the heating circuit and the domestic hot water circuit. If this valve fails, you will notice that you have hot water but no heating, or vice versa, or even that both circuits are mixing. This part is installed in the Elexia Comfort 24 FF boiler, among others. It is advisable to replace it if you experience these water distribution issues.
VAT included
Consult via WhatsAppChaffoteaux boilers compatible with reference 61301936
3-way valve with reference 61301936. A proven compatibility: Elexia Comfort 24 FF.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Chaffoteaux Elexia Comfort 24 FF | Chaffoteaux Elexia Comfort | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. 61301936 is the part for your boiler
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 61301936. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the 3-way valve 61301936 resolves.
The 3-way valve diverts water between heating and domestic hot water. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
There is no domestic hot water even though the heating works, or vice versa.
Cause: The valve gets stuck in one position and does not direct the water to the correct circuit.
Before changing the group, check that the gas valve motor is receiving power when the boiler requests the change and that it is not mechanically stuck.
- 02
The water comes out lukewarm or mixed between heating and domestic hot water.
Cause: The internal shutter does not fully close a passage and allows water to flow into both circuits simultaneously.
Check that there is no limescale or dirt on the valve seat before replacing the entire hydraulic group.
- 03
Water leak from the hydraulic group body
Cause: The plastic body cracks or the internal seals lose tightness with use.
Locate the exact point of the leak with the boiler running; if it comes from an accessible joint, consider whether it's enough to replace it rather than the entire assembly.
- 04
The boiler makes a knocking or clicking noise when switching from heating to domestic hot water.
Cause: The internal mechanism of the valve moves with friction or the return spring is worn out.
Listen to see if the noise occurs exactly when a hot water tap is opened, so you can confirm that the source is the switching and not the pump.
Fault codes Chaffoteaux that this part resolves
| Code | Fault | Diagnosis and solution |
|---|---|---|
| 40-50-60-80 | Distribution valve blocked in heating | The 3-way valve gets stuck in the heating position and does not switch to domestic hot water; the control detects the incorrect flow diversion and enters a fault. Verify by requesting DHW and observing if the 3-way valve switches (movement of the actuator/rod or position micro) or by powering the motor to check the travel. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the Chaffoteaux 3-way valve 61301936
- Catalogue reference
- 61301936
- Brand
- Chaffoteaux
- Type of part
- 3-way valves
- Units in stock
- 3 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the 3-way valve 61301936
What exactly is the hydraulic group of the Maya 24 FF?
When should this hydraulic group be replaced in an MC 2 24 CF?
Is this hydraulic group suitable for a Maya 28 FF B?
