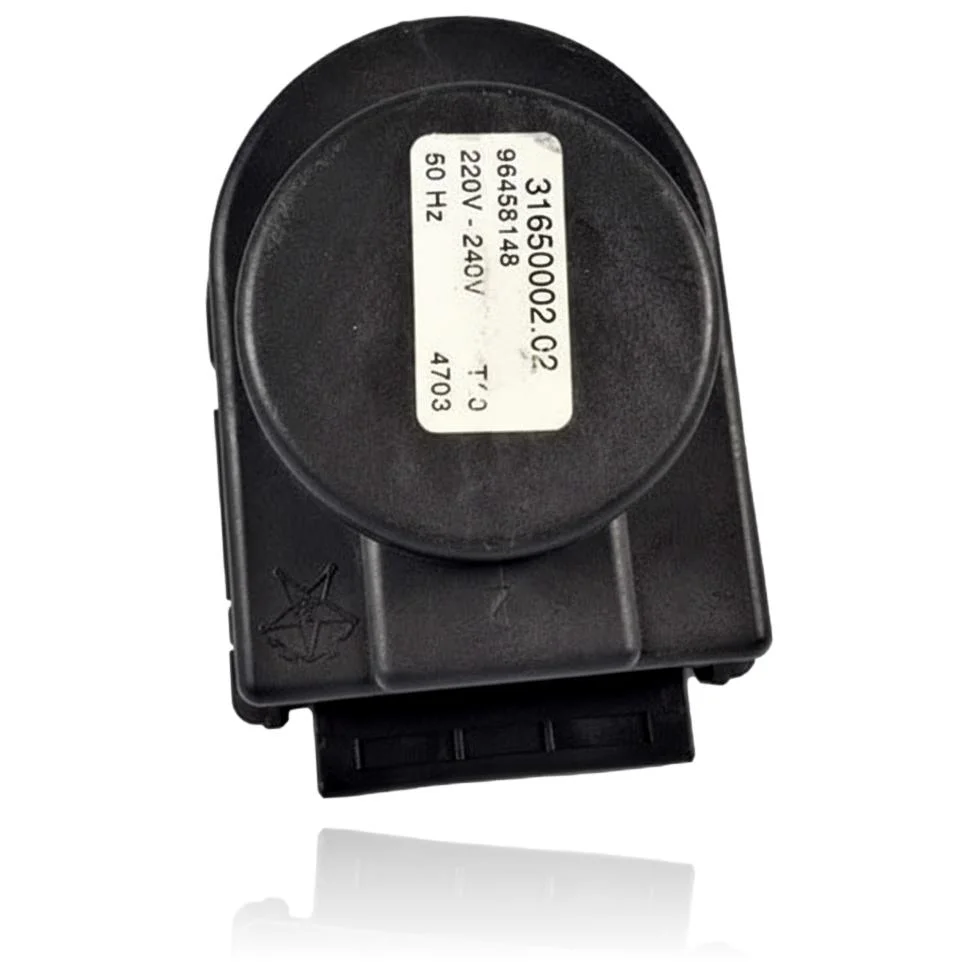

Three-Way Valve Actuator Motor Saunier Duval Isofast F28 E Ref. S5720600

Saunier Duval boilers compatible with reference S5720600

3-way valve with reference S5720600. 25 confirmed compatibilities: C 24 E and F 24 E.

Proven compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. S5720600 is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference S5720600. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms and faults that the S5720600 three-way valve resolves.

The 3-way valve diverts water between heating and domestic hot water. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The boiler shows a fault related to the motor of the 3-way valve or the limit switch.

  Cause: The motor does not indicate to the control unit that it has reached the final position.

  Check if the fault occurs when requesting domestic hot water or heating; this will indicate in which direction the gas valve is failing.

• 02

  The motor does not turn or stops halfway when switching circuits.

  Cause: The internal gear is worn out or there is an obstruction preventing the full rotation.

  With the boiler turned off, try to turn the shaft of the valve manually; if it moves well, the problem is with the motor and not with the valve.

• 03

  The radiators remain cold even though the boiler is functioning and delivering hot water correctly.

  Cause: The valve has remained in the domestic hot water position and does not switch to heating.

  Switch to heating mode from the control and check if you hear or feel movement in the area of the gas valve.

• 04

  The hot water comes out intermittently, as if it cuts off and then comes back.

  Cause: The valve oscillates between positions without properly seating in the domestic hot water circuit.

  Check if the cut coincides with noises in the gas valve; if so, the mechanism is not securing itself in the correct position.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval S5720600 three-way valve.

Catalogue reference

S5720600

Brand

Saunier Duval

Type of part

3-way valves

Units in stock

3 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Data read on the part and in the manufacturer's documentation

What we have not been able to verify does not appear here.

voltage

220V-240V

frequency

50Hz

Temperature class

T70

Secondary code

96458148

Batch code or date

4703

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval F 28 E Manual (PDF)Document © Saunier Duval, provided as a technical reference.
