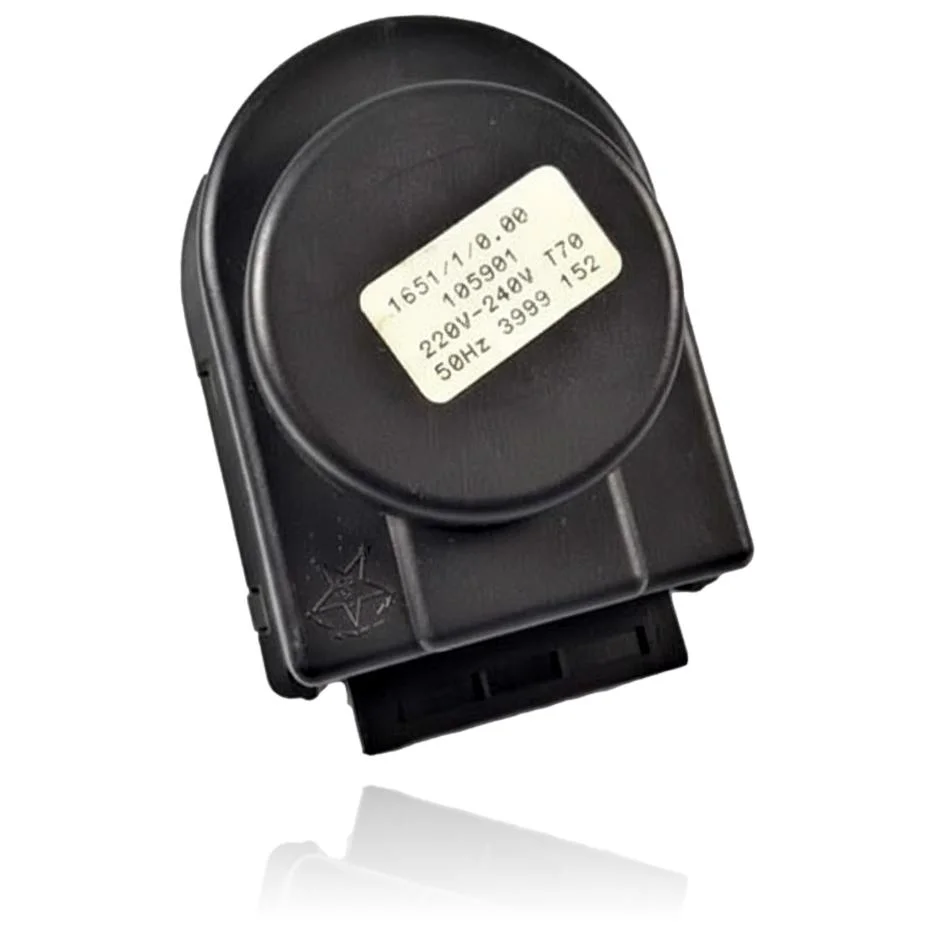

3-Way Valve Actuator Motor for Isofast, Isomax, Themaclassic, and Twin Boilers

Saunier Duval boilers compatible with reference S5720600

3-way valve with reference S5720600. 25 confirmed compatibilities: C 24 E and F 24 E.

Proven compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. S5720600 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference S5720600. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis in the 3-way valve S5720600

The 3-way valve diverts water between heating and domestic hot water. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The domestic hot water comes out lukewarm while the heating is on and functioning well.

  Cause: The valve does not completely close the flow to heating when it needs to provide domestic hot water, and the water mixes.

  Turn off the heating for a moment and check if the water really comes out hot before replacing the part.

• 02

  The burner ignites and sounds like the boiler is working, but the radiators do not heat up at all.

  Cause: The motor has not moved the valve to the heating side, so the hot water circulates only through domestic hot water.

  Check that the circulator is working and that there is no air in the circuit before blaming the valve.

• 03

  The valve seems to be stuck in the same position, no matter what happens.

  Cause: The motor shaft has become uncoupled from the valve body or the gear is broken.

  Check if the motor moves, even a little, when requesting the service change; if it doesn't move at all, the problem is electrical.

• 04

  The motor makes no noise or movement when it should switch service.

  Cause: The motor is not receiving power or its winding is broken, so it does not generate any attempt to rotate.

  Check that the motor connector is properly fitted and free of corrosion before declaring the part faulty.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval S5720600 three-way valve.

Catalogue reference

S5720600

Uniclima internal SKU

MV3VSDIC35E

Brand

Saunier Duval

Type of part

3-way valves

Units in stock

3 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

voltage

220V-240V

frequency

50Hz

internal code / thermal class

T70

batch/series

3999 152

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval F 28 E Manual (PDF) Document © Saunier Duval, provided as a technical reference.
