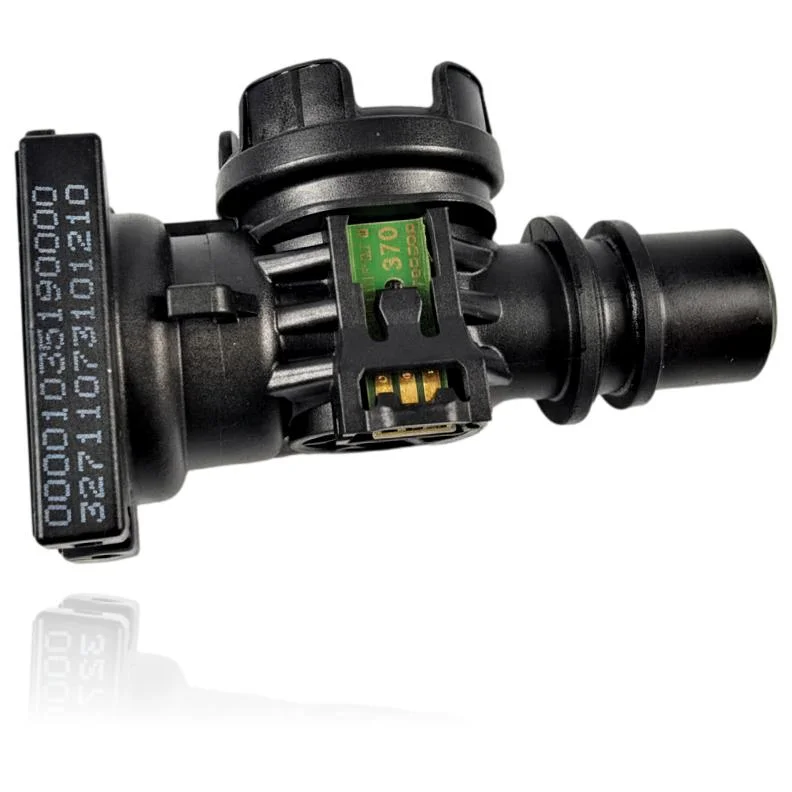

Saunier Duval Isofast F 35 E flow meter Ref. S5720200

Saunier Duval boilers compatible with reference S5720200

Flow meter with reference S5720200. 33 confirmed compatibilities: ThemaClassic C24E and ThemaClassic C25E.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. S5720200 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference S5720200. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis in the flow meter S5720200

The flow meter detects the passage of water to activate the domestic hot water. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  With the hot water tap fully open, the flow is weak only when requesting hot water, not with cold water.

  Cause: There is limescale buildup inside the body of the sensor that narrows the water flow.

  Compare the pressure in a cold water tap with that of hot water; if it only decreases in hot water, the restriction is in the sensor.

• 02

  Every time you turn on the tap, the burner takes several more seconds to ignite.

  Cause: The detector requires more flow than normal to close the contact, which indicates that the turbine is worn out.

  Open the tap suddenly and at high flow; if the delay is significantly reduced, the part is losing sensitivity.

• 03

  The boiler does not enter domestic hot water mode even with the tap fully open, although it works well in heating mode.

  Cause: Without a flow signal from the detector, the control unit does not know that there is a demand for domestic hot water and does not activate the burner.

  Test more than one tap in the house; if none of them activates the domestic hot water mode, first isolate whether it is the sensor or the control board.

• 04

  From time to time, the boiler starts heating water on its own, without anyone having opened a tap.

  Cause: The detector may get stuck indicating water flow even when there is none, due to wear or dirt in the turbine.

  Close all the hot water shut-off valves and check if it still starts; first rule out a leak in the installation.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval S5720200 flow meter

Catalogue reference

S5720200

Uniclima internal SKU

CSDIF35E

Brand

Saunier Duval

Type of part

Flow detectors

Units in stock

7 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval Thematek S F24E Manual (PDF) Document © Saunier Duval, provided as a technical reference.
