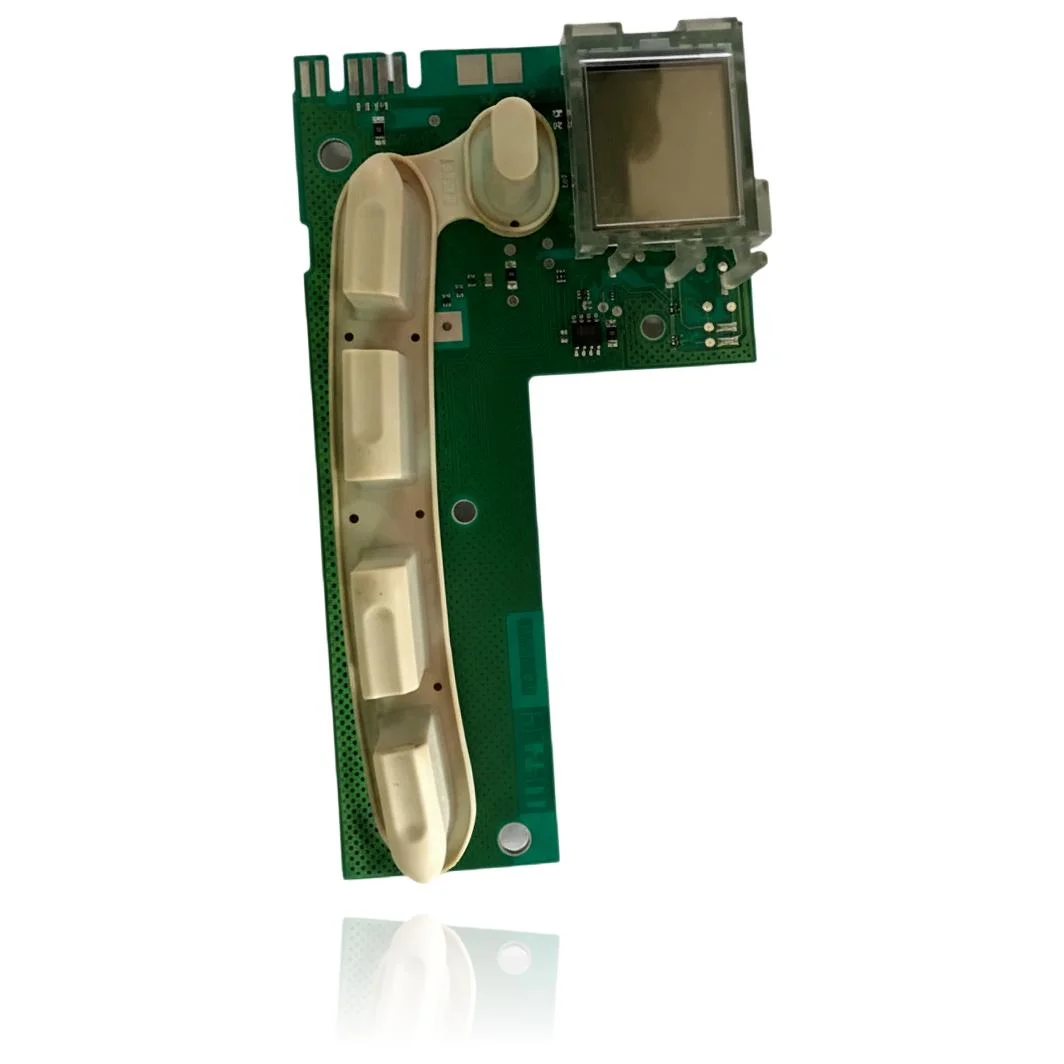

Saunier Duval ThemaClassic C 25 E Interface PCB Ref. S1062000
Refurbished Saunier Duval PCBs (control boards)

Saunier Duval ThemaClassic C 25 E Interface PCB Ref. S1062000

The Saunier Duval ThemaClassic C 25 E Interface PCB is a component that controls the ignition, burner modulation, pump, and safety features of the boiler. If it fails, it can cause the boiler not to start, to lock out, or to operate erratically, displaying the fault code F5: Overheating. This part is compatible with the ThemaClassic F 25 E and Isotwin F 28 EA models, among others. A technician must confirm through diagnosis whether it needs to be replaced when operational faults are present or when the mentioned symptoms are detected.

Type of part
PCBs (control boards)
Status
Refurbished
Catalogue reference
S1062000
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

Saunier Duval boilers compatible with reference S1062000

PCB with reference S1062000. Three confirmed compatibilities: ThemaClassic F 25 E and ThemaClassic C 25 E.

Verified compatibility

Boiler modelFamilyVerification
Saunier Duval ThemaClassic F 25 EThemaClassicVerified
Saunier Duval ThemaClassic C 25 EThemaClassicVerified
Saunier Duval Isotwin F 28 EAIsotwinVerified

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if ref. S1062000 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

  1. Find the reference printed on the installed part and check whether it matches the catalogue reference S1062000. If it is not visible, do not identify the part from its shape alone.
  2. Check the full boiler model on its data plate and look for it in the model associations on this page.
  3. Compare the connections and physical body with the original part before installation.
  4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Diagnosis and fault codes

Symptoms that require diagnosis on the PCB S1062000

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

  • 01

    The LCD screen does not display any digits even though the boiler is powered.

    Cause: The interface board controls the LCD screen; if it fails, the boiler may operate but does not display information.

    Check if the boiler ignites and heats normally even though the display is off. If so, the problem lies in the interface.

  • 02

    The rotary control does not change anything no matter how much you turn it.

    Cause: The rubber control activates an internal encoder; if it wears out or gets dirty, it turns but does not send the signal to the electronics.

    Clean the control shaft and test it slowly in both directions before replacing the PCB.

  • 03

    The screen flickers, turns off by itself, or displays incomplete digits.

    Cause: A loose connection between the interface board and the main board can cause interruptions in the power supply or video signal.

    Check the connector that joins both PCBs, as it may loosen due to vibrations.

Fault codes Saunier Duval that require diagnosis

CodeFaultTechnical checks
F5OverheatingThe boiler stops for safety reasons when it detects overheating. This can happen if the PCB is not functioning properly and does not accurately detect the temperature. Check the condition of the PCB, as a malfunction can cause this issue.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Data sheet for the Saunier Duval S1062000 PCB.

Catalogue reference
S1062000
Uniclima internal SKU
MODTHC25E
Brand
Saunier Duval
Type of part
PCBs (control boards)
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days
Documentation

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

Frequently asked questions

Frequently asked questions about the PCB S1062000

Does this interface PCB work for an Isotwin F 28 EA?
Yes, the Isotwin F 28 EA is listed among the boilers compatible with this part.
Does this PCB have a display or just the rotary control?
It features both an LCD screen and a rubber rotary control on the same front face, the only one visible in the photos.
Is the PCB the same for the Isotwin C 24 EA and the Isotwin F 24 EA?
Yes, both variants, C and F, in 24 and 28 EA, are on the list of boilers compatible with this part.
