Grundfos UP 15-60 AO pump Saunier Duval – Ref. 59906411
Refurbished Saunier Duval Saunier Duval Grundfos

Grundfos UP 15-60 AO pump Saunier Duval – Ref. 59906411

Bomba de circulación de calefacción con aplicación registrada para Saunier Duval Themafast F24E y Thema Classic F24E. La unidad lleva el tipo UP 15-60 AO y 105 W. La relación con el motor S1005200 requiere comprobación: aparecen datos de 30 W para Thema AS posteriores a 1993 y variantes UP 15-50 A0 de 85 W o sin potencia indicada, que no coinciden con los 105 W de esta unidad. Compara la etiqueta de tu bomba antes de comprar.

Type of part
Saunier Duval
Status
Refurbished
Catalogue reference
59906411
Warranty
1 year
VAT included OUT OF STOCK
Compatibility

compatible with reference 59906411

Saunier Duval with reference 59906411. Two confirmed compatibilities: Themafast F24E and Thema Classic F24E.

Proven compatibility

Boiler modelFamilyVerification
Saunier Duval Themafast F24ESaunier DuvalContrasted
Saunier Duval Thema Classic F24ESaunier DuvalContrasted

Can't see your model or have questions? The printed reference takes precedence. How to check it ·

Guide

How to check if reference 59906411 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

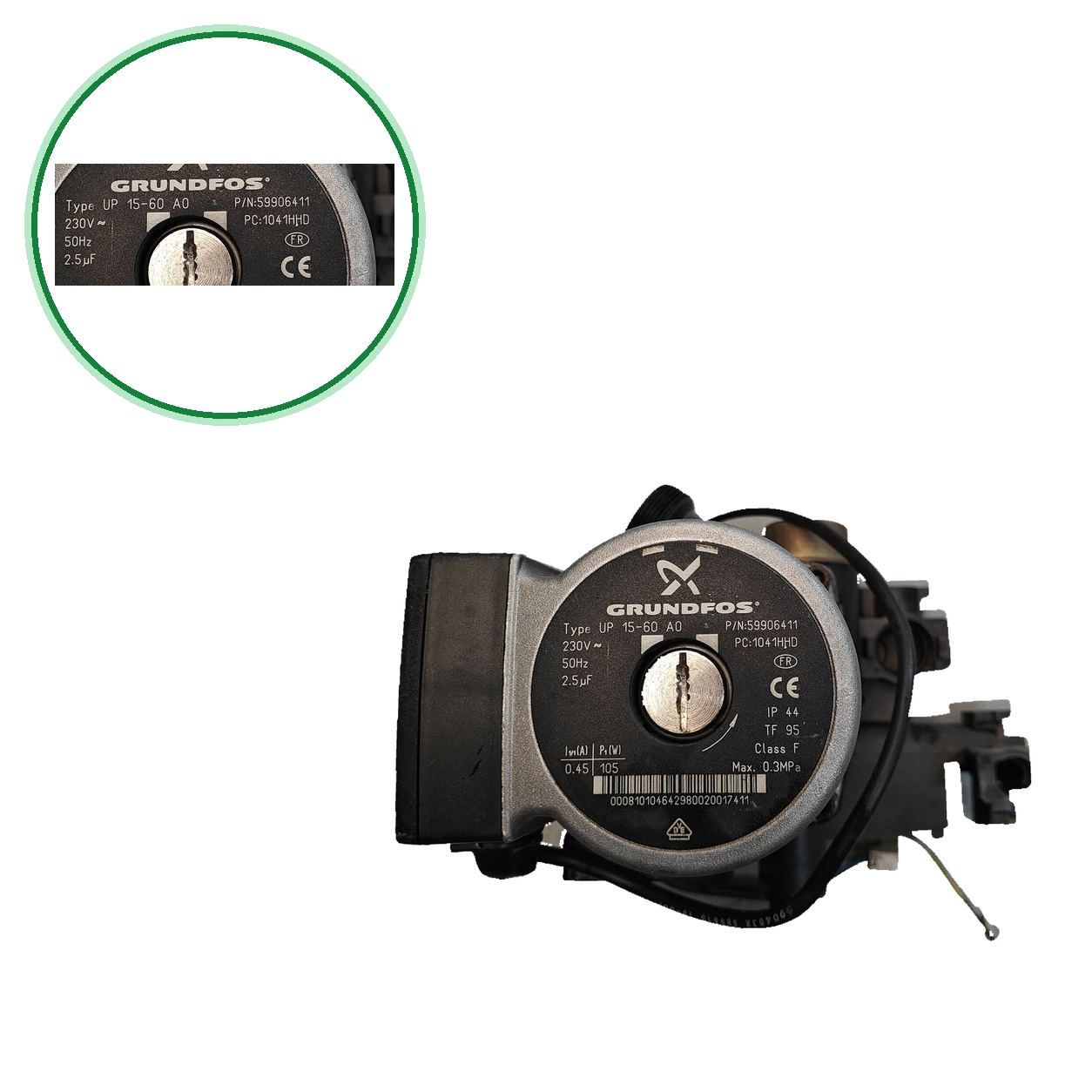

  1. Check the label on your pump motor: it should say Grundfos UP 15-60 AO and the number 59906411. The PC 1041HHD is not the reference.
  2. Check the power: this one gives 105 W and 0.45 A. If yours says UP 15-50 A0 or indicates 30 W or 85 W, it is a different pump.
  3. Note the exact model of your boiler, which appears on its rating plate.
  4. If your boiler is the Themafast F24E or the Thema Classic F24E, this pump has already been confirmed. If it is another model, please send us a photo of your pump's label and another of the boiler's PCB from the Contact section, or call us at 911 17 77 77.
Diagnosis and fault codes

Symptoms that require diagnosis in the Saunier Duval 59906411

Common symptoms and faults

  • 01

    The radiators do not heat up even though the boiler turns on.

    Cause: Check the pressure on the manometer and bleed the air. If it remains the same, the pump may not be moving the water.

  • 02

    Noise or vibration in the pump area.

    Cause: Bleed the circuit, because the air also makes noise. If it continues, have a technician check the pump.

  • 03

    The pump does not start after the summer.

    Cause: The rotor may be stuck. A technician can try to free it before replacing it.

  • 04

    Water under the pump or at the base of the boiler.

    Cause: Dry the area and check if it starts to leak again from the pump body.

  • 05

    The boiler locks out due to lack of circulation.

    Cause: A technician must check if the pump is running and receiving 230 V when the boiler requests heating.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Technical data

Saunier Duval 59906411

Catalogue reference
59906411
Uniclima internal SKU
BCTC24E
Brand
Saunier Duval
Type of part
Saunier Duval
Units in stock
0 units
Status
Refurbished
Warranty
1 year
Shipping
Delivery time shown at checkout
Return
14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Type indicated on the PCB
UP 15-60 AO
Commercial reference (P/N)
59906411
Production Code (PC)
1041HHD
Family construction
Wet rotor; UP family single speed
Voltage
230 V~
Frequency
50 Hz
Condenser
2.5 µF
Current I1/1
0.45 A
Power P1
105 W
Degree of protection
IP44
Thermal classification
TF95
Insulation class
F
Maximum pressure indicated
0.3 MPa (3 bar)
Verified data — Pump
Grundfos UP 15-60 AO
Verified data — P/N
59906411
Verified data — Power supply
230 V ~ · 50 Hz
Verified data — Power (P1)
105 W
Verified data — Current (I1)
0.45 A
Verified data — Condenser
2.5 µF
Verified data — Protection
IP44 · class F
Verified data — Water temperature
Up to 95 °C (TF95)
Verified data — Maximum pressure
0.3 MPa (3 bar)
Technical sheet: Manufacturer of the component
Grundfos
Technical sheet: Type indicated on the PCB
UP 15-60 AO
Technical sheet: Commercial reference (P/N)
59906411
Technical sheet: Production code (PC)
1041HHD
Technical sheet: Construction of the family
Wet rotor; UP family single speed
Technical sheet: Voltage
230 V~
Technical sheet: Frequency
50 Hz
Technical sheet: Condenser
2.5 µF
Technical sheet: I1/1
0.45 A
Technical sheet: Power P1
105 W
Technical sheet: Degree of protection
IP44
Technical sheet: Thermal classification
TF95
Technical sheet: Insulation class
F
Technical sheet: Maximum indicated pressure
0.3 MPa (3 bar)
Pending applications to verify
Por confirmar: • Thema Classic F 24 E (almacén): (UK) para la S1005200, pero y la describen como UP 15-50 A0 (85 W ). CONFLICTO con la etiqueta (UP 15-60 AO, 105 W). UK añade la ThemaClassic Plus F 24 E. • Themafast F 24 E (almacén): («además válida para» de la S1005200). La Themafast Condens F 24 E lleva otra bomba: 0020087276 = HB15/6.7-2. • Themaclassic C 24 E y F 25 E:, para la S1005200. • Themafast C 24 E (título de la ficha de Uniclima):, para la S1005200. • Resto de la lista para la S1005200 (Themaclassic C 25 E, C AS y F AS 24/25 E, Thematek): cada una.
Registered equivalents and substitutions
No es la misma pieza que la #19. La #19 es la S1005200 = Grundfos UP 15-50 A0 (P/N 59994584, 85 W, 0,38 A, 2 µF). Esta es la UP 15-60 AO (P/N 59906411, 105 W, 0,45 A, 2,5 µF): misma familia y mismo formato de placa (3 bar, IP44, TF95, clase F), pero otro modelo y otra potencia. Sin confirmar: que sean intercambiables. Uniclima vende esta bomba con la referencia S1005200, pero y dan la S1005200 como UP 15-50 A0.: S1005200 descatalogada y sustituida por 0010034152 (como en la #19). 0020087276: Designación registrada: HB15/6.7-2 (Themafast Condens F 24 E); solo Uniclima la da como UP 15-60 A0 (P/N 59996114).
Before purchasing
  • In the official manual of the Themaclassic F24E, the fault "no heating" (only F24E) refers to the 230 V PCB and the main one, without pump operation.
  • Not compatible or excluded: Themaclassic C 24 E and F 25 E — It uses another one: S1005200 (UP 15-50 A0 according to)
  • Not compatible or excluded: Themaclassic C 25 E, C AS 24 E, C AS 25 E, F AS 24 E and F AS 25 E — It uses another one: S1005200
  • Not compatible or excluded: Themafast Condens F 24 E — Uses another one: 0020087276 (HB15/6.7-2)
  • Do not confuse: S1005200 / S10052 — Pump motor provided for the Themaclassic and Themafast F 24 E. It is described as Grundfos UP 15-50 A0 — Another power: 85 W according to and 30 W according to; this one gives 105 W.
  • Do not confuse: 0020087276 · HB15/6.7-2 — Pump for the Themafast Condens F 24 E, according to — Another model
  • The Themafast F24E and Thema Classic F24E boilers are confirmed. The motor S1005200 (S10052) is provided for both by Vaillant Group; for the Thema Classic F24E, the official manual also describes it as UP 15-50 A0 of 85 W and as UP 15-50 A0, without power; and labels it 30 W. Without additional confirmation, it is cross-referenced with P/N 59906411.
Frequently Asked Questions

Frequently asked questions: saunier duval 59906411

Is it suitable for my boiler?
Yes, if your boiler is a Saunier Duval Themafast F24E or Thema Classic F24E: Confirmation registered: this pump is for both. If your boiler is different, send us a photo of its rating plate and the label of your pump from Contact, or call us at 911 17 77 77, and we will let you know if it is your spare part.
Is it the same pump as the S1005200?
We have not confirmed it, and they describe the S1005200 as a Grundfos UP 15-50 A0 (85 W); and label that code as 30 W. This is a UP 15-60 AO of 105 W. Without additional confirmation, they consider them interchangeable.
Do I have the right pump for my Themaclassic F 24 E?
Yes. Confirmation registered: this pump for the Thema Classic F24E. The motor S1005200, with 30 W, is suitable for that boiler. It is described as a UP 15-50 A0 of 85 W and as a UP 15-50 A0, without power. Check that your label says UP 15-60 AO and 59906411; if in doubt, send us a photo via Contact.
What electrical data does it have?
According to its label, it operates at 230 V and 50 Hz, consumes 105 W and 0.45 A, and has a capacitor of 2.5 µF.
What is the official Saunier Duval code for the pump motor of these boilers?
The official manual of the Themaclassic F24E lists the "Pump head" as S10052; for the Thematek F 24 E, the "Moteur pompe" as S1005200. Vaillant Group provides it for both boilers, and for the Thema Classic F24E. It is the Saunier Duval code for the pump motor, not the P/N 59906411 from Grundfos: without additional confirmation, both are interchangeable.
How do you change the pump in a Thema Classic F24E?
The official manual for the Themaclassic F24E describes the replacement of the head: only the heating circuit is drained, the right side panel is removed if necessary, the four screws are loosened, the head is removed, and the electrical cable is connected to the spare part.
What is the code 1041HHD on the label?
It is the production code (PC), not a spare part reference. Identify the pump by the type UP 15-60 AO and the P/N 59906411.
What models are listed as compatible?
THEMAFAST F24E and THEMA CLASSIC F24E, as validated.
What code identifies the pump?
Grundfos UP 15-60 AO, P/N 59906411. PC 1041HHD is kept as a separate production code.
Is the OEM S1005200 equivalent to this pump?
A crossover connecting S1005200 with P/N 59906411 has not been found. The Vaillant list associates it with boiler models, but does not identify this specific Grundfos.
What pressure corresponds to 0.3 MPa?
It corresponds to 3 bar and is the maximum pressure indicated for the pump, not the recommended filling pressure of the installation.
Entrega calculada por destino Delivery time shown at checkout
1-year warranty reviewed and tested
14-day return uninstalled parts
Technical support we verify your model
Grundfos UP 15-60 AO pump Saunier Duval – Ref. 59906411
