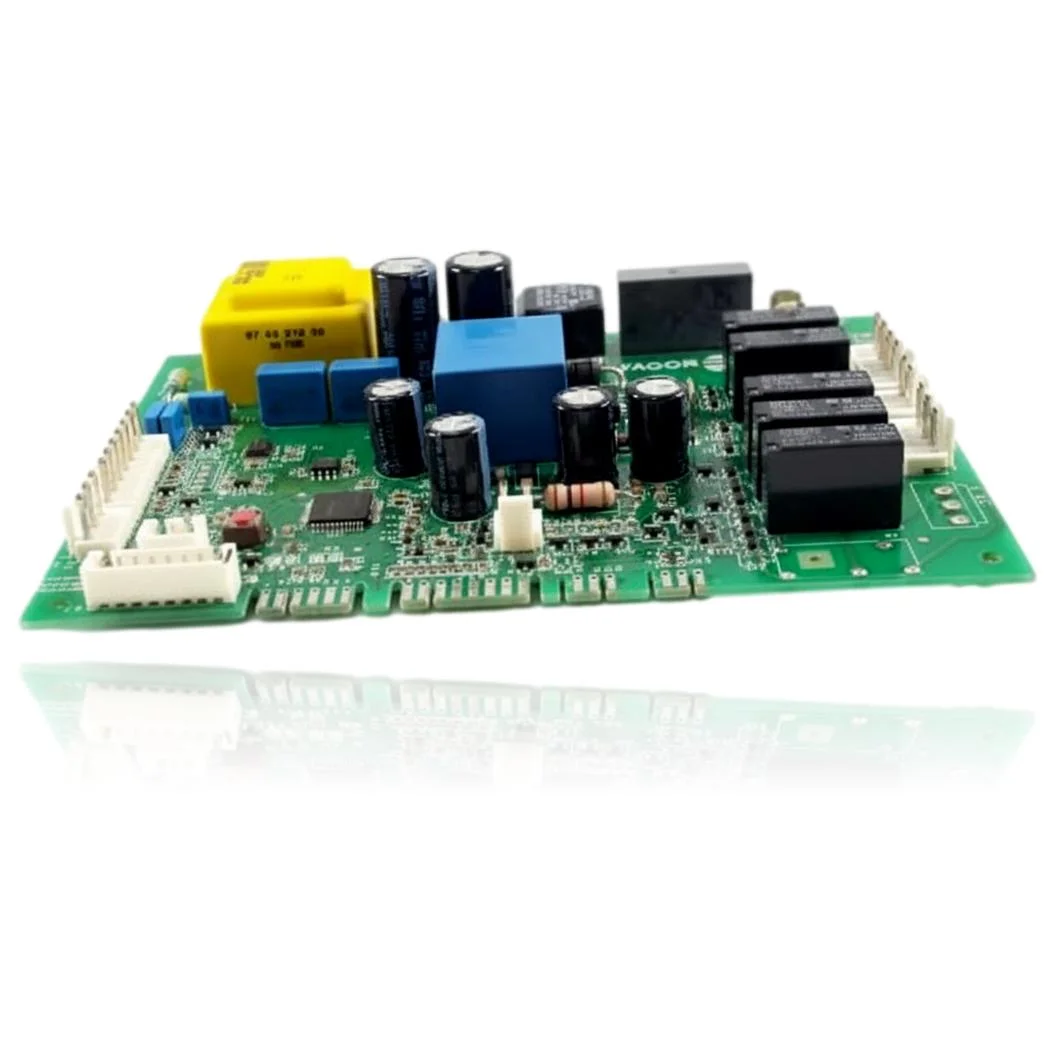

Main PCB Fagor Contract Mini CE 24E Ref. N03G007M2

Fagor boilers compatible with reference N03G007M2

PCB with reference N03G007M2. Six confirmed compatibilities: FA-23E and FEB-23E/1.

Proven compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. N03G007M2 is the part for your boiler

What determines it is not the boiler model, but the reference printed on the part you already have installed.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference N03G007M2. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms and faults that the PCB N03G007M2 resolves.

The PCB controls the ignition, modulation, and safety features of the boiler. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  The boiler shows no signs of life: no indicators, no display, no noise when connected.

  Cause: The PCB distributes power to everything else; if its input stage or the fuse has failed, the rest of the equipment will be without power.

  Measure with a multimeter that 230V is reaching the terminals N and L before declaring the PCB dead.

• 02

  You can hear the ignition attempt, but the burner doesn't ignite.

  Cause: The PCB controls the spark sequence and gas opening; if that signal does not come out clean, the burner will not start even if there is gas.

  Check the ignition electrode and its wiring, and ensure a clear spark is visible before replacing the PCB.

• 03

  The boiler starts up and shuts off on its own after a few minutes, without always repeating the same pattern.

  Cause: A fatigued weld or a degraded component on the PCB can cause micro-interruptions in the control signal.

  First, rule out that another component (pressure switch, NTC sensor) is causing an intermittent fault before attributing it to the PCB.

• 04

  The room thermostat has no effect: whether you raise or lower the temperature, the boiler does its own thing.

  Cause: The heat demand input read by the PCB may be damaged or not receiving the signal properly.

  Measure the continuity of the thermostat cable and ensure that the jumper in the corresponding terminals is properly connected.

Fault codes for Fagor that this part resolves.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Fagor N03G007M2 PCB.

Catalogue reference

N03G007M2

Brand

Fagor

Type of part

PCBs (control boards)

Units in stock

1 unit

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Data read on the part and in the manufacturer's documentation

What we have not been able to verify does not appear here.

Supply voltage

230V 50Hz
