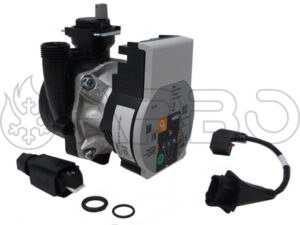

Wilo Circulating Pump Sime Murelle EV HE 25 30 T System Ref. 6281895
If you notice cold radiators, strange noises, or overheating in your heating system, you may need the Wilo Sime Murelle EV HE 25 30 T System Circulating Pump. This pump is responsible for moving water through the heating circuit, ensuring proper heat distribution. When it fails, it can cause blockages due to lack of circulation and the fault code ALL 09: Water circulation anomaly. It is compatible with several boilers from the Sime brand, such as the Murelle EV HE 12 T System, 20 T System, 25 T System, and 30 T System models, among others. It is recommended to replace it when you experience symptoms of malfunction or related errors.
VAT included
Consult via WhatsAppSime boilers compatible with reference 6135927 6281895
Circulating pump with reference 6135927 6281895. Four confirmed compatibilities: Murelle EV HE 12 T System and Murelle EV HE 20 T System.
Proven compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Sime Murelle EV HE 12 T System | Sime | Contrasted |
| Sime Murelle EV HE 20 T System | Sime | Contrasted |
| Sime Murelle EV HE 25 T System | Sime | Contrasted |
| Sime Murelle EV HE 30 T System | Sime | Contrasted |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if the part number 6135927 6281895 is the correct one for your boiler.
What determines it is not the boiler model, but the reference printed on the part you already have installed.
- Find the reference printed on the installed part and check whether it matches the catalogue reference 6135927 6281895. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms and faults that the circulation pump 6135927 6281895 solves.
The circulation pump circulates the water in the heating circuit. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
The boiler takes a long time to heat the house even though the burner is working well.
Cause: The pump is not moving enough water, and the hot water is not reaching the radiators in time.
Check if the pump is warm and vibrating to the touch: if it is cold and not vibrating, it is not circulating.
- 02
There is a noticeable vibration or rattling noise in the hydraulic module.
Cause: The rotor may be rubbing while rotating or there is trapped air in the pump.
Bleed the air through the bleed screw of the pump before considering the replacement.
- 03
The pump does not start and there is no indication that it is turning, even though the boiler is requesting heating.
Cause: The shaft may be blocked, especially if the boiler has not been used for a long time.
Try to manually free the shaft with the central screw of the rotor, with the boiler disconnected.
- 04
The heating works intermittently: it heats up a bit and then stops by itself.
Cause: An irregular circulation due to a faulty pump causes the control board to shut down for safety.
Check that there is no air in the circuit and that the installation pressure is within its range before changing the pump.
Fault codes for Sime that this part resolves.
| Code | Fault | Diagnosis and solution |
|---|---|---|
| ALL 09 | Water circulation anomaly (lack of circulation in the primary circuit). | If the circulating pump is faulty or blocked, the flow rate drops and the flow switch detects insufficient circulation, activating ALL 09; check the rotor rotation, power supply, and pump consumption. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Data sheet for the circulator pump Sime 6135927 6281895
- Catalogue reference
- 6135927 6281895
- Brand
- Sime
- Type of part
- Pumps
- Units in stock
- 1 unit
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- 1-2 business days
- Return
- 14 days
Data read on the part and in the manufacturer's documentation
What we have not been able to verify does not appear here.
- Manufacturer
- Wilo
- Voltage
- 231V
- Frequency
- 50Hz
- Marked
- CE, UKCA
Manuals and technical documentation
Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.
- Sime Murelle EV HE 25 T System Manual (PDF)Document © Sime, provided as a technical reference.
Frequently asked questions about the circulator pump 6135927 6281895
Who manufactures the pump for the Sime Murelle EV HE 25 30 T System?
Is this Wilo pump Ref. 6281895 suitable for a Sime HE 35 R?
What voltage and frequency does the pump of the Sime Murelle EV HE 20 System use?
When should this pump be replaced in the Murelle EV HE 35?
