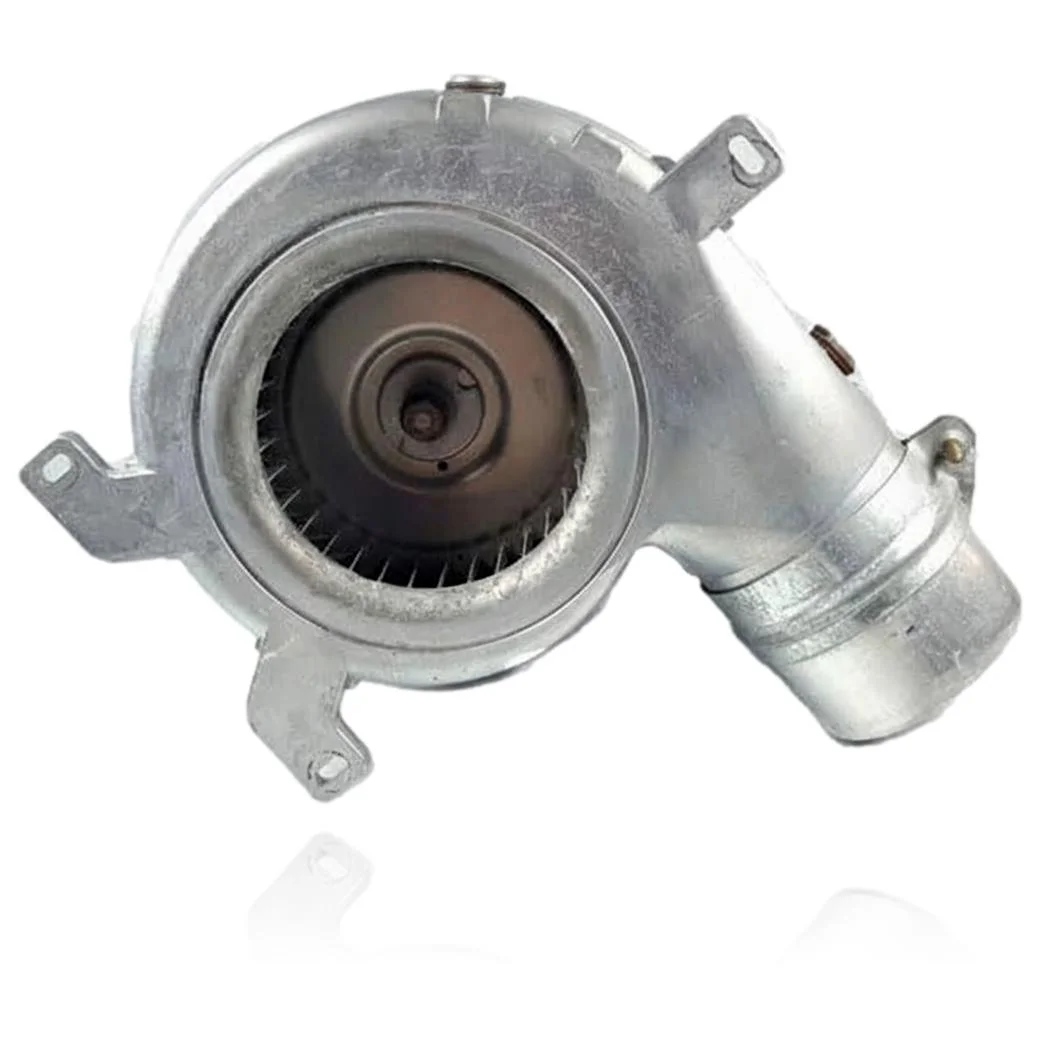

Fagor Super Compact Boiler Fan Extractor FE24E Ref. AS0013067
When the heating starts, the Fagor Super Compact FE24E Boiler Fan Extractor (Ref. AS0013067) activates to expel combustion gases and generate the necessary draft. If this part fails, the boiler will not ignite or will lock out, displaying the fault code F-2: Air pressure switch does not detect air circulation. It is compatible with models such as FE24E, FE24E1N, and FEB24AR, among others in the Fagor FE / FEB / CE 24 range. A technician must confirm through diagnosis whether the fan needs to be replaced when you notice that the boiler does not start correctly or stops due to flue gas evacuation issues.
- Type of part
- Extractor fans
- Status
- Refurbished
- Catalogue reference
- AS0013067
- Warranty
- 1 year
Fagor boilers compatible with reference AS0013067
Extractor with reference AS0013067. Four confirmed compatibilities: FE24E and FE24E1N.
Verified compatibility
| Boiler model | Family | Verification |
|---|---|---|
| Fagor FE24E | Fagor FE / FEB / CE 24 (24 kW sealed atmospheric) | Verified |
| Fagor FE24E1N | Fagor FE / FEB / CE 24 (24 kW sealed atmospheric) | Verified |
| Fagor FE24NOX | Fagor FE / FEB / CE 24 (24 kW sealed atmospheric) | Verified |
| Fagor FEB24AR | Fagor FE / FEB / CE 24 (24 kW sealed atmospheric) | Verified |
Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.
How to check if ref. AS0013067 is the part for your boiler
The part reference, model, and equipment revision must be verified against the manufacturer's documentation.
- Find the reference printed on the installed part and check whether it matches the catalogue reference AS0013067. If it is not visible, do not identify the part from its shape alone.
- Check the full boiler model on its data plate and look for it in the model associations on this page.
- Compare the connections and physical body with the original part before installation.
- If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.
Symptoms that require diagnosis in the extractor AS0013067
The extractor evacuates the combustion gases with forced draft. These are the typical symptoms and what to do:
Common symptoms and faults
- 01
When requesting heating or hot water, the boiler does not start and remains on standby.
Cause: The control unit needs to confirm that the fan is running before opening the gas, and without that signal, it does not continue the ignition cycle.
Check if the fan spins, even for a moment, when calling for heat; if it remains stationary, the fault points there.
- 02
The air or flue fault code lights up on the display.
Cause: The extractor does not reach the speed that the pressure switch needs to give its start signal.
Before replacing it, check the exhaust duct to the outside for any obstruction, ice, or a nest that may be blocking the draft.
- 03
The boiler starts and shuts off almost immediately, repeatedly.
Cause: The extractor spins but remains below the minimum speed required for safety, and the control unit cuts off the gas.
With a multimeter, check that the correct current is reaching the fan during startup; if the current is good and the rotation is slow, the part is worn out.
- 04
Forced motor noise or strange buzzing when starting up.
Cause: The wear of the bearing or the accumulated dirt in the turbine causes the rotation to no longer be smooth.
With the boiler unplugged, turn the turbine by hand; if it is difficult to turn or makes a rubbing noise, confirm the diagnosis before ordering the part.
Fagor fault codes that require diagnosis
| Code | Fault | Technical checks |
|---|---|---|
| F-2 | Air pressure switch does not detect air circulation (or fault in the pressure switch itself); the boiler locks out. | Faulty extractor/fan or lack of flow does not generate the necessary depression and the pressure switch does not switch, triggering F-2; check power supply to the fan at start-up, free rotation/noise, and that the pressure switch changes state with the fan running. |
These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.
Fagor AS0013067 extractor datasheet
- Catalogue reference
- AS0013067
- Uniclima internal SKU
- EXTFF24E
- Brand
- Fagor
- Type of part
- Extractor fans
- Units in stock
- 7 units
- Status
- Refurbished
- Warranty
- 1 year
- Shipping
- Delivery time shown at checkout
- Return
- 14 days
Frequently asked questions about the extractor AS0013067
Is this fan extractor compatible with the boiler FEB24AR?
When should I replace the fan extractor of the boiler FE24E?
What is the reference for this Fagor boiler fan extractor?
How many models are compatible with this fan extractor?
What fault code is documented for this extractor?
