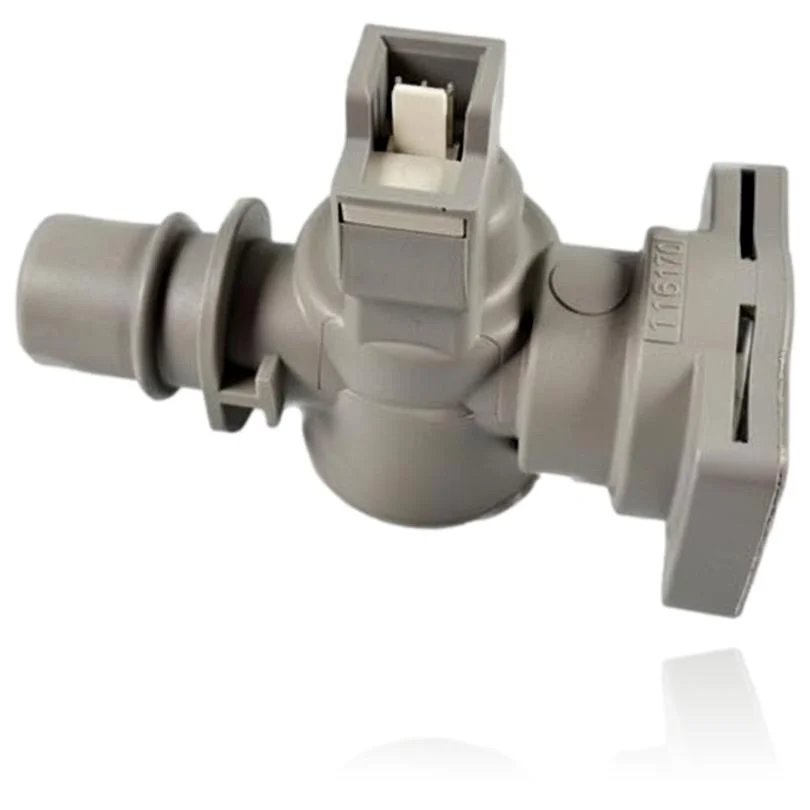

Saunier Duval Flowmeter Flow Detector Themafast C 24 E Ref. S5720200

Saunier Duval boilers compatible with reference S5720200

Flow meter with reference S5720200. 33 confirmed compatibilities: ThemaClassic C24E and ThemaClassic C25E.

Verified compatibility

Can't see your model or have questions? The printed reference takes precedence. How to check it · Send us a photo via WhatsApp.

How to check if ref. S5720200 is the part for your boiler

The part reference, model, and equipment revision must be verified against the manufacturer's documentation.

1. Find the reference printed on the installed part and check whether it matches the catalogue reference S5720200. If it is not visible, do not identify the part from its shape alone.
2. Check the full boiler model on its data plate and look for it in the model associations on this page.
3. Compare the connections and physical body with the original part before installation.
4. If anything is unclear, send us a photo of the marking via WhatsApp before placing your order.

Symptoms that require diagnosis in the flow meter S5720200

The flow meter detects the passage of water to activate the domestic hot water. These are the typical symptoms and what to do:

Common symptoms and faults

• 01

  You turn on the hot water tap and the boiler does not start the burner, as if it does not detect that water is flowing.

  Cause: The flow detector does not detect sufficient flow and does not send the signal to ignite.

  Open the tap fully and check the actual flow rate; if it is very low, check the inlet filter and the mains pressure.

• 02

  The hot water comes out in bursts, the burner cuts off and reignites several times in a row.

  Cause: The flow fluctuates right at the limit that the detector needs to keep the contact closed.

  Check if the pressure in the system drops when you use another tap or appliance at the same time.

• 03

  The boiler ignites the burner without anyone having opened any tap.

  Cause: The paddle or the micro switch of the detector gets stuck in the 'there is flow' position due to dirt or accumulated limescale.

  Disassemble the detector and manually check that the paddle rotates freely and returns to its resting position by itself.

• 04

  A warning related to low flow appears on the screen even though the tap is open and water is flowing.

  Cause: The internal contacts of the detector oxidize or do not close properly even though the water circulates normally.

  Clean the cold water inlet filter; it is the most common cause of this warning and prevents the need to replace the sensor.

These symptoms can have more than one cause. If your boiler displays a fault code, send it to us via WhatsApp along with a photo of the labeling, and we'll tell you if this is the part.

Data sheet for the Saunier Duval S5720200 flow meter

Catalogue reference

S5720200

Uniclima internal SKU

DFSTC24E

Brand

Saunier Duval

Type of part

Flow detectors

Units in stock

7 units

Status

Refurbished

Warranty

1 year

Shipping

Delivery time shown at checkout

Return

14 days

Part data and available documentation

Contrast the label codes, PCB, and revision with the installed part; they are not necessarily equivalent references.

Embossed marking (tab)

116170

Manuals and technical documentation

Official documentation of the boiler, useful for locating the part and cross-referencing the fault codes.

• Saunier Duval Thematek S F24E Manual (PDF) Document © Saunier Duval, provided as a technical reference.
